Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. If replacing the supercharger install the following:
    • Manifold vacuum source
    • Supercharger bypass valve
    • PCV valve
    • Throttle body

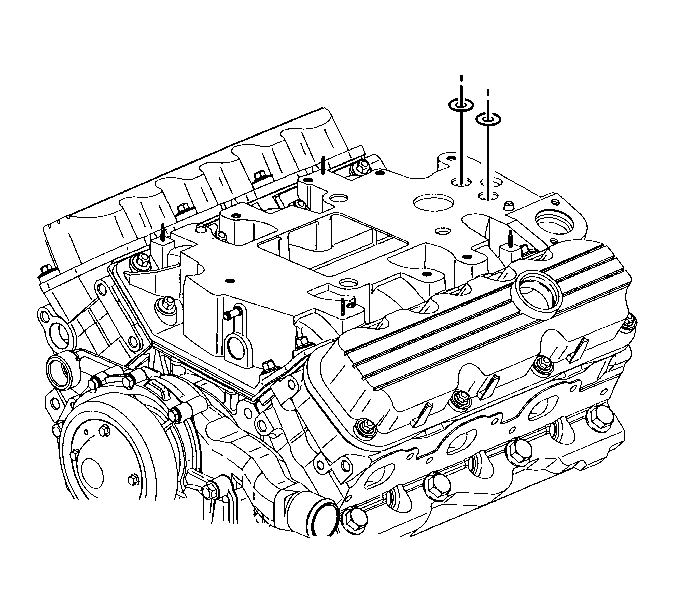

    2. Fig 1: Supercharger O-Ring Seals
    GM190547Courtesy of GENERAL MOTORS CORP.
  2. Install the new supercharger O-ring seals.

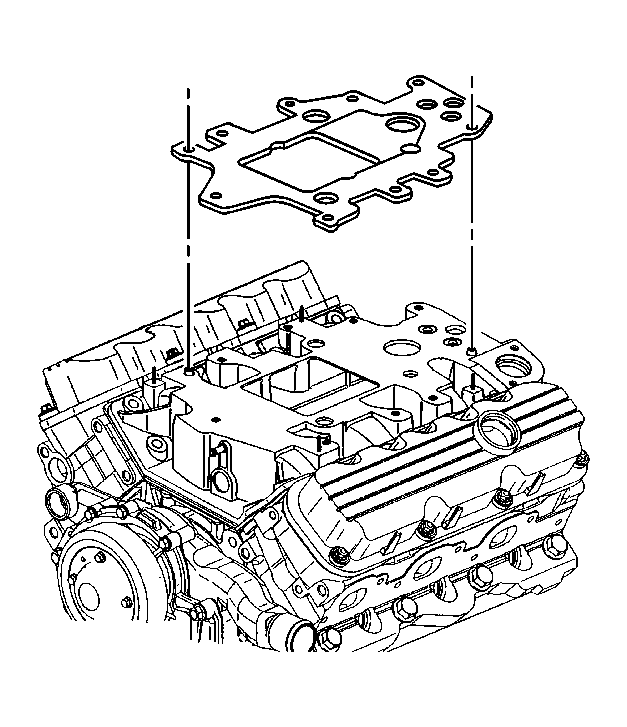

    3. Fig 2: Supercharger Gasket
    GM190548Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Do not use any sealer on the gasket.
  3. Install the new supercharger gasket.

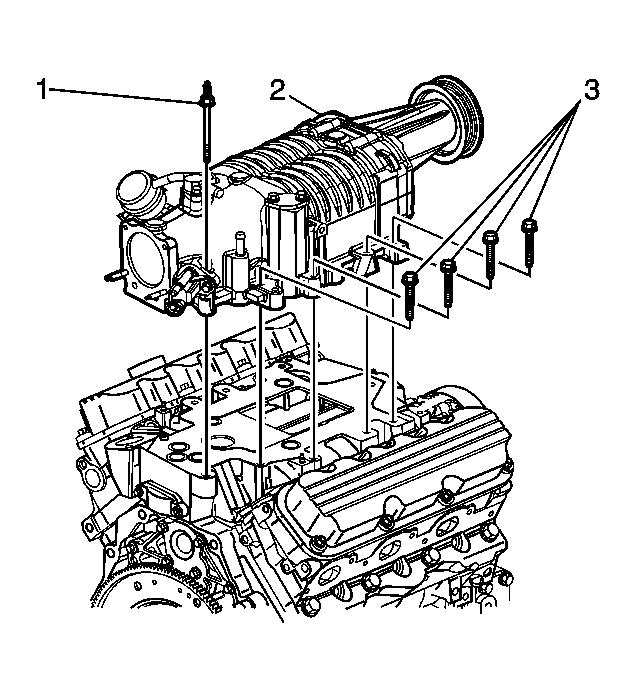

    4. Fig 3: Right Side Supercharger Bolts
    GM911157Courtesy of GENERAL MOTORS CORP.
  4. Install the supercharger.
  5. Install the right side supercharger bolts (1, 3).

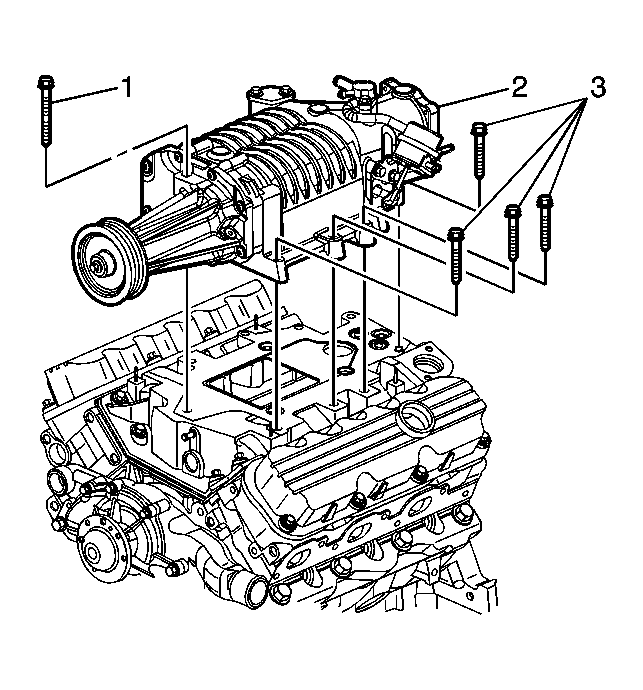

    6. Fig 4: Left Side Supercharger Bolts
    GM911155Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  6. Install the left side supercharger bolts (1, 3).

    Tighten:  Tighten the supercharger bolts starting from the center and working to the outside of the supercharger to 23 N.m (17 lb ft).

  7. Install the air cleaner intake duct. Refer to Air Cleaner Inlet Duct Replacement in Engine Controls - 3.8L.
  8. Connect the electrical connectors to following:
    • ETC
    • MAF/IAT sensor
    • EVAP purge valve
    • EGR valve
    • Supercharger bypass valve
  9. Connect the vacuum lines to the following:
    • Manifold vacuum source
    • Supercharger bypass valve
  10. Install the boost control solenoid. Refer to Boost Control Solenoid Replacement in Engine Controls - 3.8L.
    11. Fig 5: Removing/Installing MAP/BARO Sensor Bracket
    GM1210601Courtesy of GENERAL MOTORS CORP.
  11. Install the MAP and BARO sensor bracket.
  12. Install the MAP and BARO sensor bracket bolts.

    Tighten:  Tighten the bolts to 30 N.m (22 lb ft).

  13. Connect the vacuum hoses to the MAP sensor.
  14. Connect the MAP and the BARO sensor electrical connectors.
  15. Lightly coat the fuel injectors (3) with clean engine oil.
    16. Fig 6: Boost Control Solenoid
    GM910930Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Ensure the fuel rail is fully seated in the lower intake manifold assembly.
  16. Install the fuel rail assembly (1) to the lower intake assembly. Refer to Fuel Rail Assembly Replacement (L26) or Fuel Rail Assembly Replacement (L32) in Engine Controls - 3.8L (L32).
  17. Install the supercharger drive belt. Refer to Drive Belt Replacement (L26)  or Drive Belt Replacement (L32) .

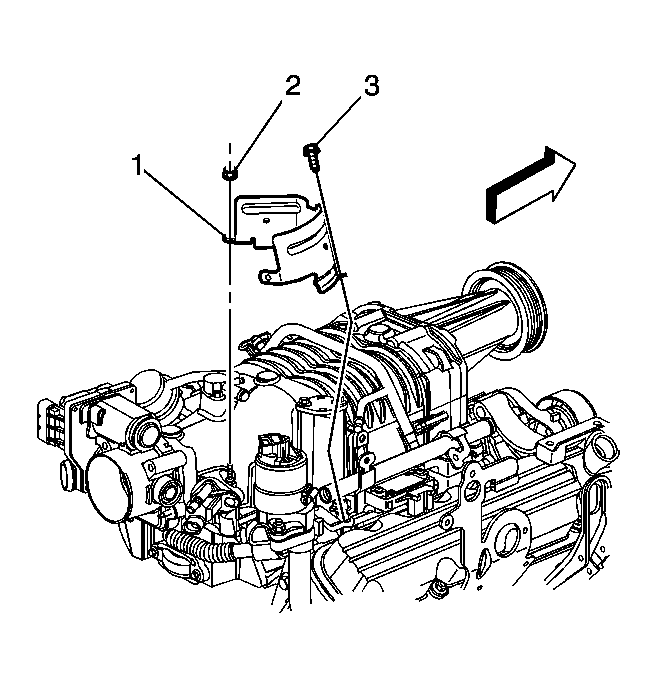

    18. Fig 7: EGR Valve Heat Shield, Nut & Bolt
    GM912661Courtesy of GENERAL MOTORS CORP.
  18. Install the EGR valve heat shield (1), nut (2) and the bolt (3).

    Tighten:  Tighten the nut and the bolt to 10 N.m (89 lb in).

  19. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (RPO LS4) or Battery Negative Cable Disconnection and Connection (RPOs L26/L32) in Engine Electrical.
  20. Inspect for fluid or vacuum leaks.
