Installation Procedure

WARNING: This page is about a different variant/trim than selected.

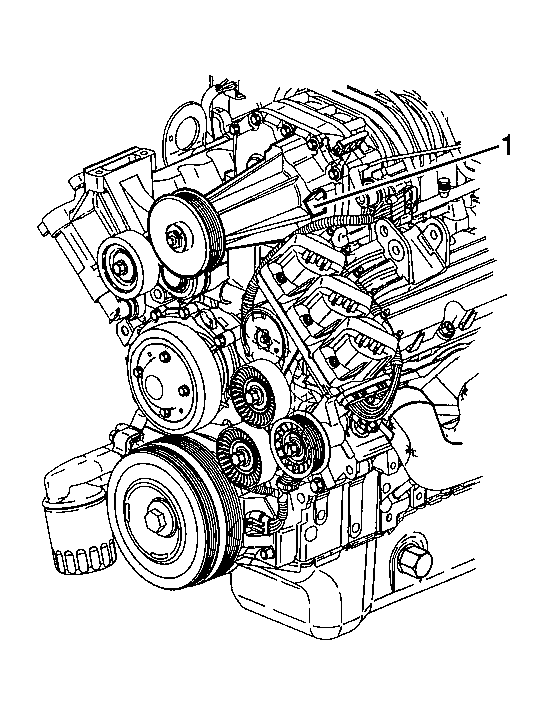

    Fig 1: Removing/Installing Supercharger Oil Level Plug
    GM327848Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Ensure the O-ring is in place on the plug. Install the oil plug (1).

    Tighten:  Tighten the oil plug to 10 N.m (89 lb in).

    2. Fig 2: Oil Fill Cap, Oil Fill Tube & Fuel Injector Sight Shield (L32)
    GM911153Courtesy of GENERAL MOTORS CORP.
  2. Install the fuel injector sight shield (1). Refer to Fuel Injector Sight Shield Replacement (L26)  or Fuel Injector Sight Shield Replacement (L32) .
