Installation Procedure

WARNING: This page is about a different variant/trim than selected.

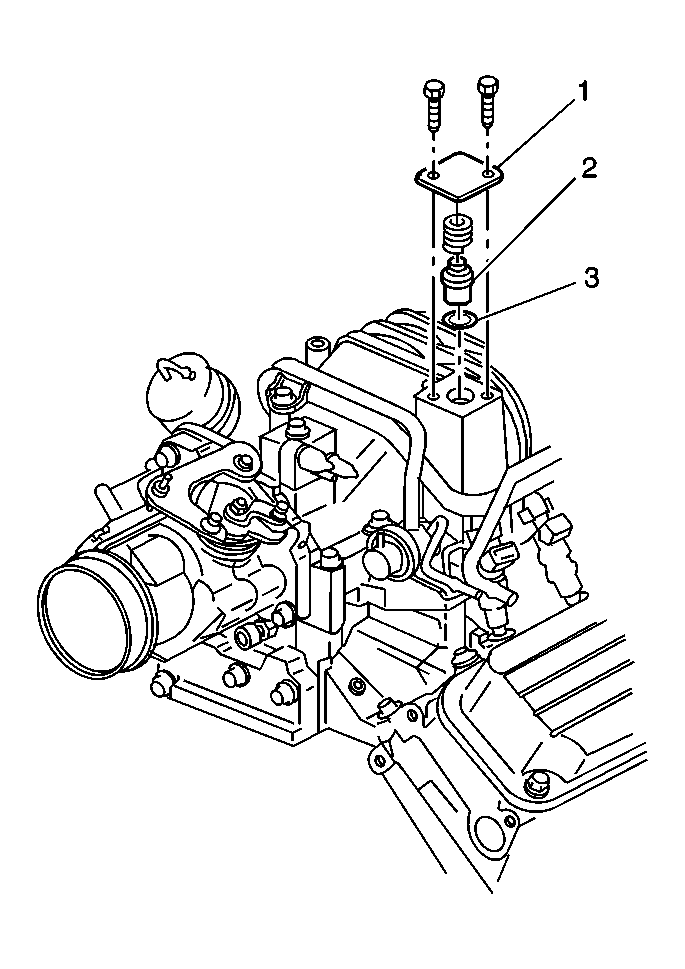

    Fig 1: PCV Valve, Access Cover & O-Ring
    GM12314Courtesy of GENERAL MOTORS CORP.
  1. Install the new O-ring (3), the spring and the PCV valve (2).
  2. Install the PCV valve access cover (1).
    3. NOTE: Refer to Fastener Notice .
  3. While holding down on the PCV valve access cover, install the access cover bolts.

    Tighten:  Tighten the bolts to 10 N.m (89 lb in).

  4. Install the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement (L26)  or Fuel Injector Sight Shield Replacement (L32) .
