Automatic Transmission Controls Schematics (L26, L32)

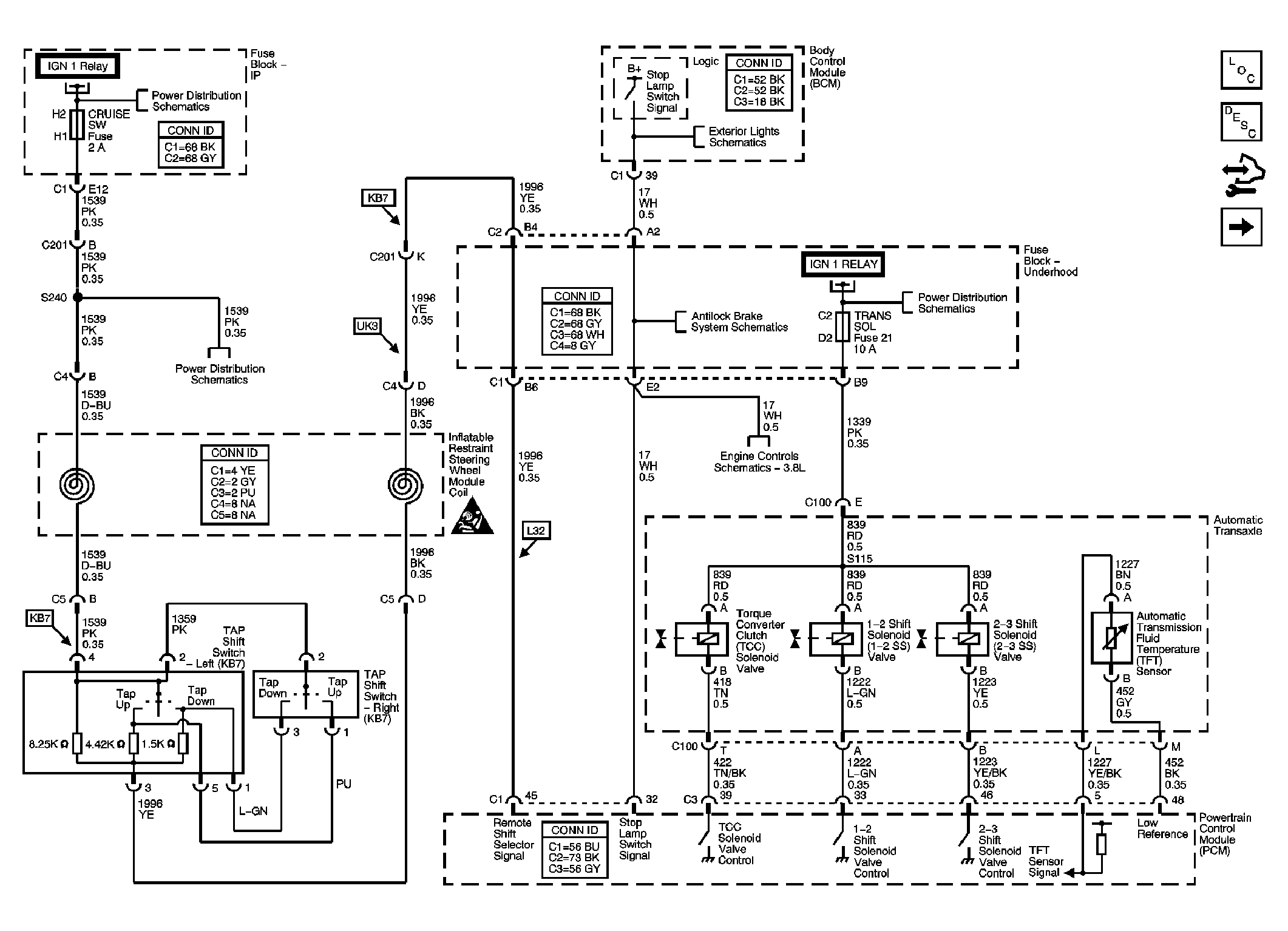

Fig 1: TAP Shift Switches, Stop Lamp Signal, TFT Sensor and TCC, Shift Solenoids

Courtesy of GENERAL MOTORS CORP.

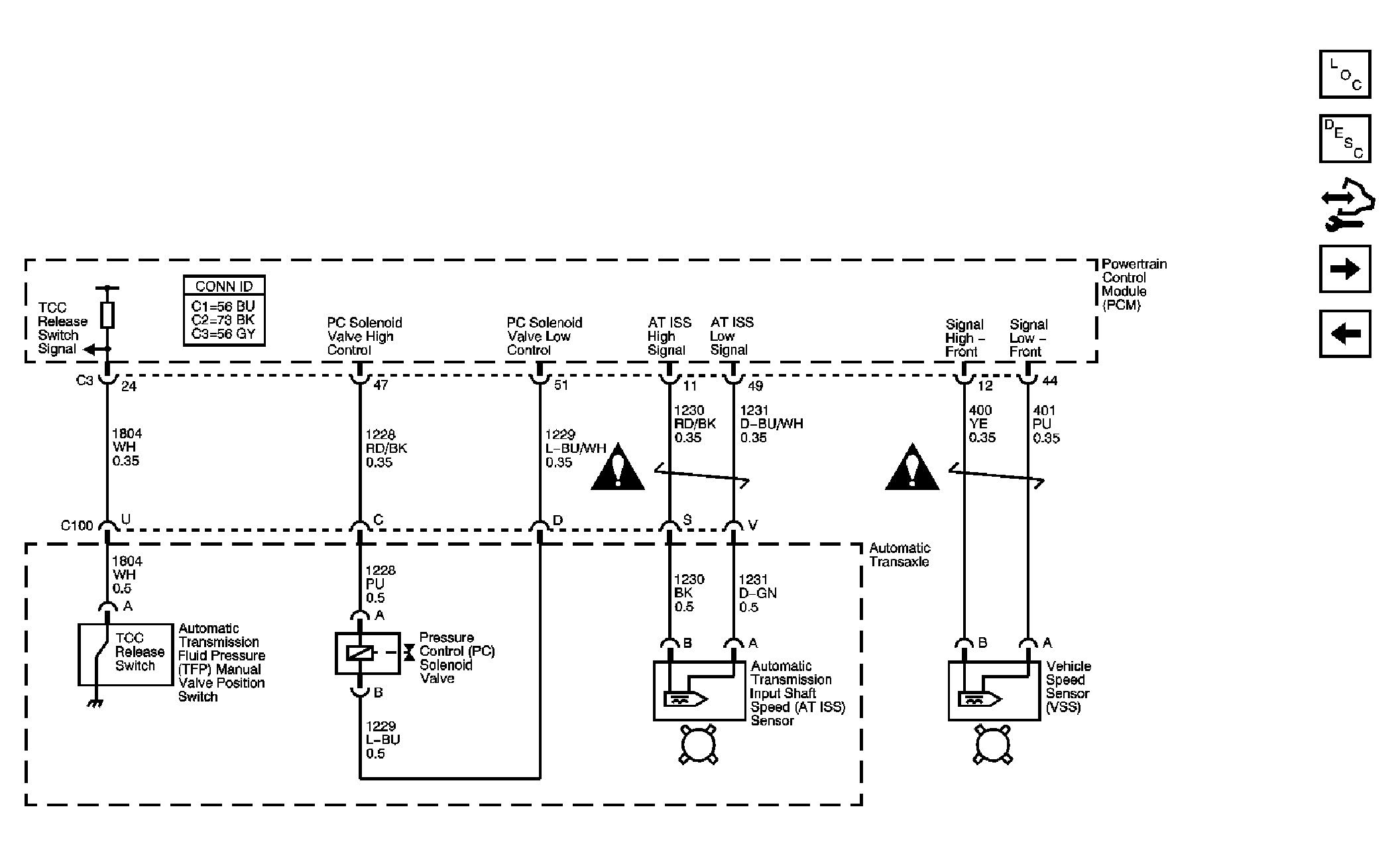

Fig 2: VSS and AT ISS Sensors, Pressure Control Solenoid Valve, and TCC Release Switch

Courtesy of GENERAL MOTORS CORP.

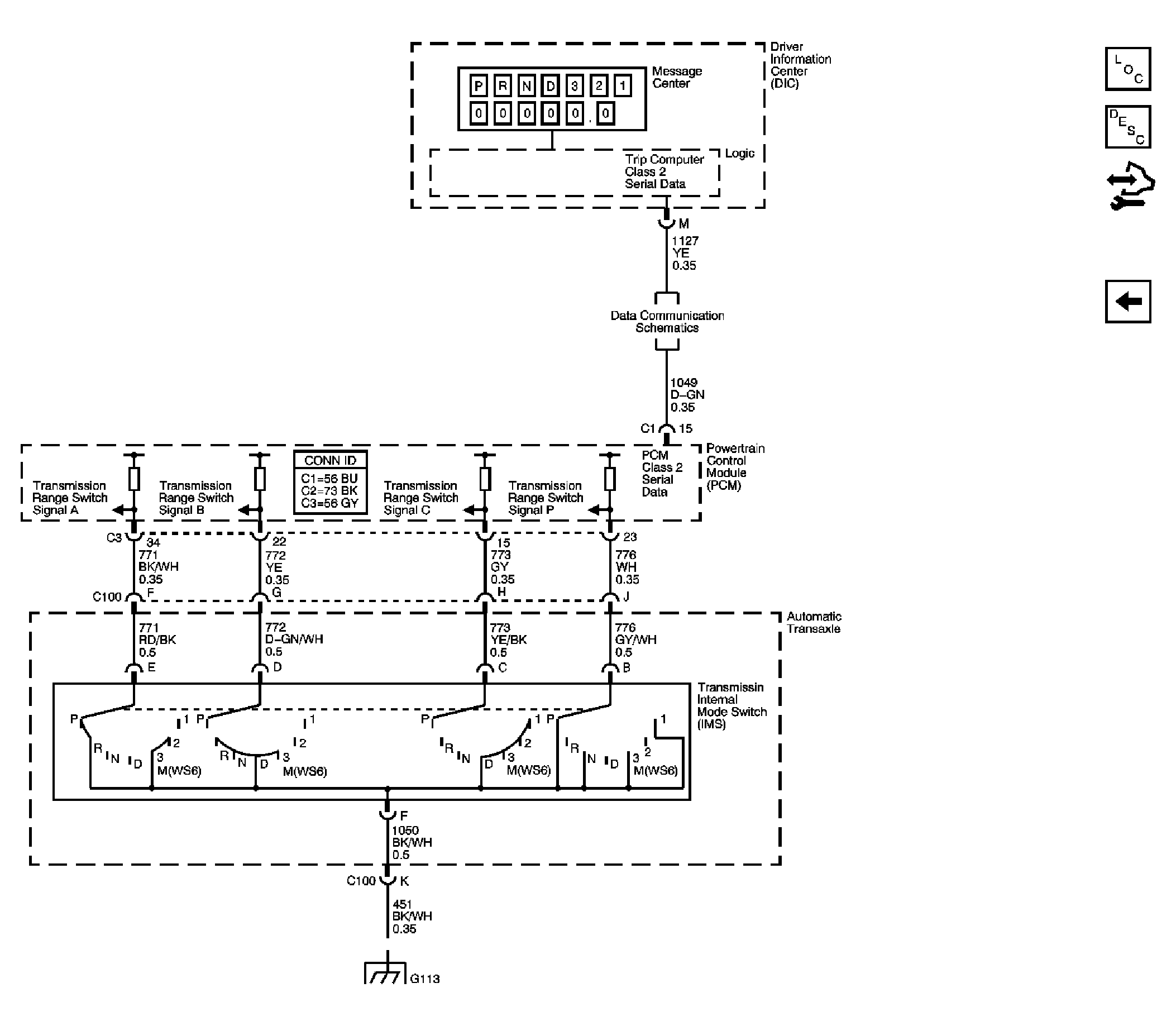

Fig 3: PRNDL, and IMS Switch

Courtesy of GENERAL MOTORS CORP.
