SIR Schematics

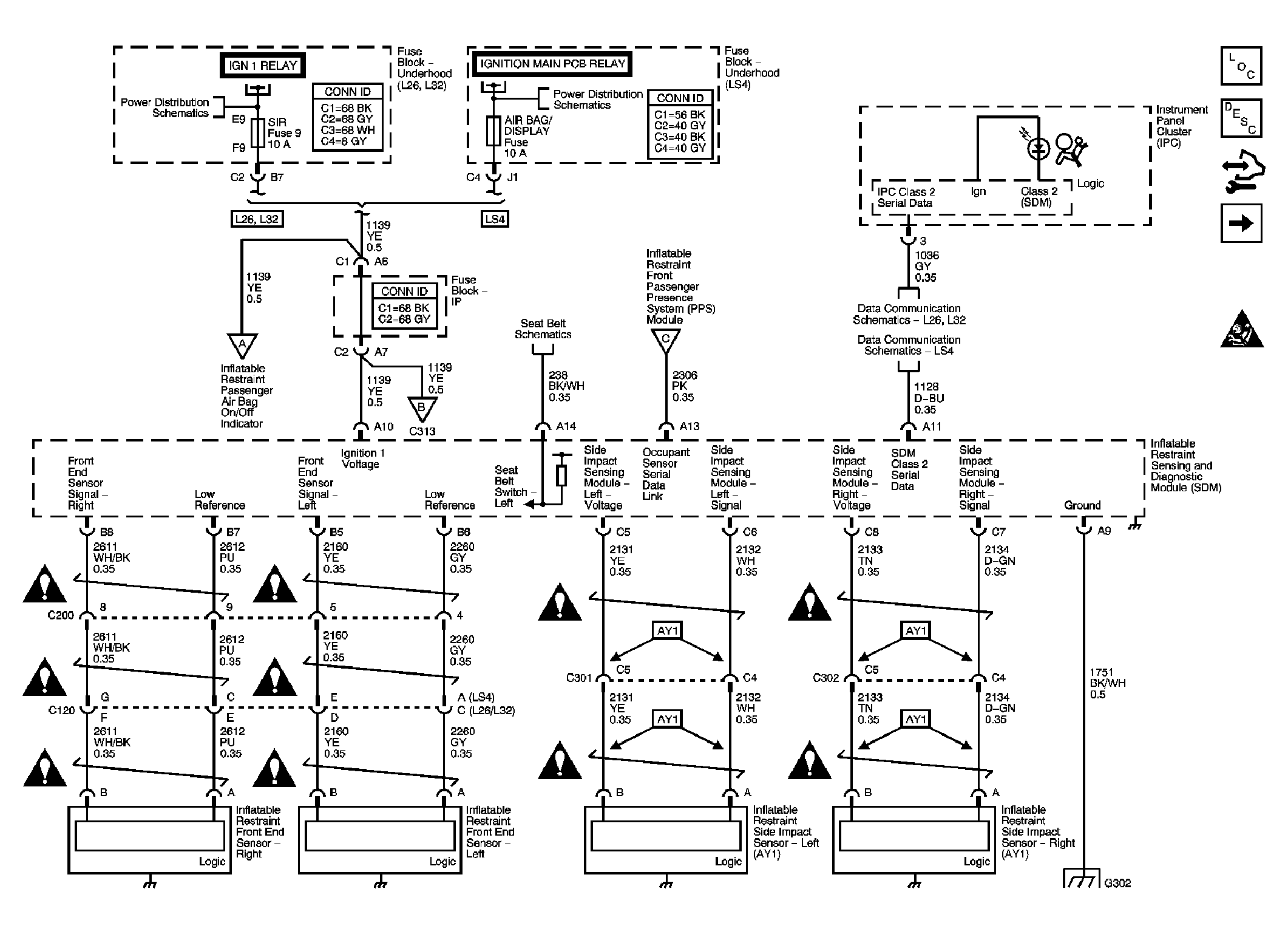

Fig 1: Power, Ground, DLC, Indicators, Sensors and References
GM1798254Courtesy of GENERAL MOTORS CORP.

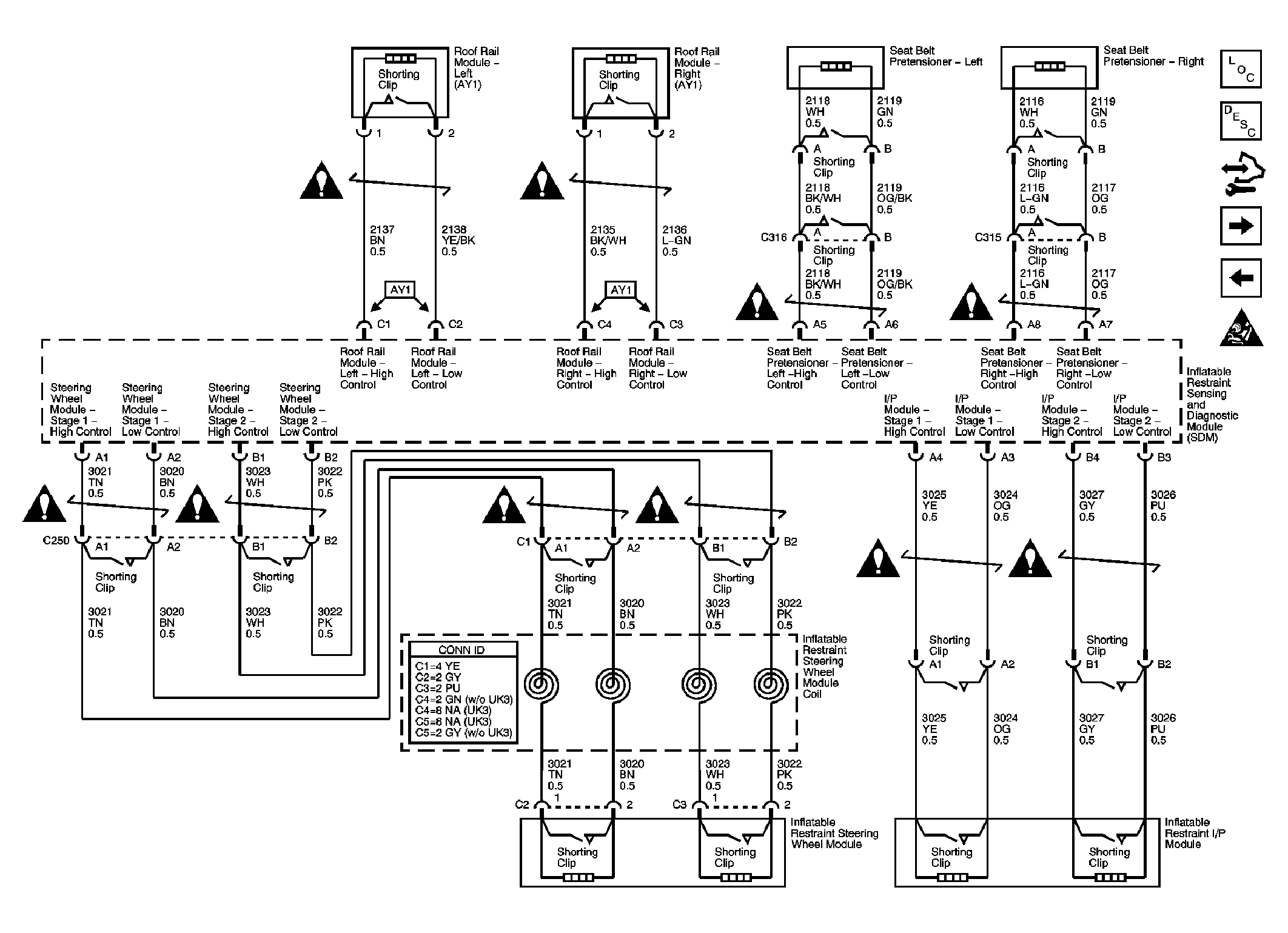

Fig 2: Deployment Loops
GM1798257Courtesy of GENERAL MOTORS CORP.

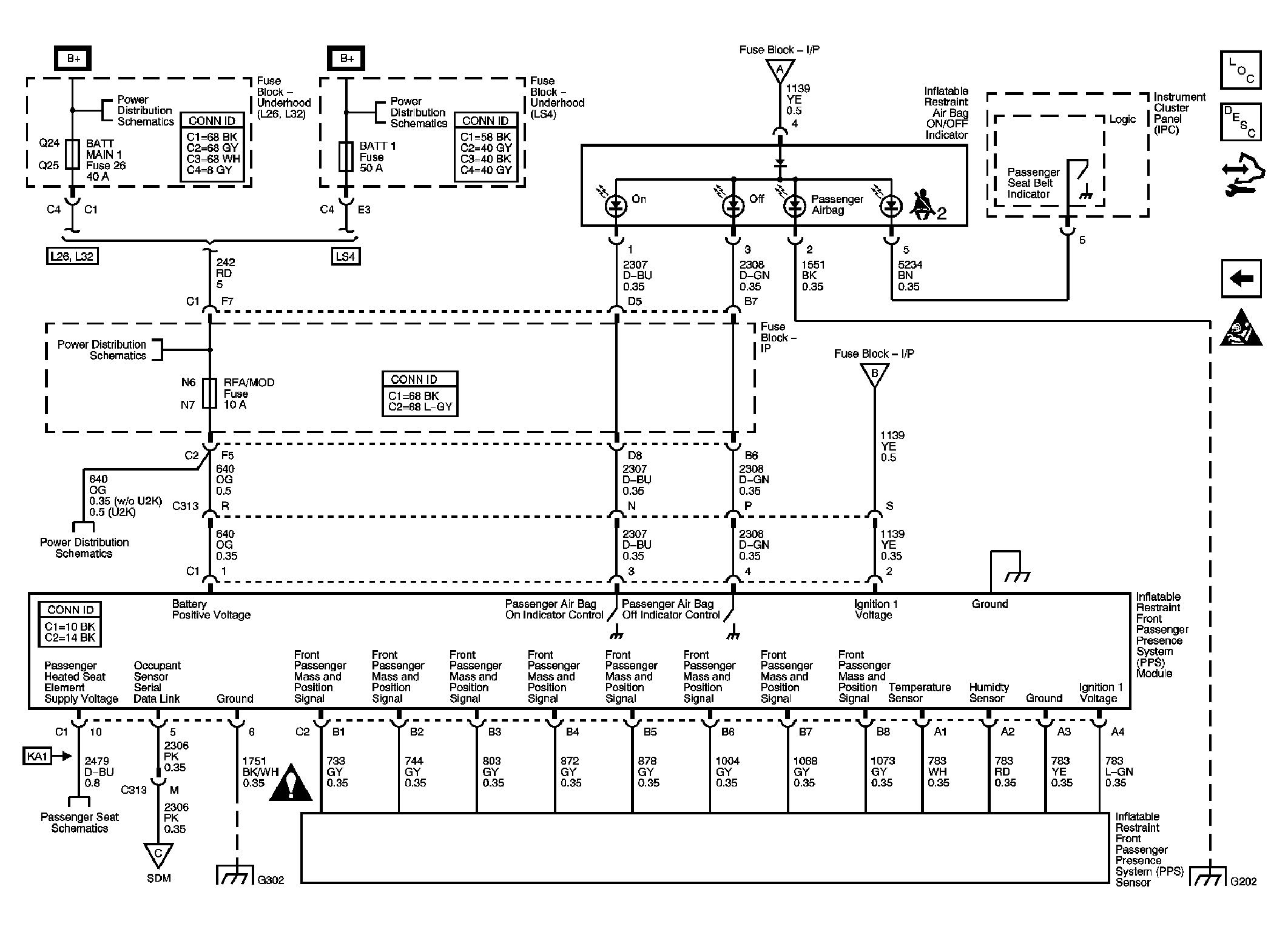

Fig 3: Passenger Presence System
GM1798258Courtesy of GENERAL MOTORS CORP.
