HVAC Schematics

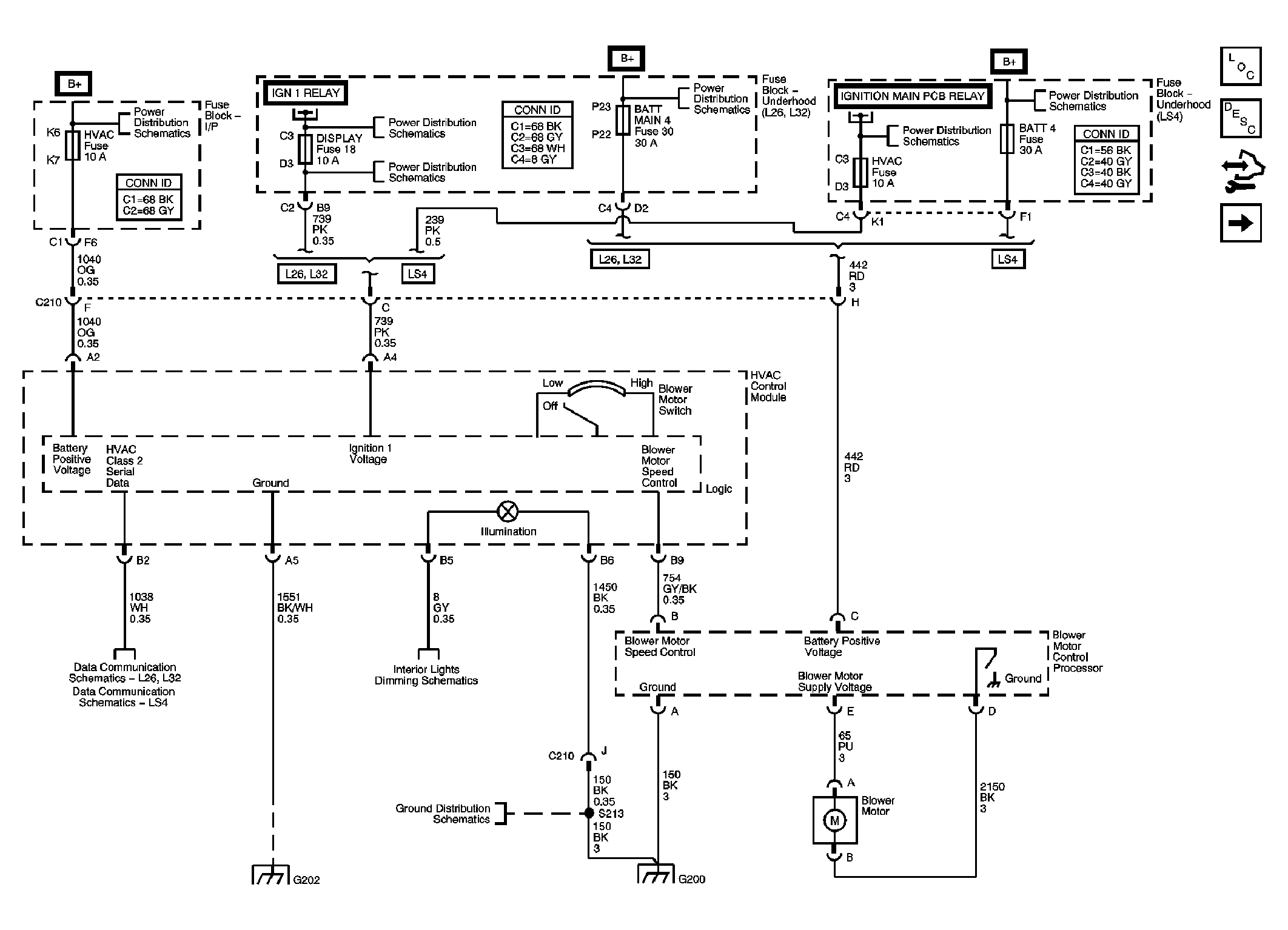

Fig 1: Power, Ground and Blower Motor Controls
GM1797758Courtesy of GENERAL MOTORS CORP.

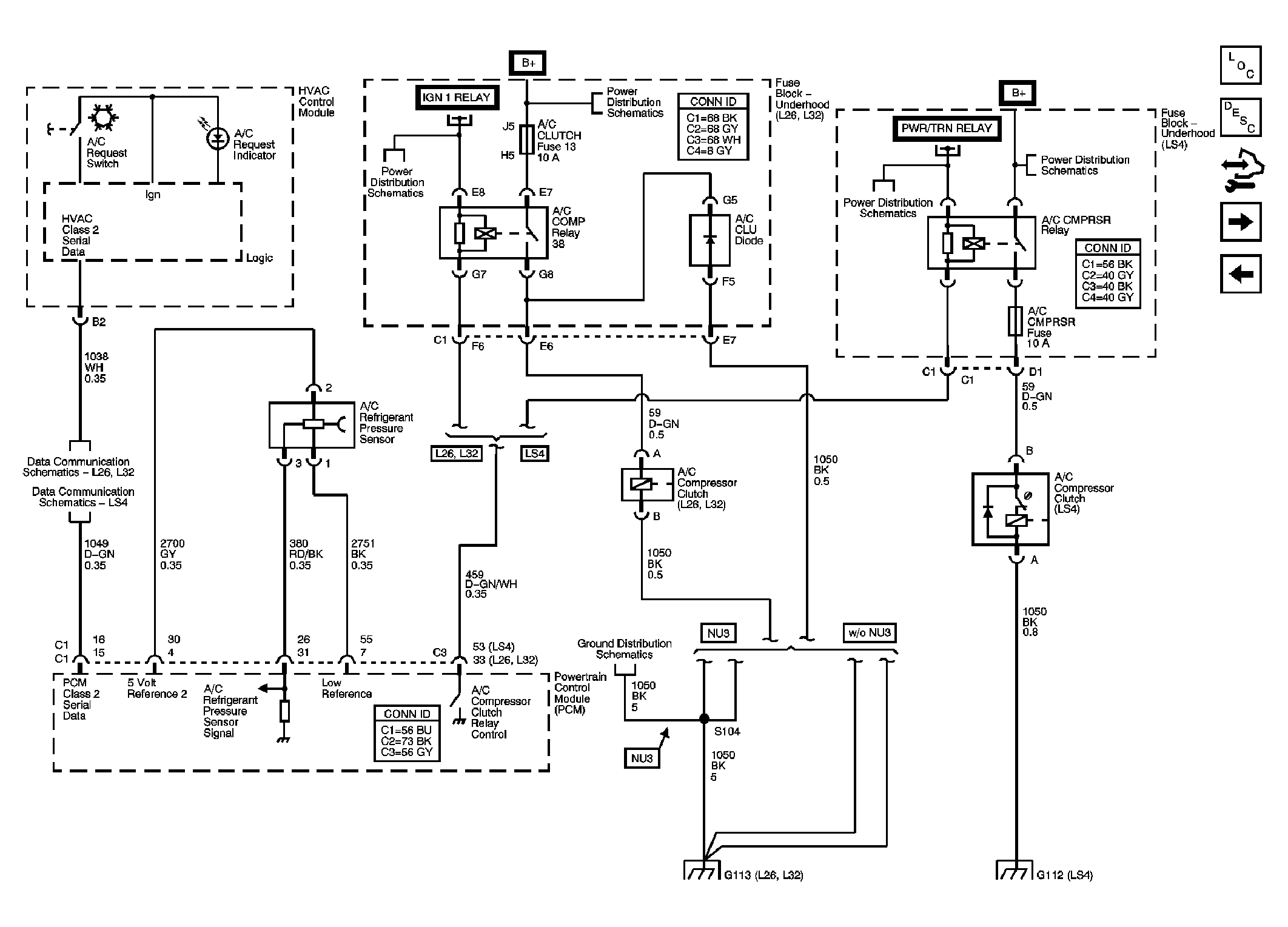

Fig 2: A/C Compressor Controls
GM1797762Courtesy of GENERAL MOTORS CORP.

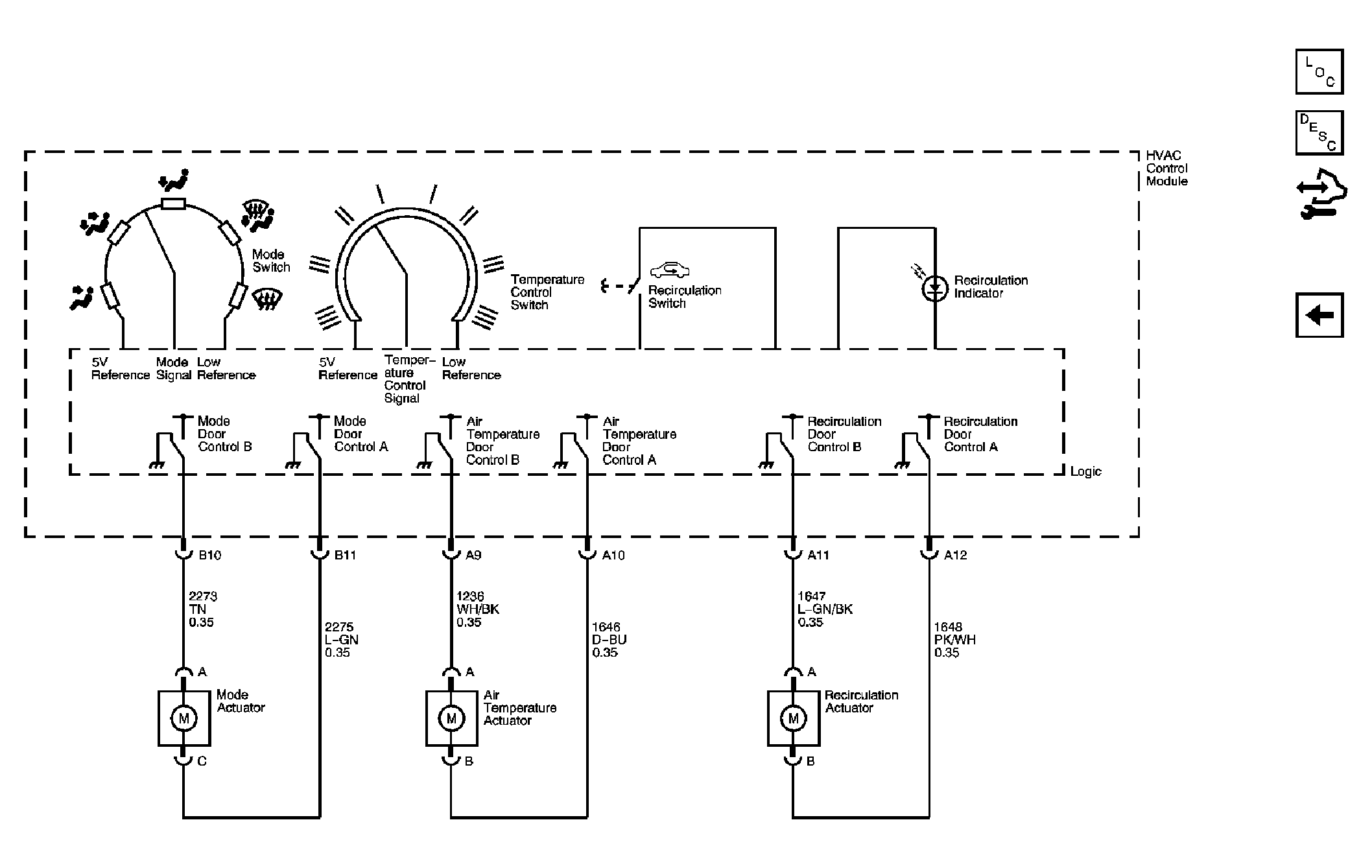

Fig 3: Mode and Air Temperature Controls
GM1797764Courtesy of GENERAL MOTORS CORP.
