HVAC Schematics

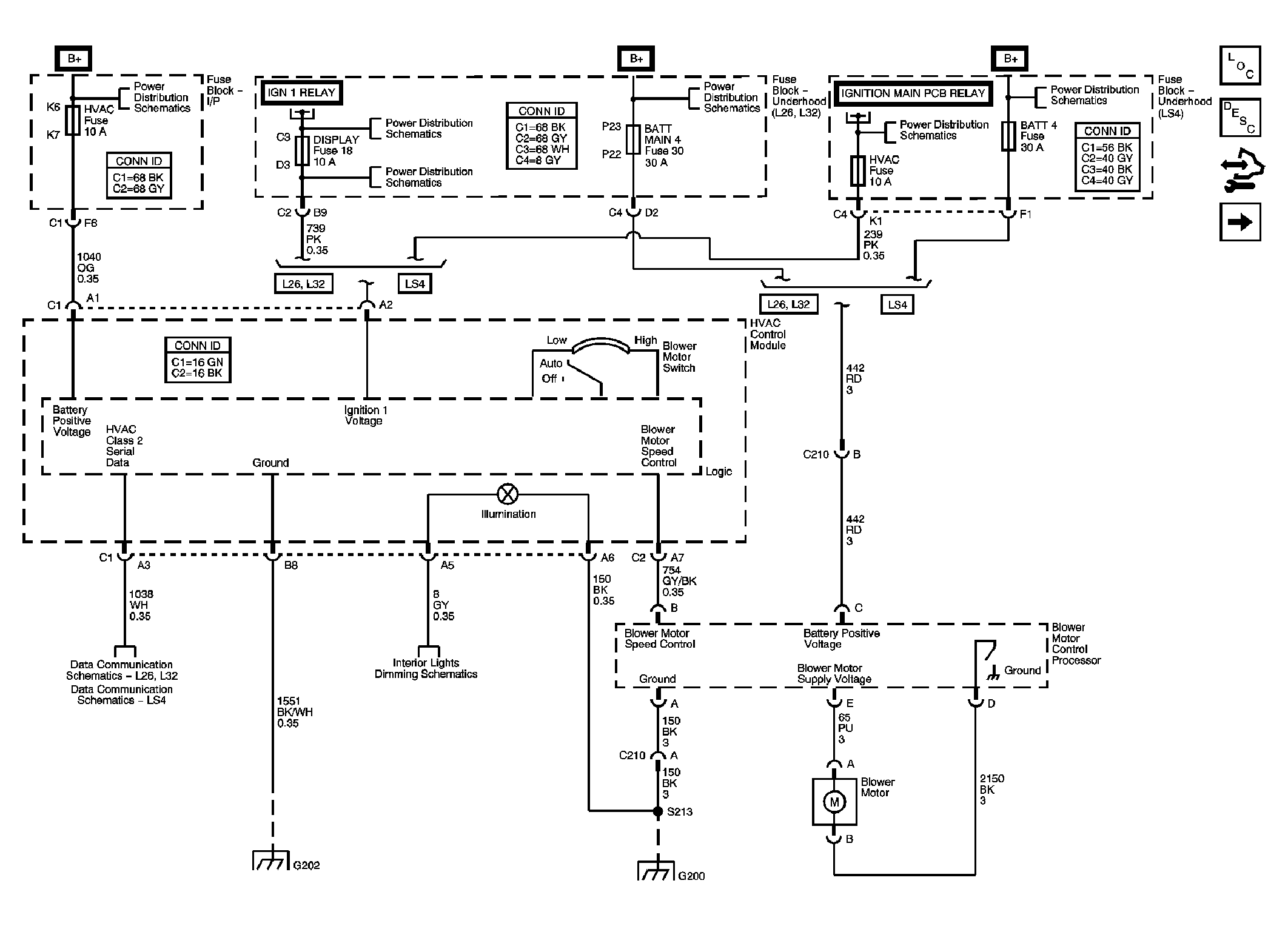

Fig 1: Power, Ground, and Blower Motor Controls
GM1797769Courtesy of GENERAL MOTORS CORP.

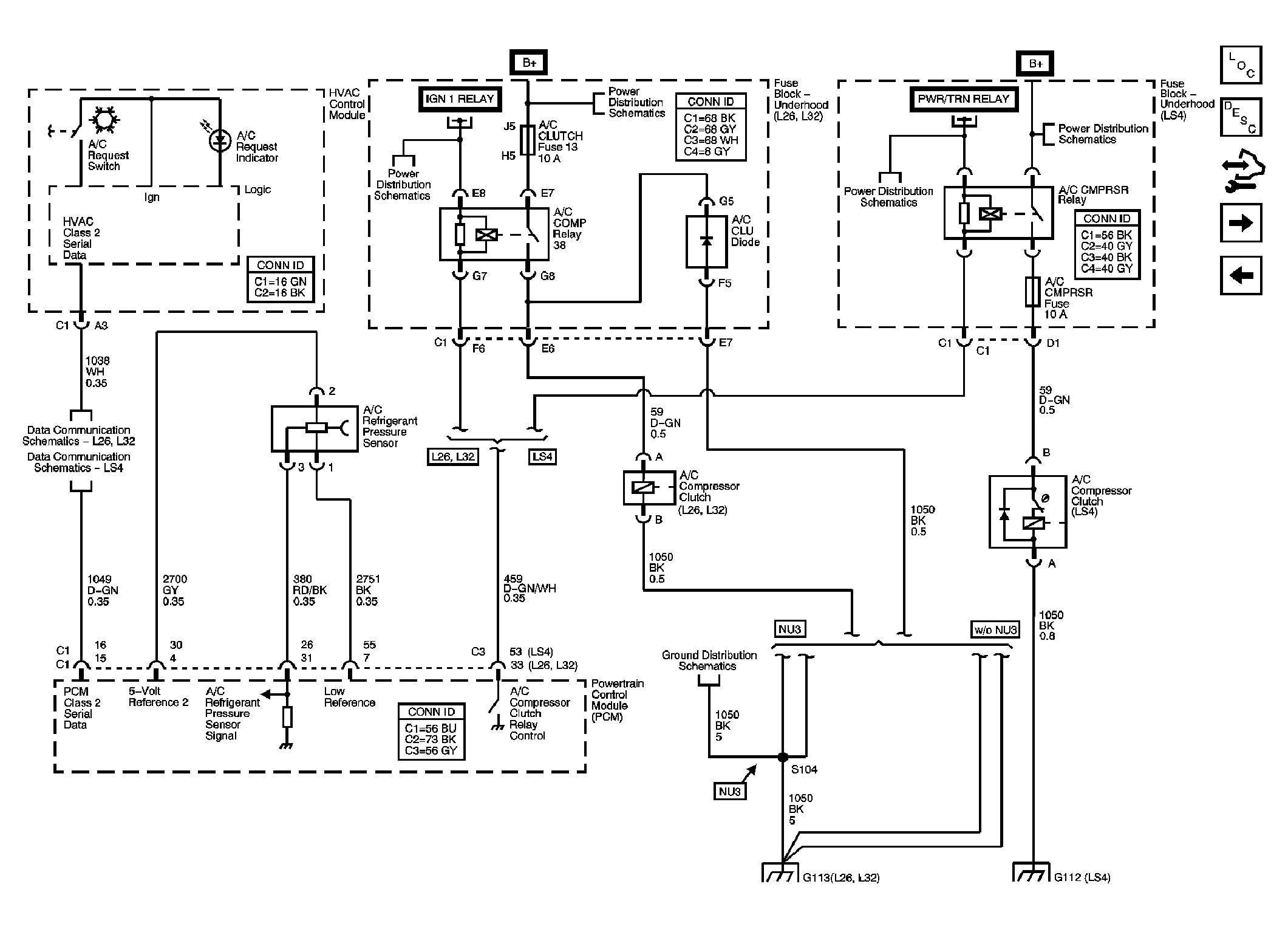

Fig 2: A/C Compressor Controls
GM1797770Courtesy of GENERAL MOTORS CORP.

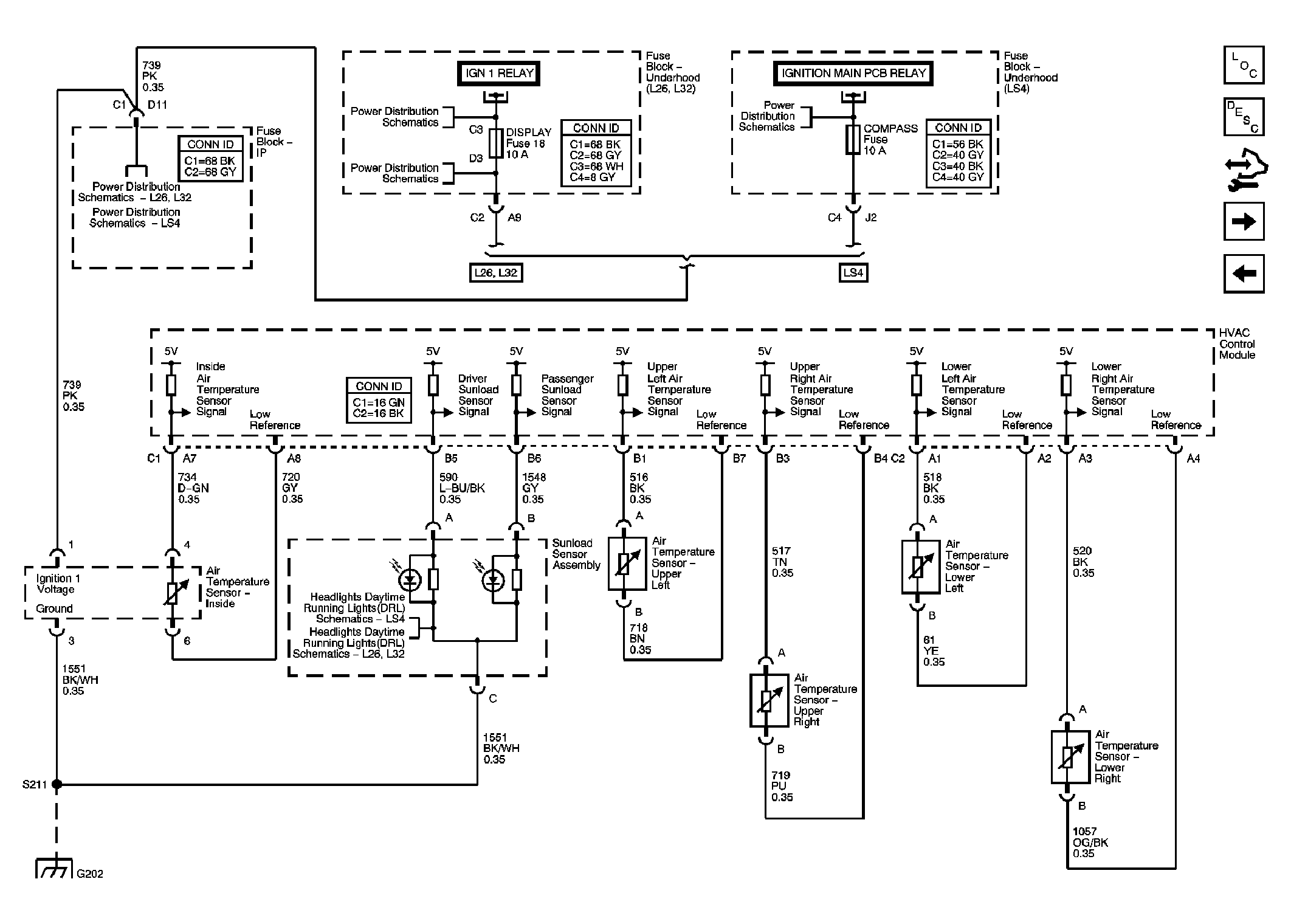

Fig 3: Sensors
GM1797771Courtesy of GENERAL MOTORS CORP.

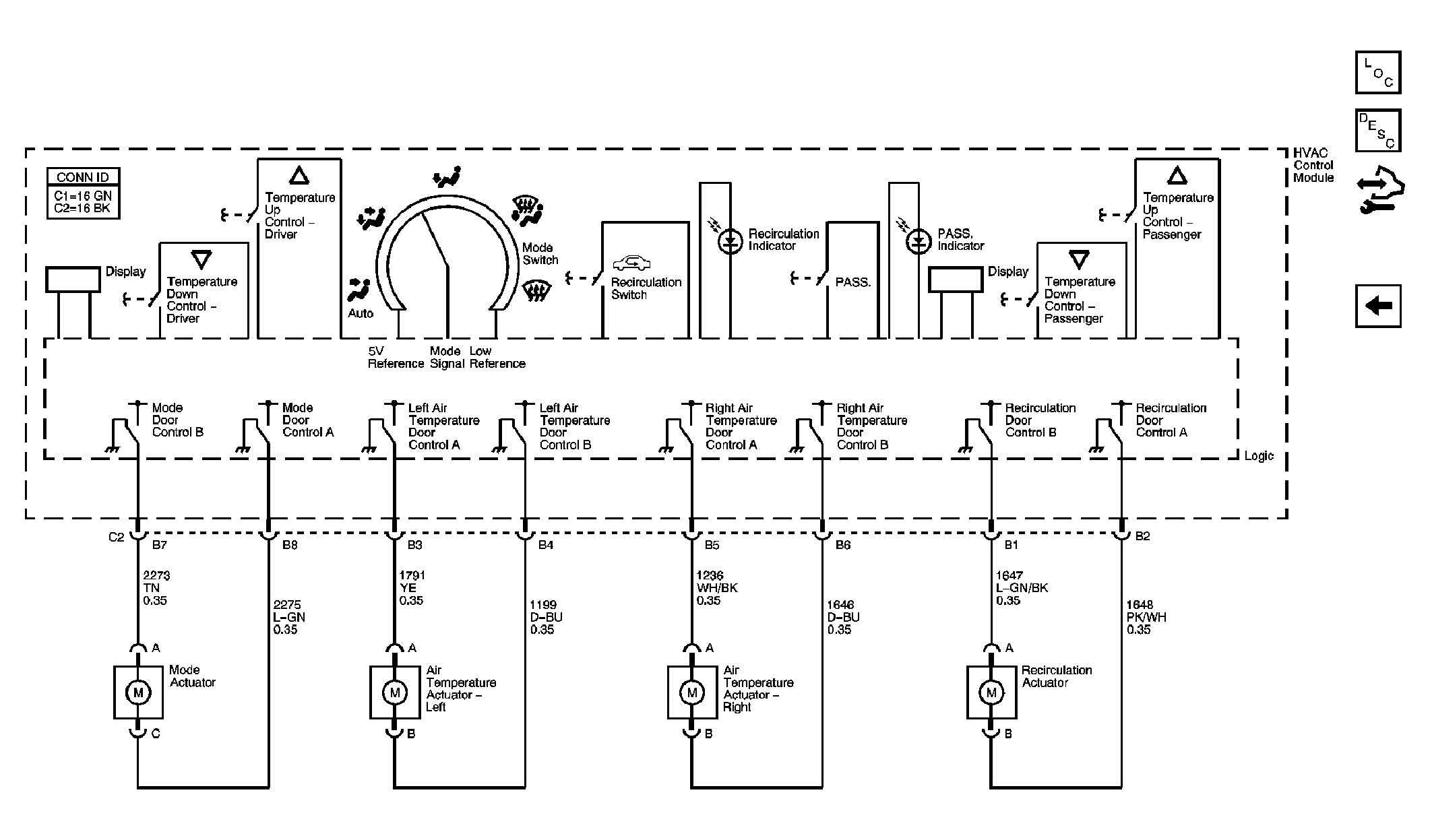

Fig 4: Actuators
GM1797772Courtesy of GENERAL MOTORS CORP.
