Starting and Charging Schematics

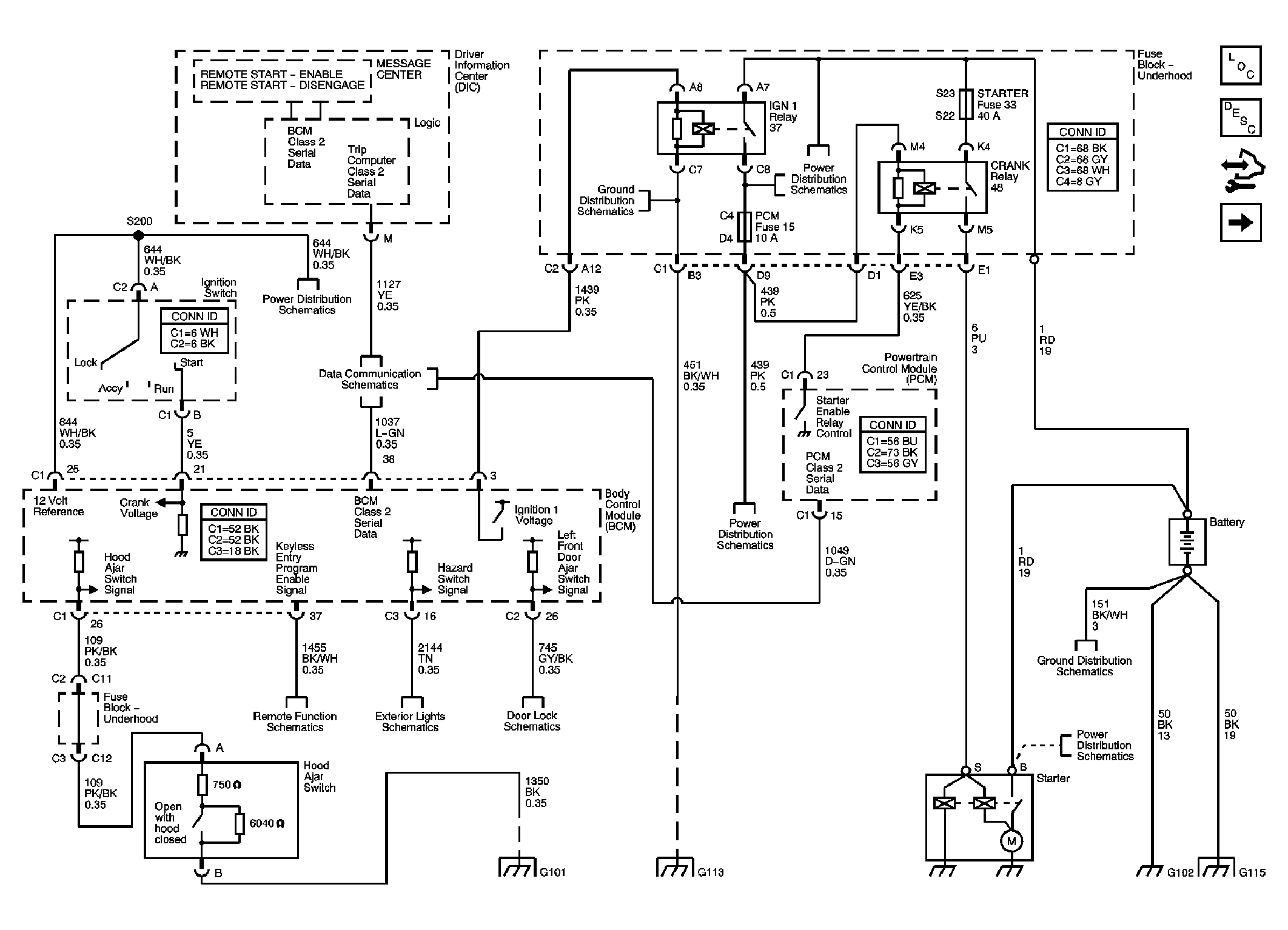

Fig 1: Starter Schematic (L26, L32)
GM1797924Courtesy of GENERAL MOTORS CORP.

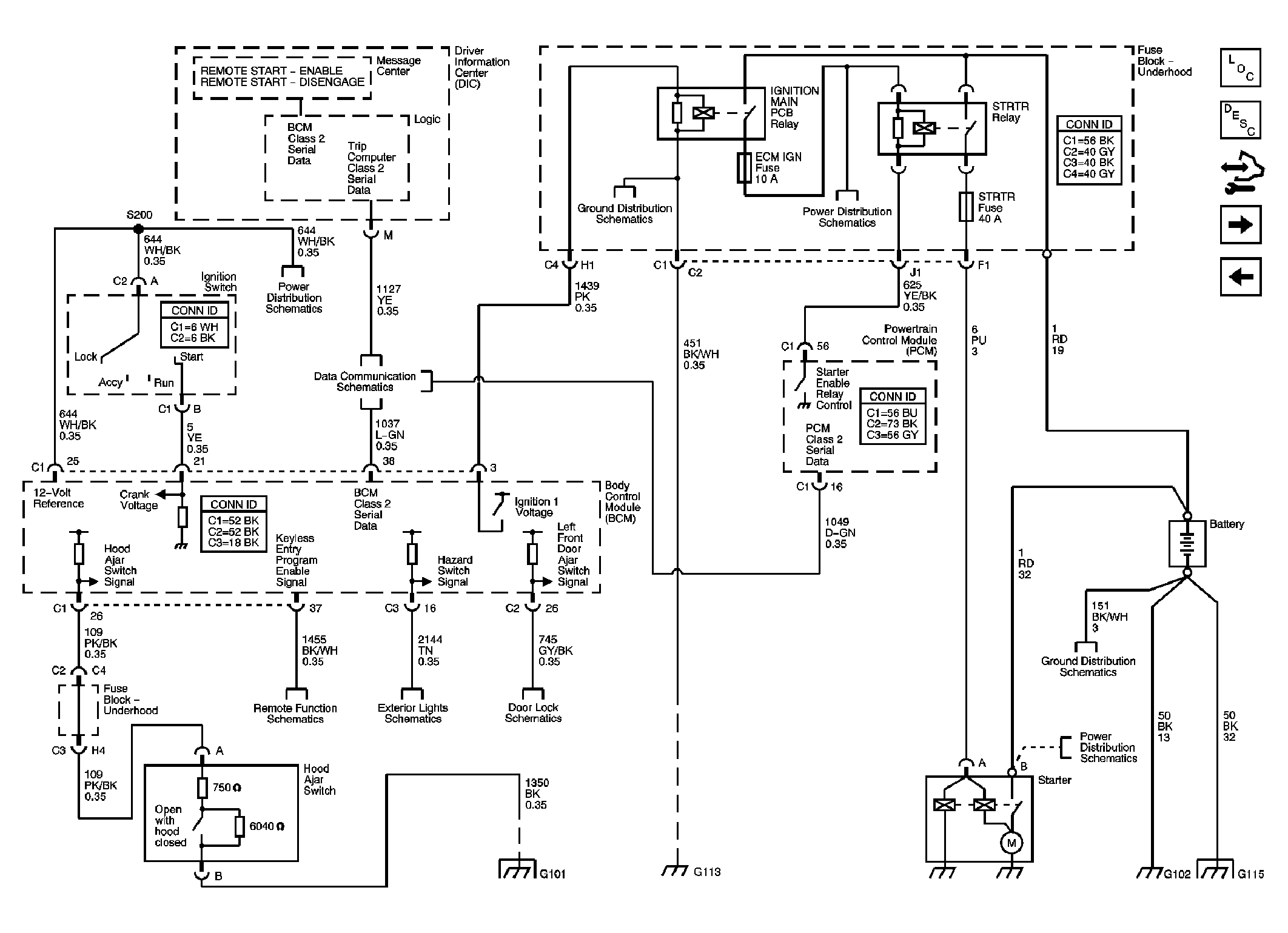

Fig 2: Starter Schematic (LS4)
GM1797938Courtesy of GENERAL MOTORS CORP.

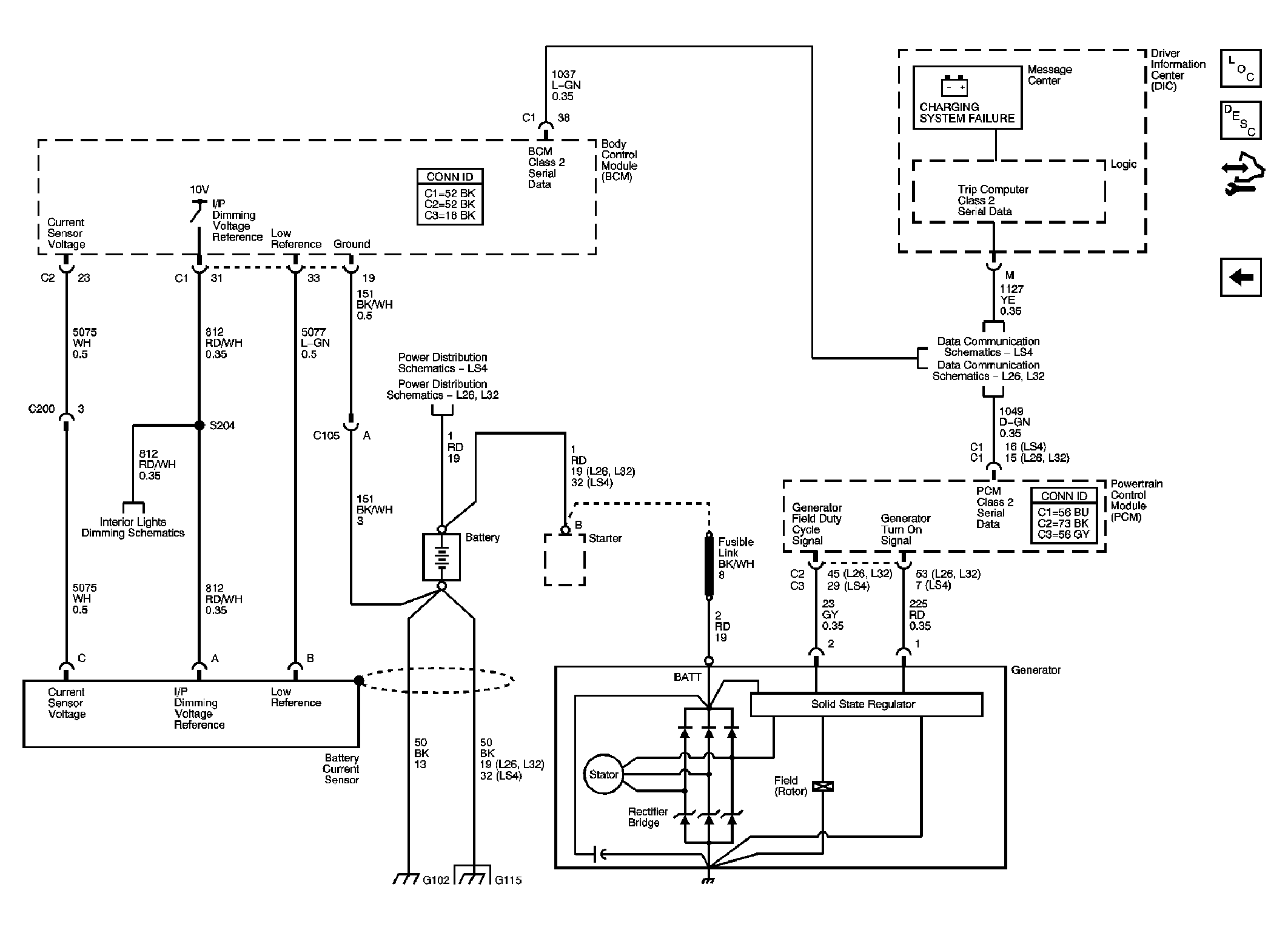

Fig 3: Generator Schematic
GM1797933Courtesy of GENERAL MOTORS CORP.
