Harness Routing Views

Fig 1: Left Front of the Vehicle Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G101
2	C141
3	S110
4	C143

Fig 2: Right Front of the Vehicle Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C120
2	G100
3	S124
4	C142

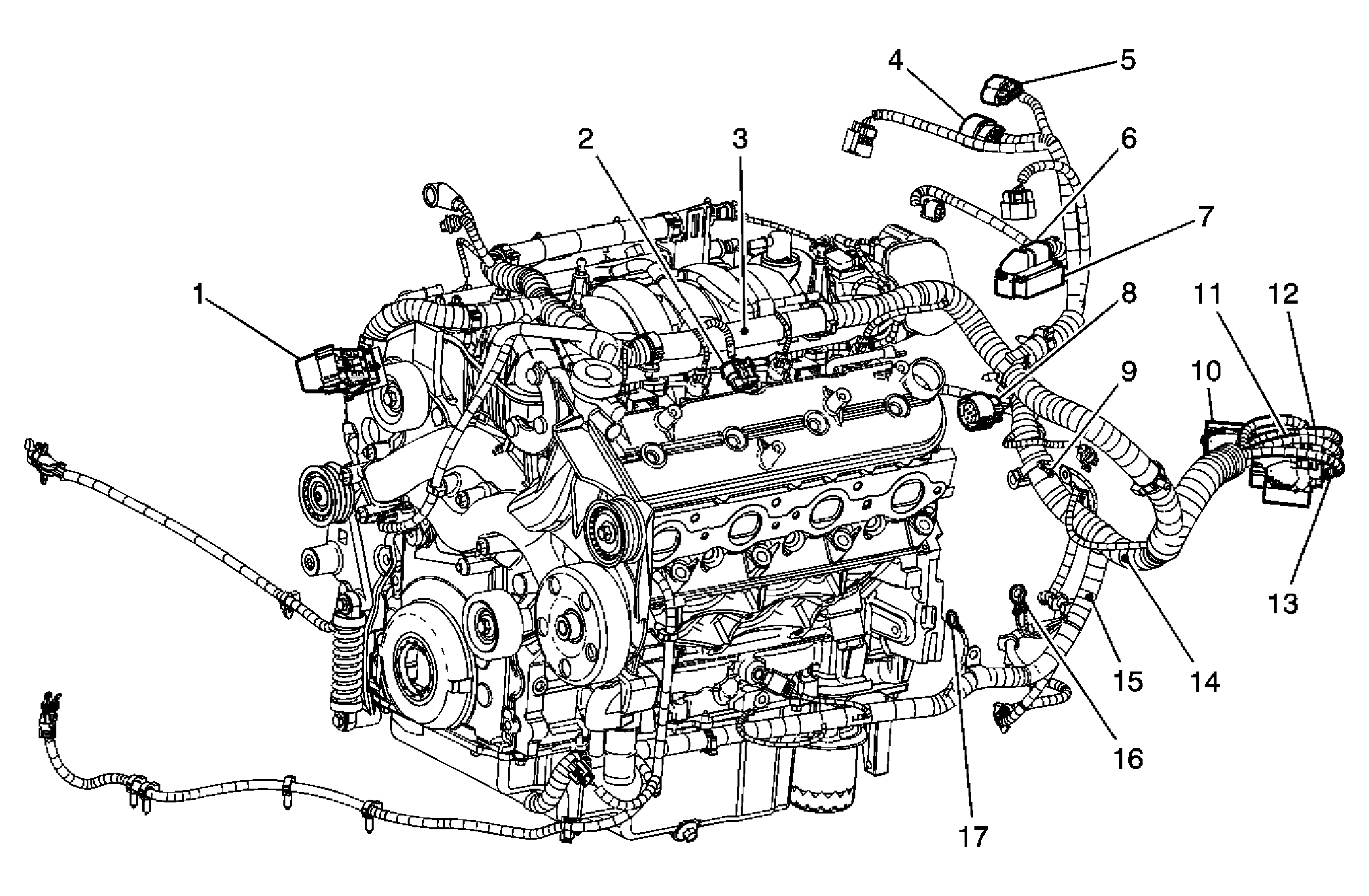

Fig 3: Engine Harness - RF View - LS4

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block - Underhood C1
2	C107
3	S108
4	C101
5	C102
6	S107
7	Electronic Brake Control Module (EBCM)
8	C100
9	Fusible Link
10	Transmission Control Module (TCM)
11	Powertrain Control Module (PCM) C2
12	Powertrain Control Module (PCM) C3
13	Powertrain Control Module (PCM) C1
14	S101
15	S125
16	G112, G113
17	G115

Fig 4: Right Front Frame and Underbody Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C144
2	Park/Turn Signal Lamp - RF
3	Fog Lamp - RF

Fig 5: Top Left Front of Engine Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C126
2	Engine Coolant Temperature (ECT) Sensor Jumper Harness
3	Engine Coolant Temperature (ECT) Sensor

Fig 6: Lower Front of the Engine Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Knock Sensor (KS) Bank 1
2	G115
3	Starter Solenoid
4	Starter
5	Starter Solenoid Terminal S
6	Fusible Link
7	Positive Battery Cable
8	Engine Oil Level Switch

Fig 7: Left Side of the Engine Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	S107
2	C100
3	G113
4	S105
5	S101
6	G115

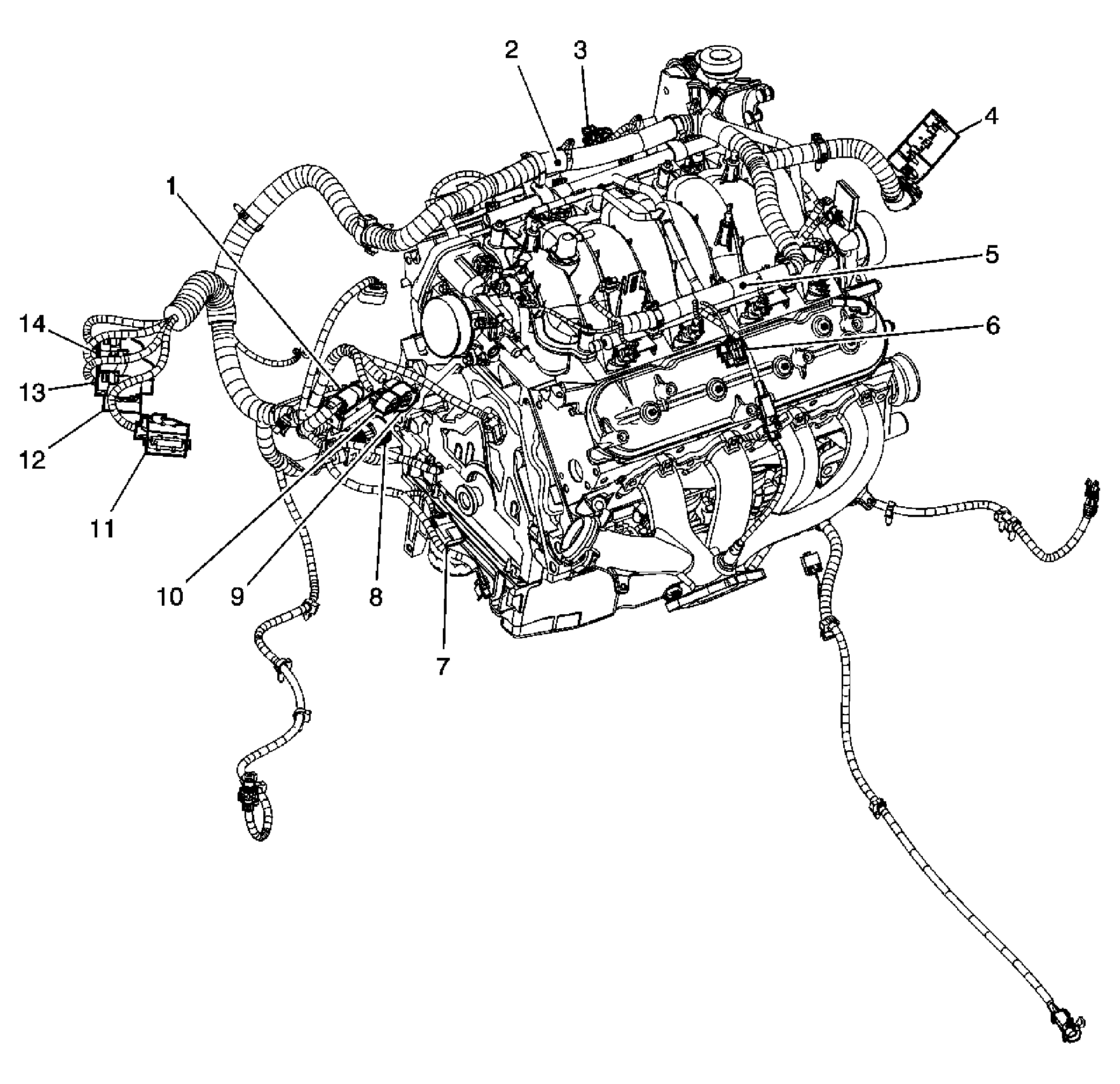

Fig 8: Engine Harness - LR View - LS4

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Electronic Brake Control Module (EBCM)
2	S108
3	C107
4	Fuse Block - Underhood C1
5	S109
6	C108
7	C111
8	C100
9	C101
10	C102
11	Transmission Control Module (TCM)
12	Powertrain Control Module (PCM) C3
13	Powertrain Control Module (PCM) C2
14	Powertrain Control Module (PCM) C1

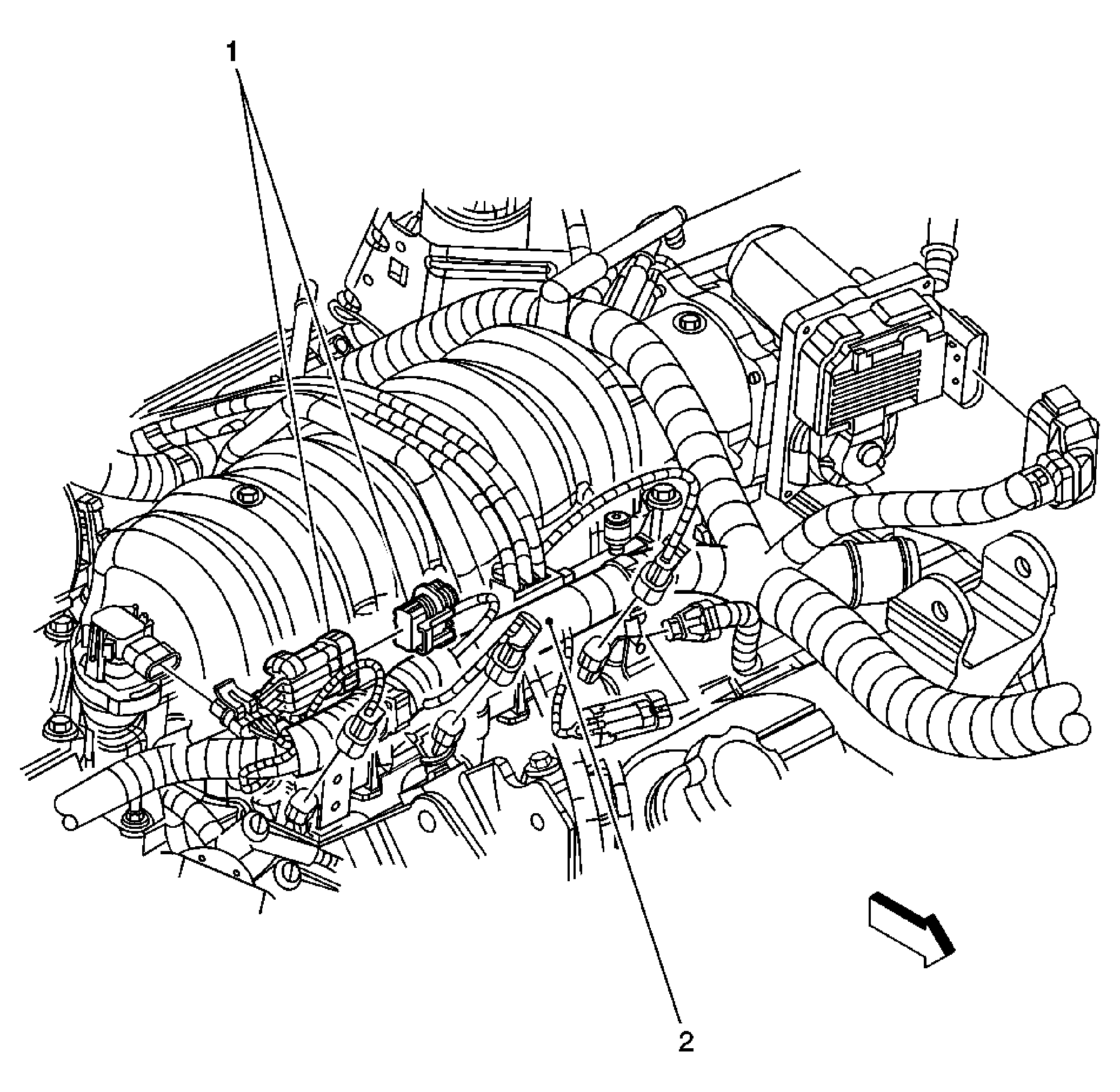

Fig 9: Front of the Engine Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C110
2	S109

Fig 10: RF Of The Engine Compartment Connectors (L36/L67)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Camshaft Position (CMP) Sensor
2	Ignition Control Module (ICM) Wiring Harness
3	C110
4	Ignition Control Module (ICM)
5	Ignition Coils
6	G112
7	Ignition Control Module (ICM) Wiring Harness
8	Ignition Control Module (ICM) Wiring Harness
9	Crankshaft Position (CKP) Sensor

Fig 11: Lower Right Side of the Engine Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C125
2	Engine Oil Pressure (EOP) Switch
3	Vehicle Speed Sensor (VSS)

Fig 12: Right Front of Engine Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G102
2	C104

Fig 13: Left Upper Front of Engine Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Supercharger Boost Control Solenoid (L32)
2	C126
3	C110

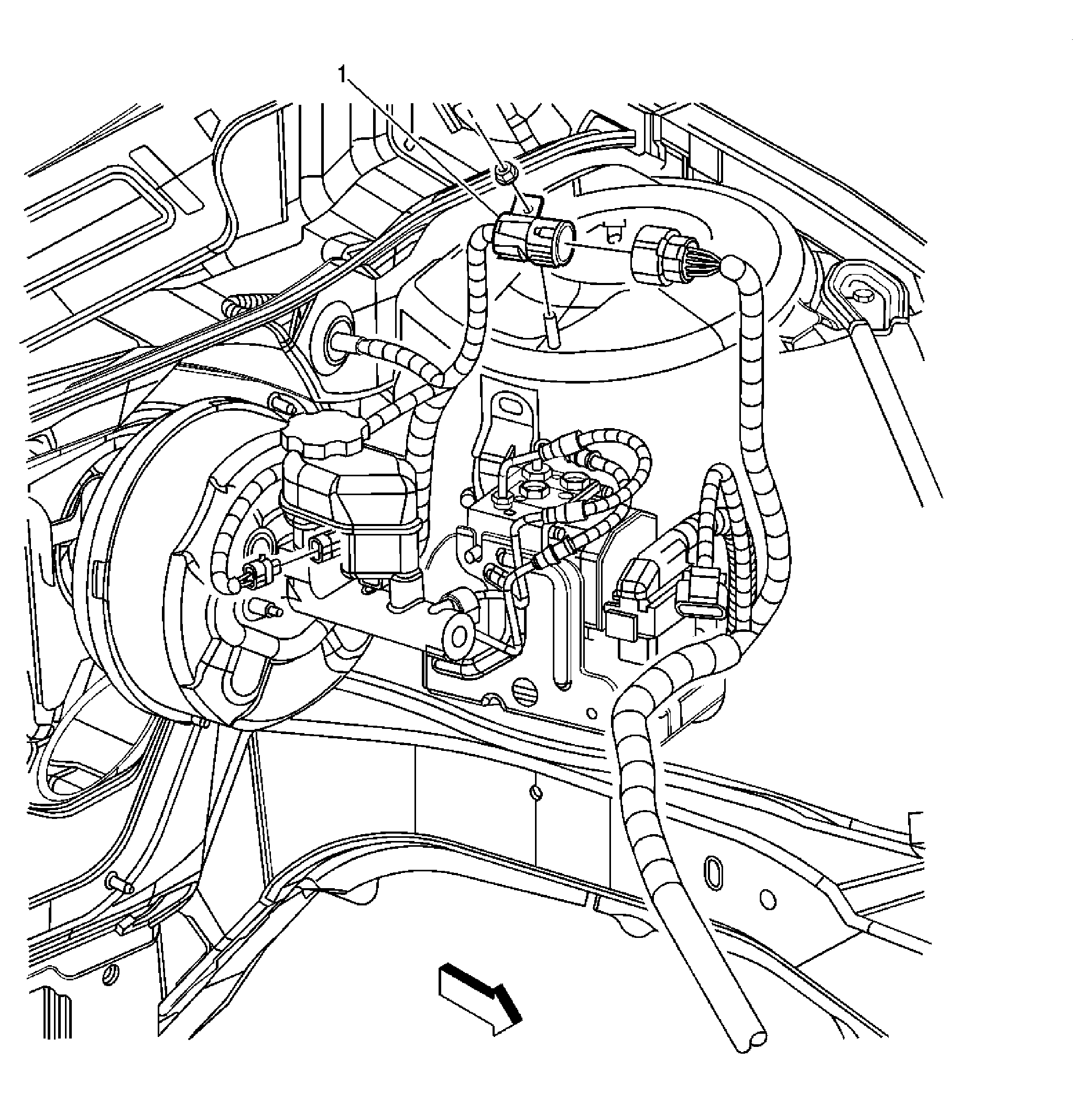

Fig 14: Left Rear of the Engine Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C101

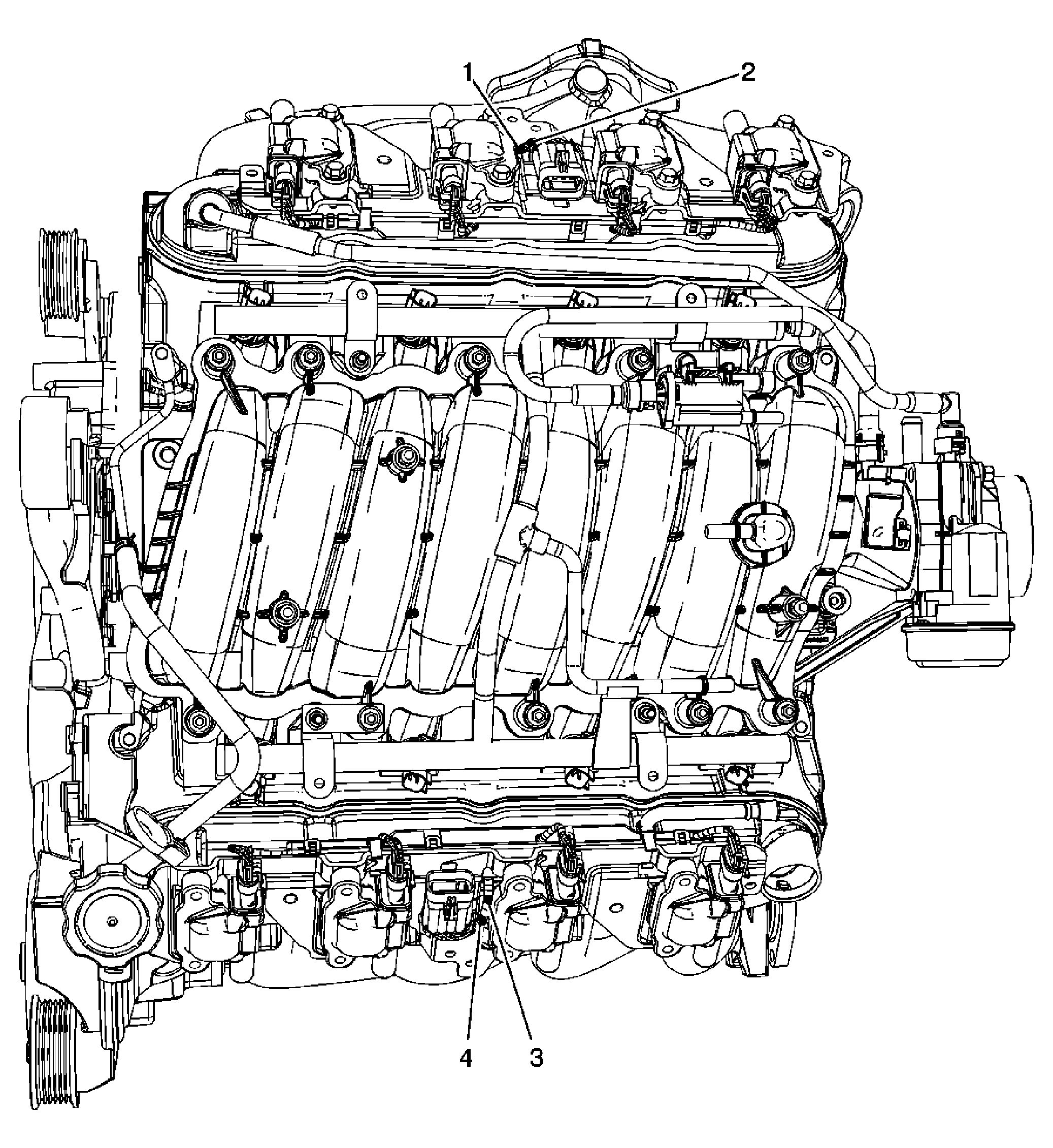

Fig 15: Engine Harness - Top View - LS4

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	S131
2	S105
3	S106
4	S130

Fig 16: Left Side Of Upper Left Footwell Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Control Module (BCM)
2	C290
3	C291

Fig 17: Right Side of Upper Left Footwell Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C201
2	Inflatable Restraint Steering Wheel Module Coil, C1
3	G202
4	G201
5	Splice Pack SP205
6	Data Link Connector (DLC)

Fig 18: Center of I/P Behind Radio Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radio Connector, C2
2	G200
3	C210
4	Radio Connector, C1
5	Driver Information Center (DIC), Connector
6	HVAC Control Module

Fig 19: Right Side of the I/P Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block - I/P
2	Inflatable Restraint I/P Module, Connector
3	C200
4	C202

Fig 20: Inside Center Console Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/T Shift Lock Control Solenoid
2	PRNDL Lamp
3	C241
4	C240

Fig 21: Under the Floor Console Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	S238
2	S231
3	Head Up Display (HUD) Switch
4	S374
5	Traction Control Switch
6	Accessory Power Outlet - Front
7	Accessory Power Outlet - Rear

Fig 22: Left Front of the Passenger Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C355
2	C290
3	C291
4	C208
5	C207
6	C301
7	S307
8	G301
9	S303

Fig 23: Right Side of the Passenger Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C302
2	C200
3	G302
4	C356
5	S406

Fig 24: Driver Door Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock - Driver
2	Inflatable Restraint Side Impact Sensor - Left (AY1)
3	Window Motor - Driver
4	Outside Rearview Mirror - Driver
5	Speaker - LF Door
6	C303
7	S305

Fig 25: Driver Door Trim Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror Switch
2	Window Switch - Driver
3	Door Lock Switch - Driver
4	C303
5	Speaker - LF Door Tweeter Connector
6	S304

Fig 26: Front Passenger Door Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror - Passenger
2	C304
3	Inflatable Restraint Side Impact Sensor - Right (AY1)
4	Door Lock - Front Passenger
5	Window Motor - Front Passenger
6	S604
7	Speaker - RF Door

Fig 27: Front Passenger Door Trim Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Switch - Front Passenger
2	Window Switch - Front Passenger
3	S605
4	Speaker - RF Door Tweeter
5	C304

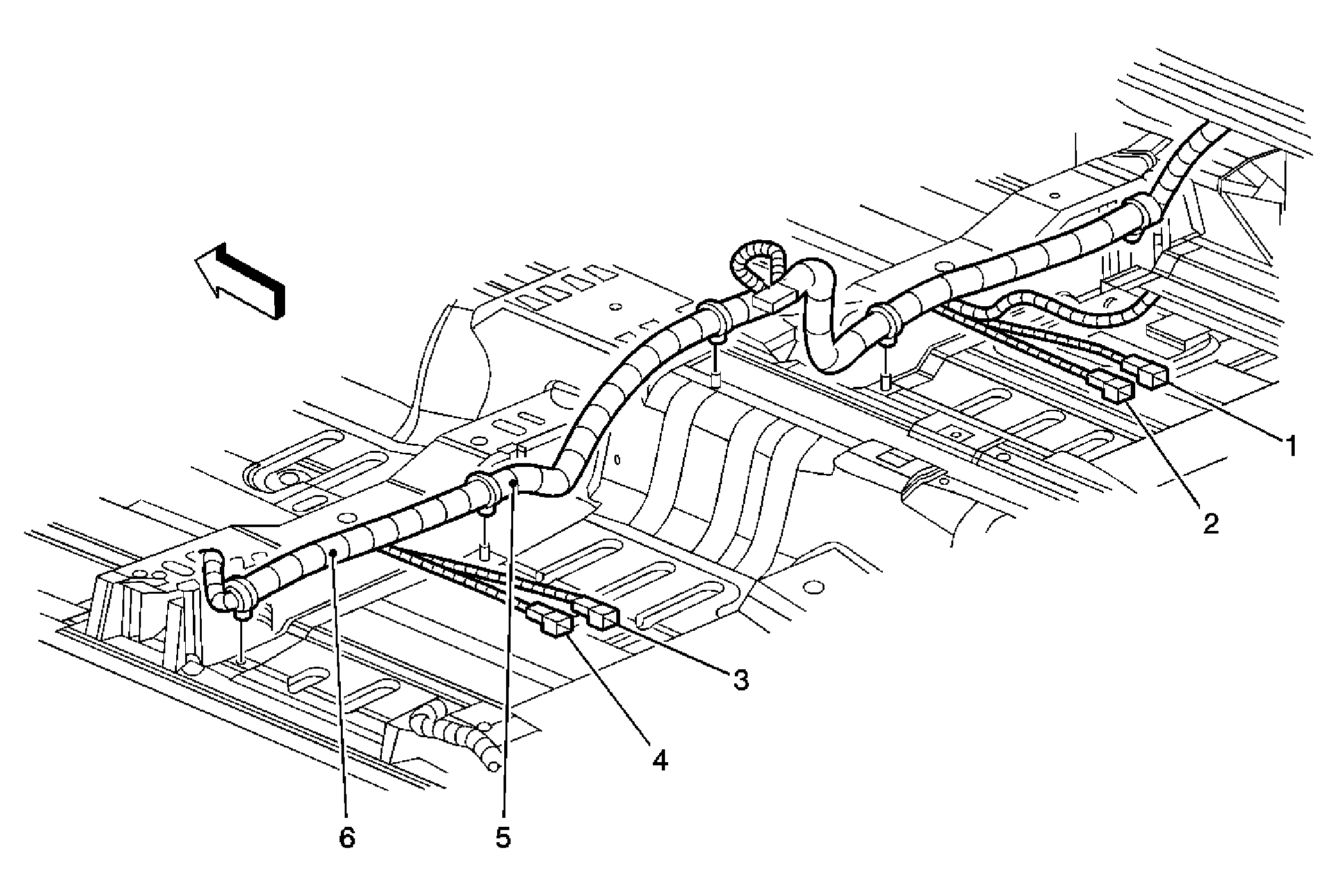

Fig 28: Front of the Passenger Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C315
2	C313
3	C311
4	C316
5	S314
6	S315

Fig 29: Under The Driver Seat Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Adjuster Motor Assembly - Driver Connector
2	Seat Belt Switch, Connector
3	Front Vertical Motor
4	Horizontal Motor
5	Heated Seat Element - Driver Back
6	C311
7	Hinge
8	C316
9	C312

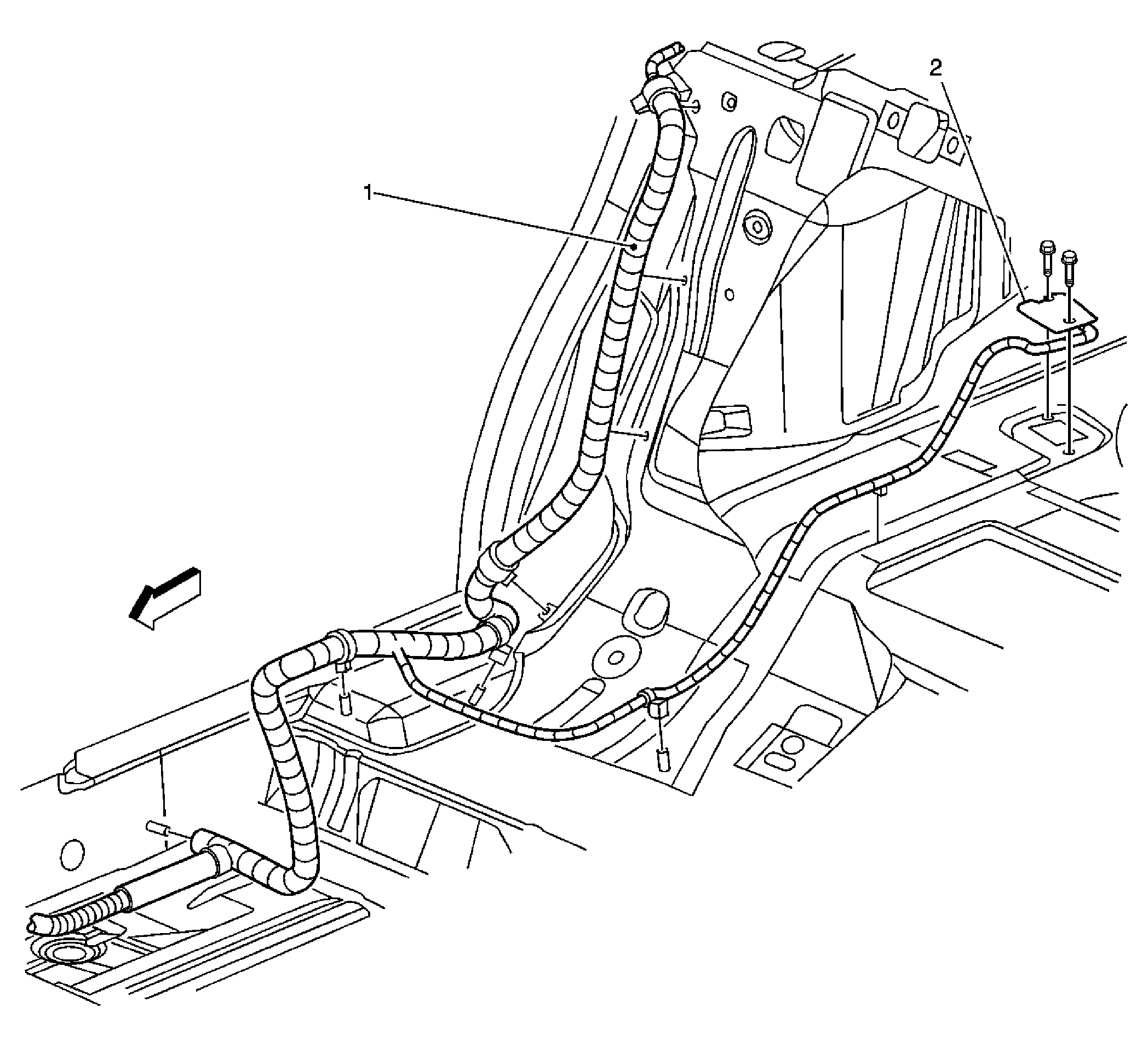

Fig 30: Rear of the Passenger Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	S407
2	C405

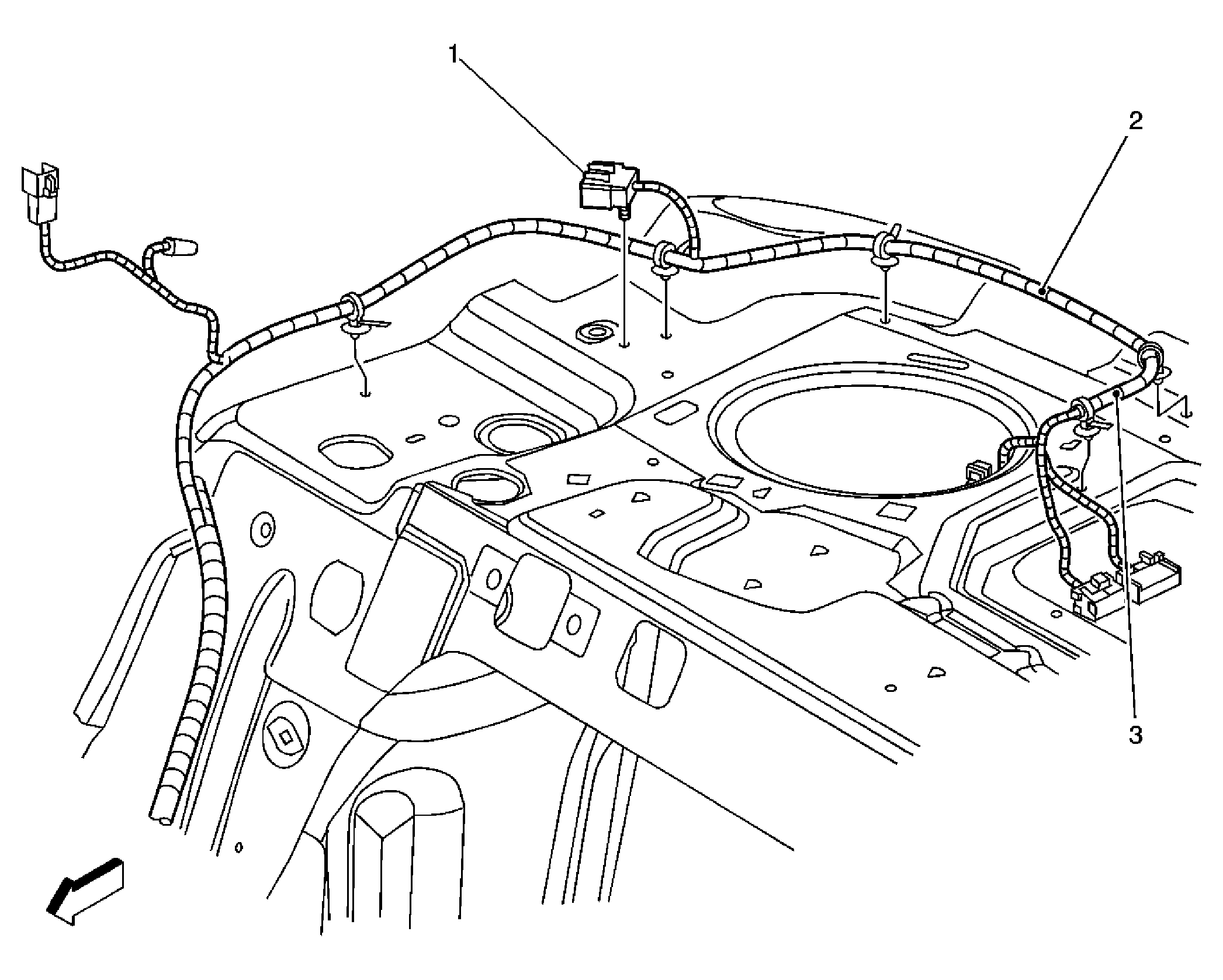

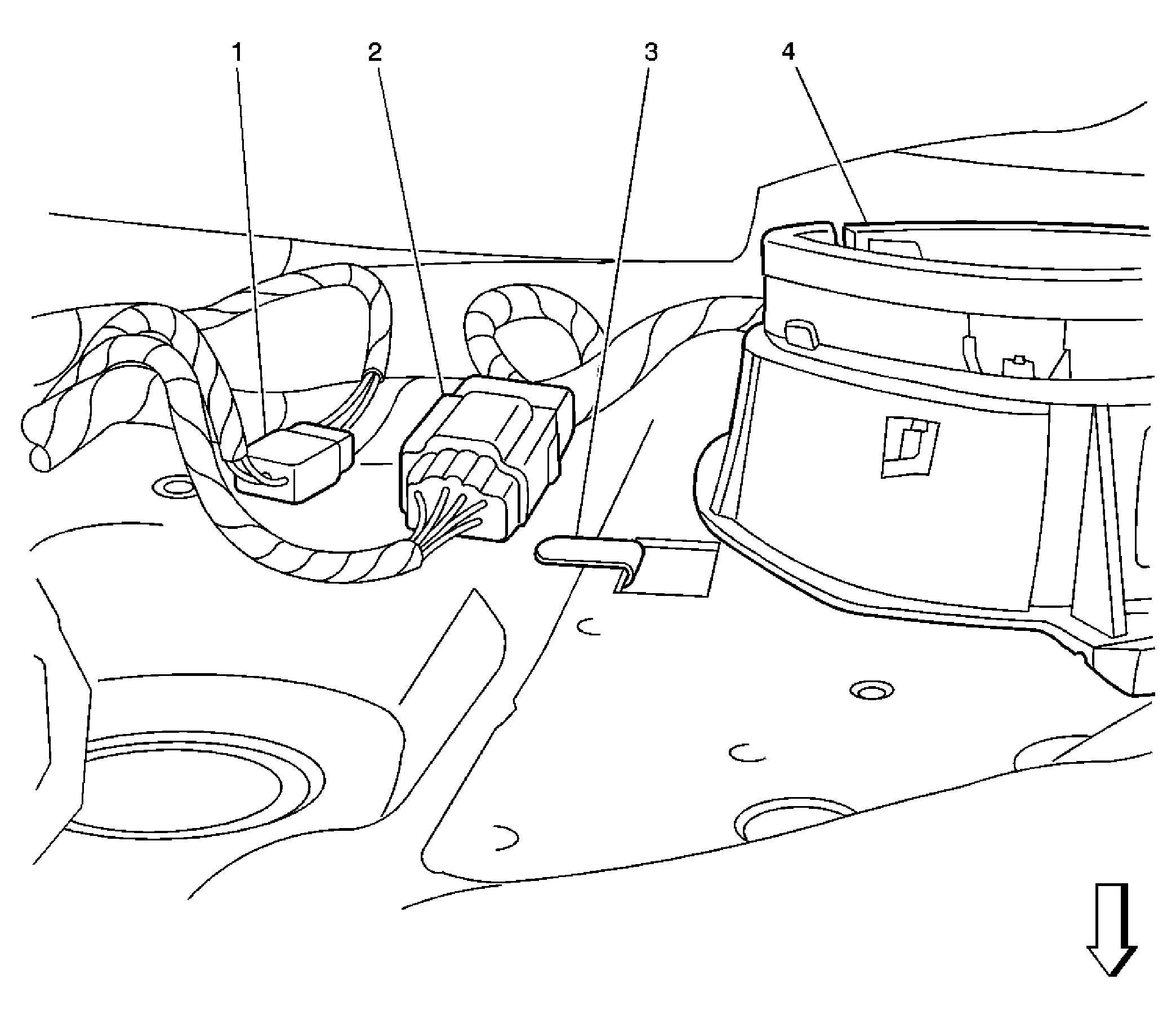

Fig 31: Top Right Side of Rear Package Shelf Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - RR
2	C400
3	C390
4	C398

Fig 32: Right Side of the Rear Window Shelf Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C390
2	S318
3	S317

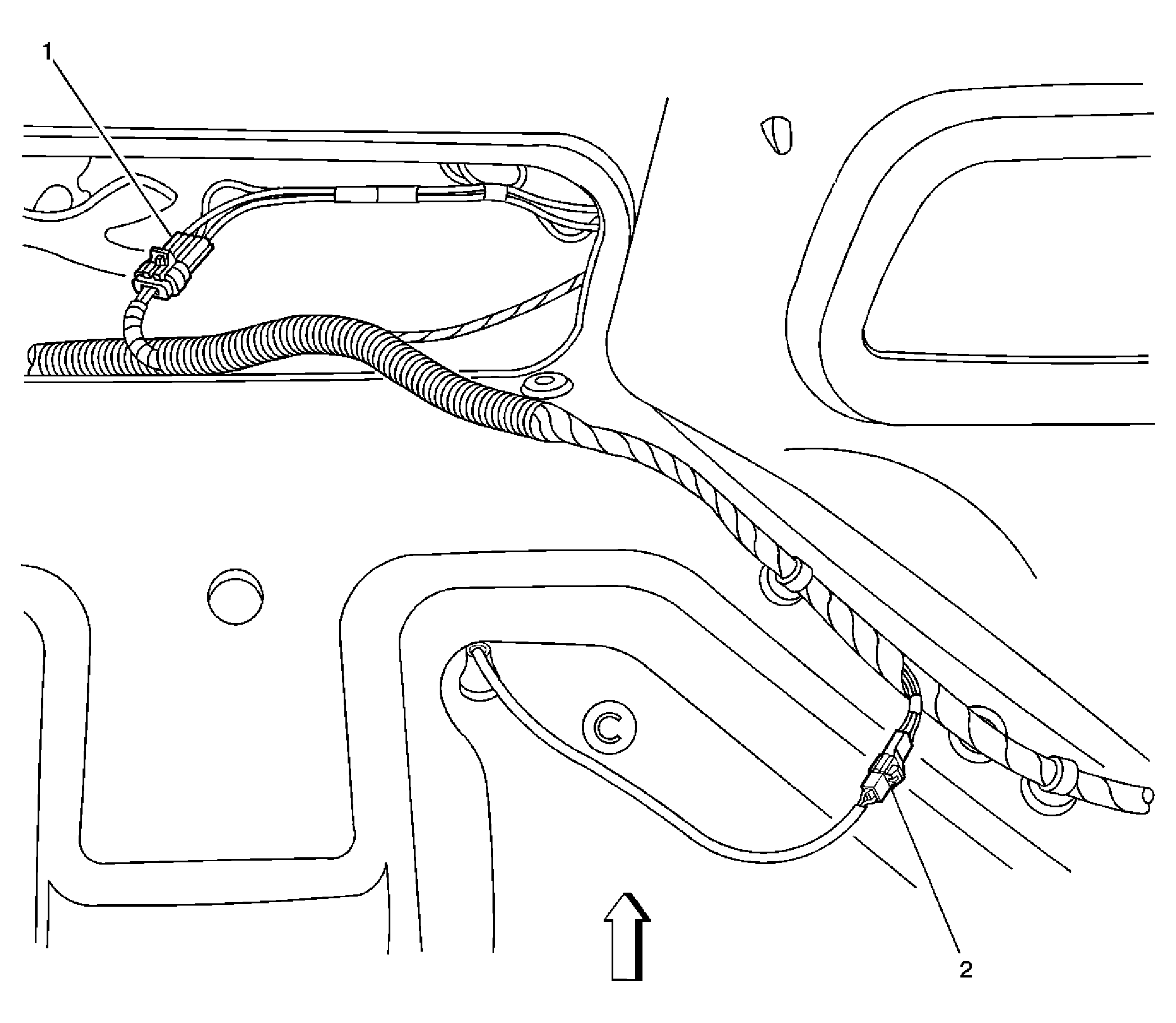

Fig 33: Inside Rear Deck Lid Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C404
2	C403

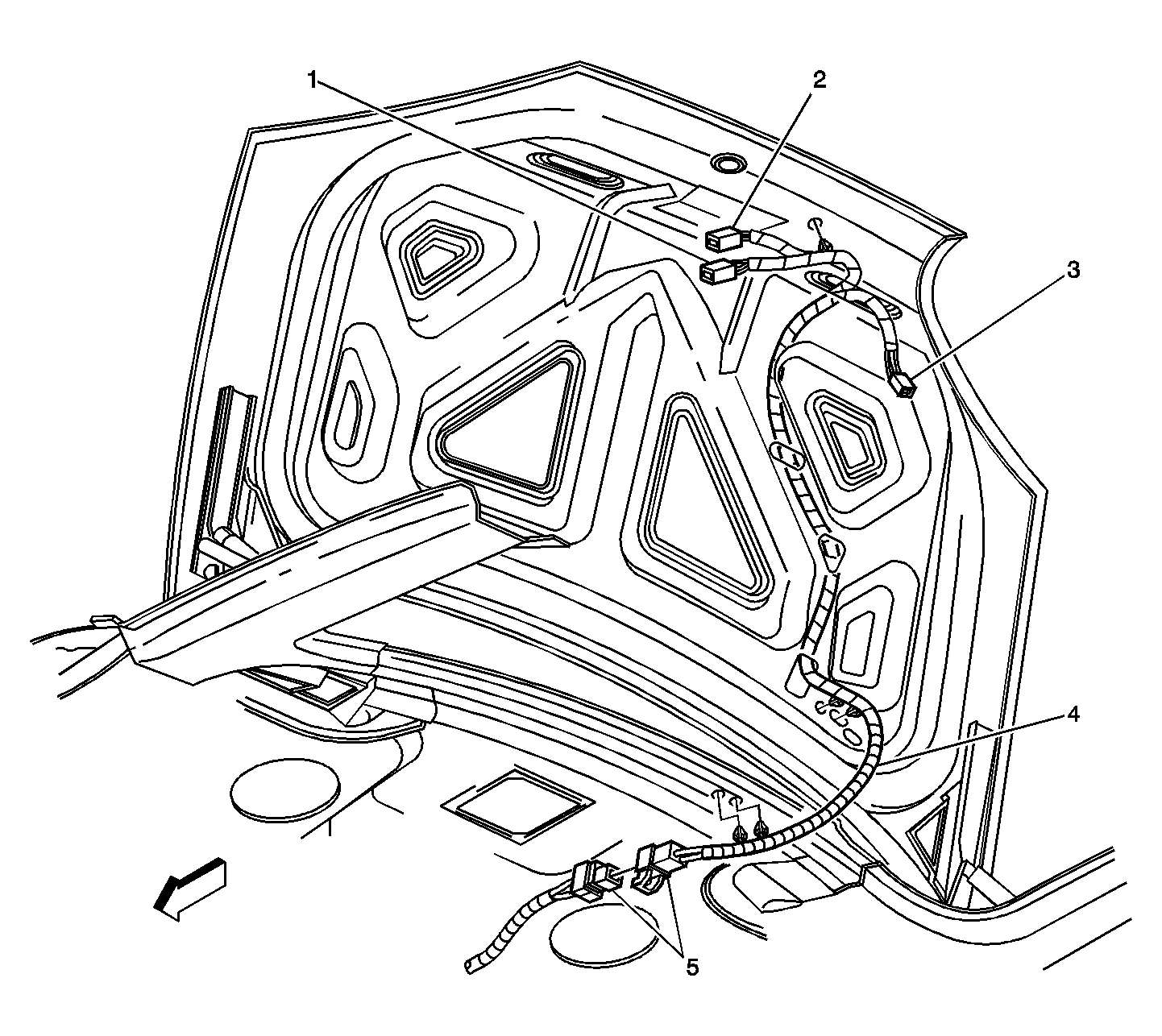

Fig 34: Inside Rear Compartment Lid Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Lid Latch, Connector
2	C403
3	Rear Compartment Lid Ajar Switch, Connector
4	Rear Deck Lid Harness
5	C400

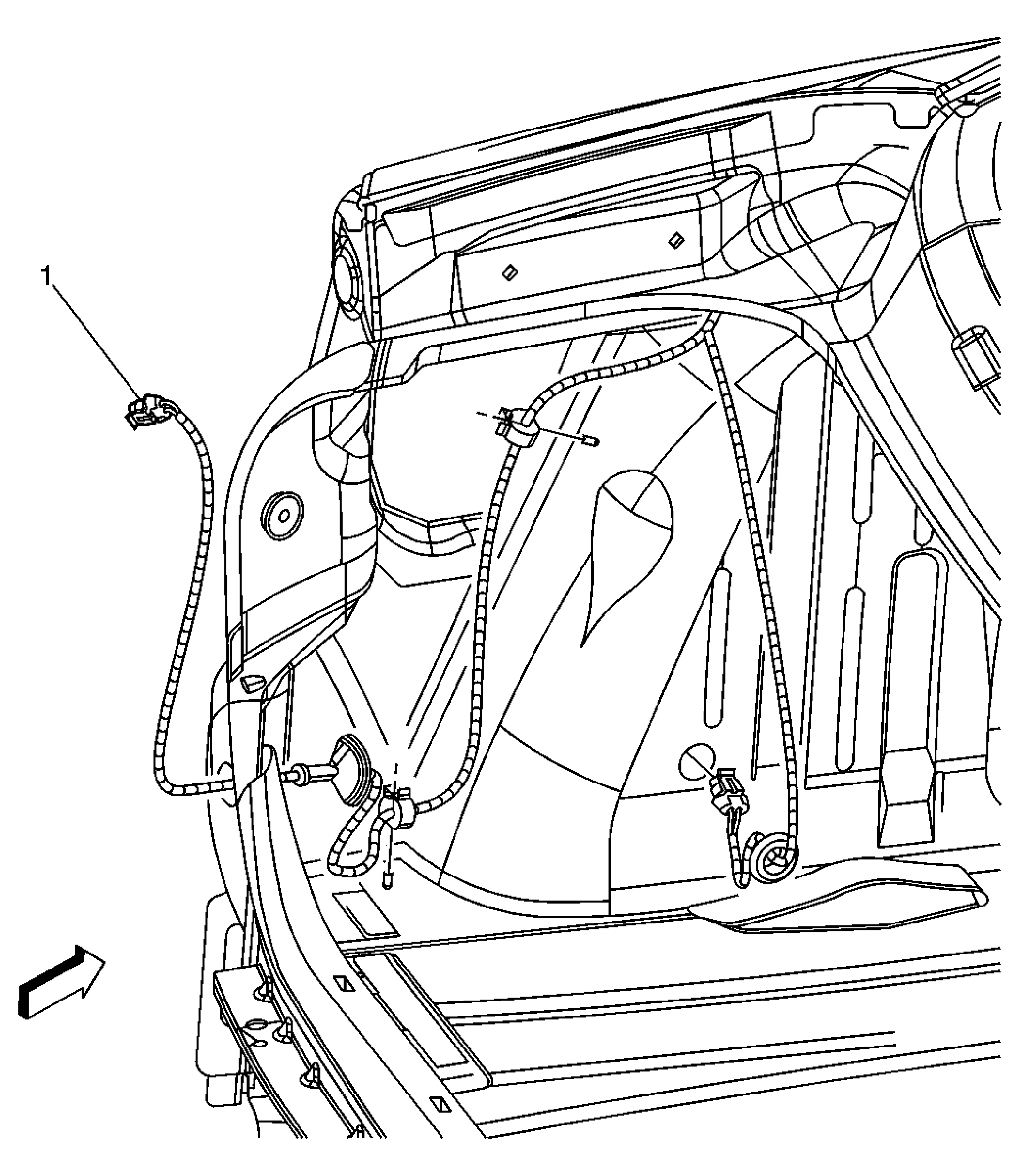

Fig 35: Left Side of the Luggage Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C401

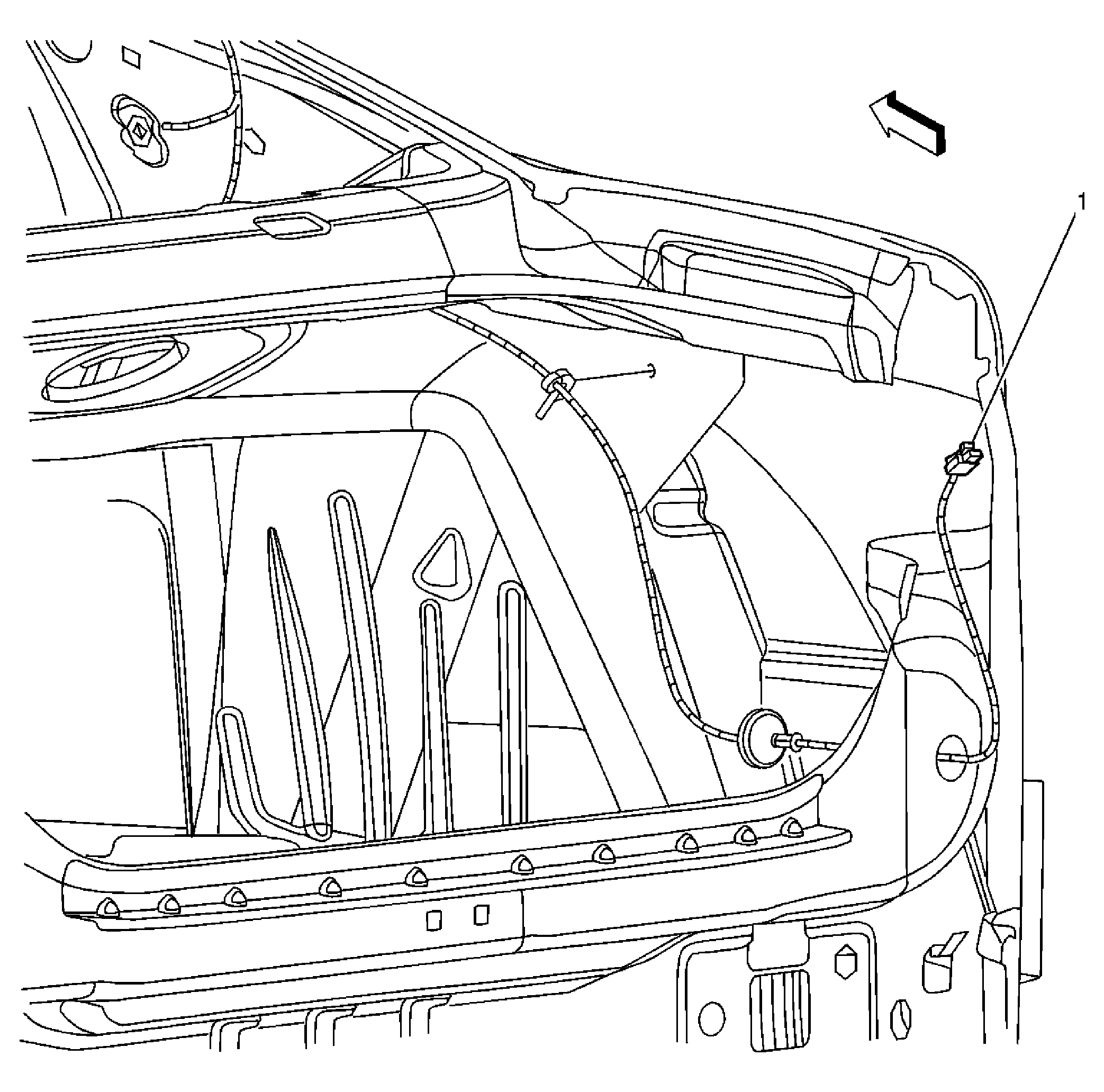

Fig 36: Right Side of the Luggage Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C402
