Ground Distribution Schematics

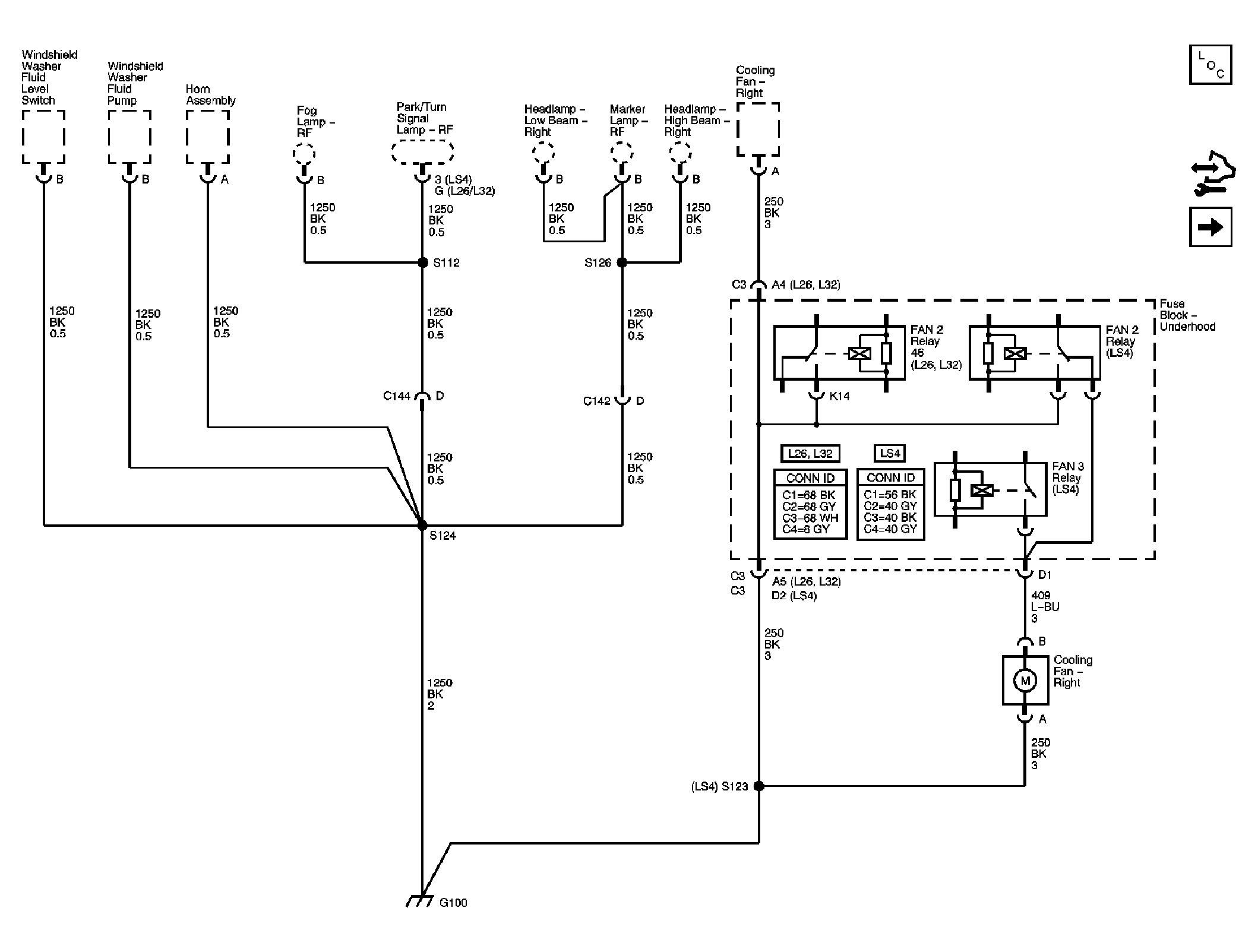

Fig 1: Ground Distribution Schematic (G100)

Courtesy of GENERAL MOTORS CORP.

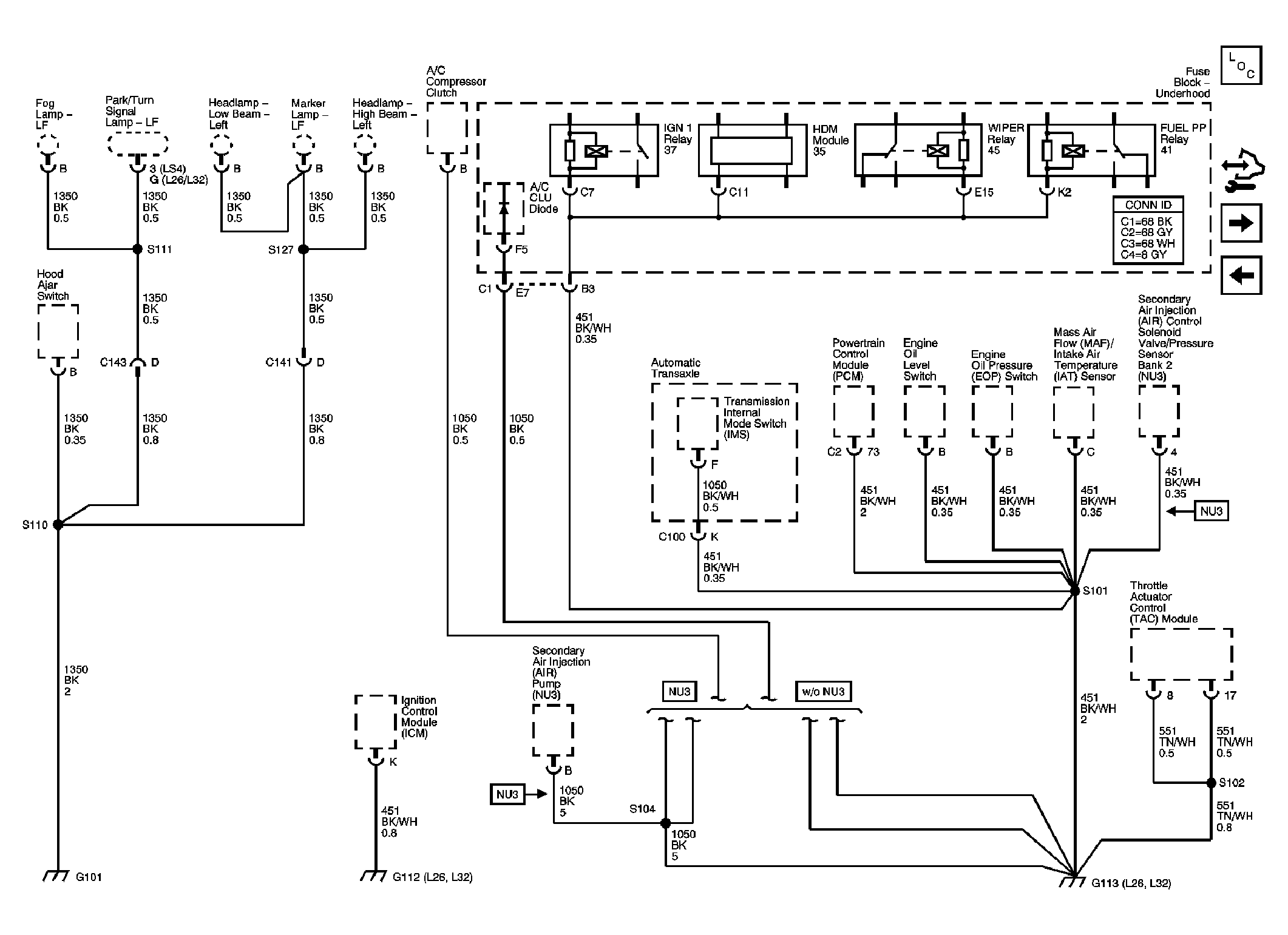

Fig 2: Ground Distribution Schematic (G101, G112 - L26, L32, and G113 - L26, L32)

Courtesy of GENERAL MOTORS CORP.

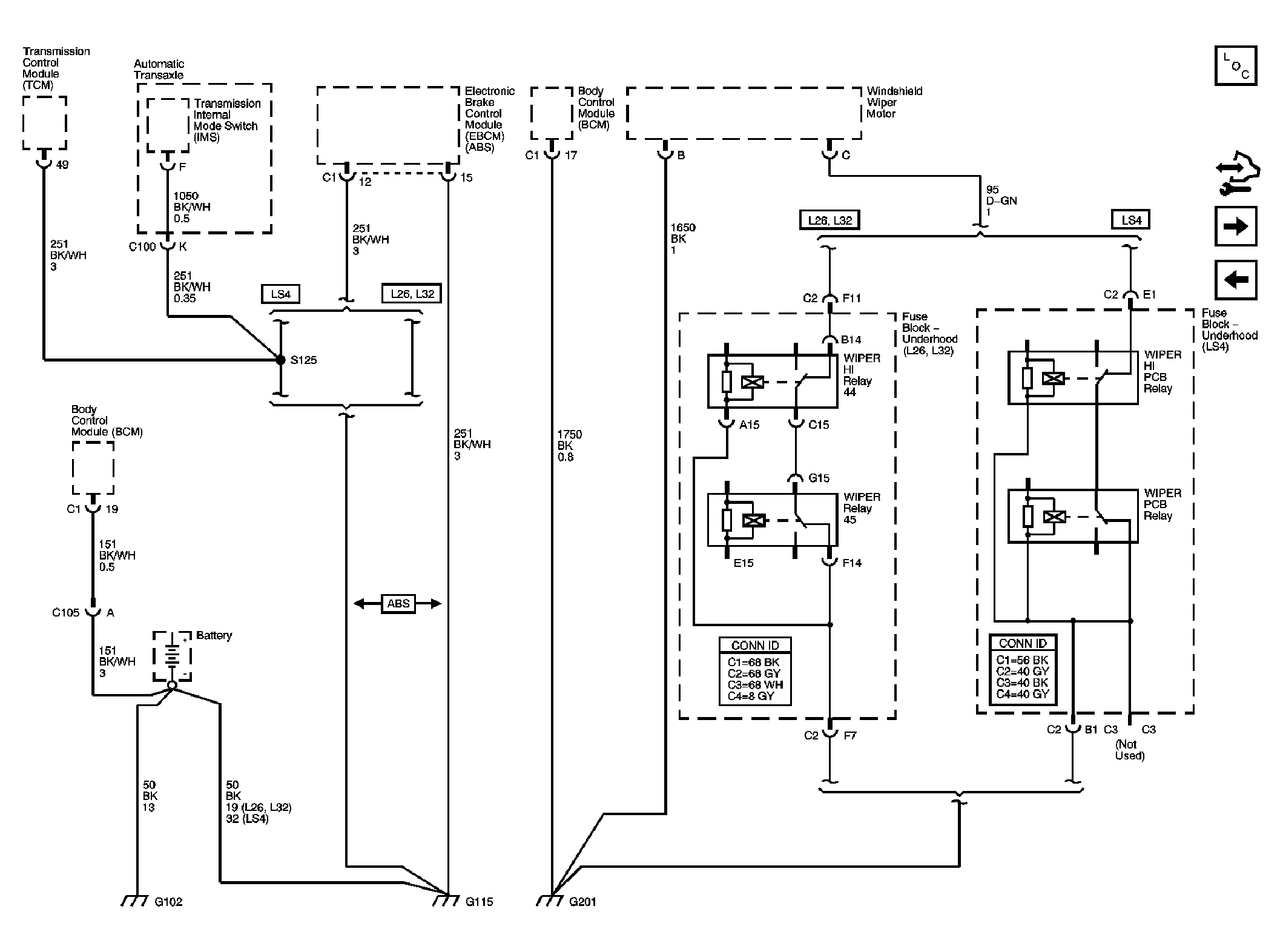

Fig 3: Ground Distribution Schematic (G102, G115, and G201)

Courtesy of GENERAL MOTORS CORP.

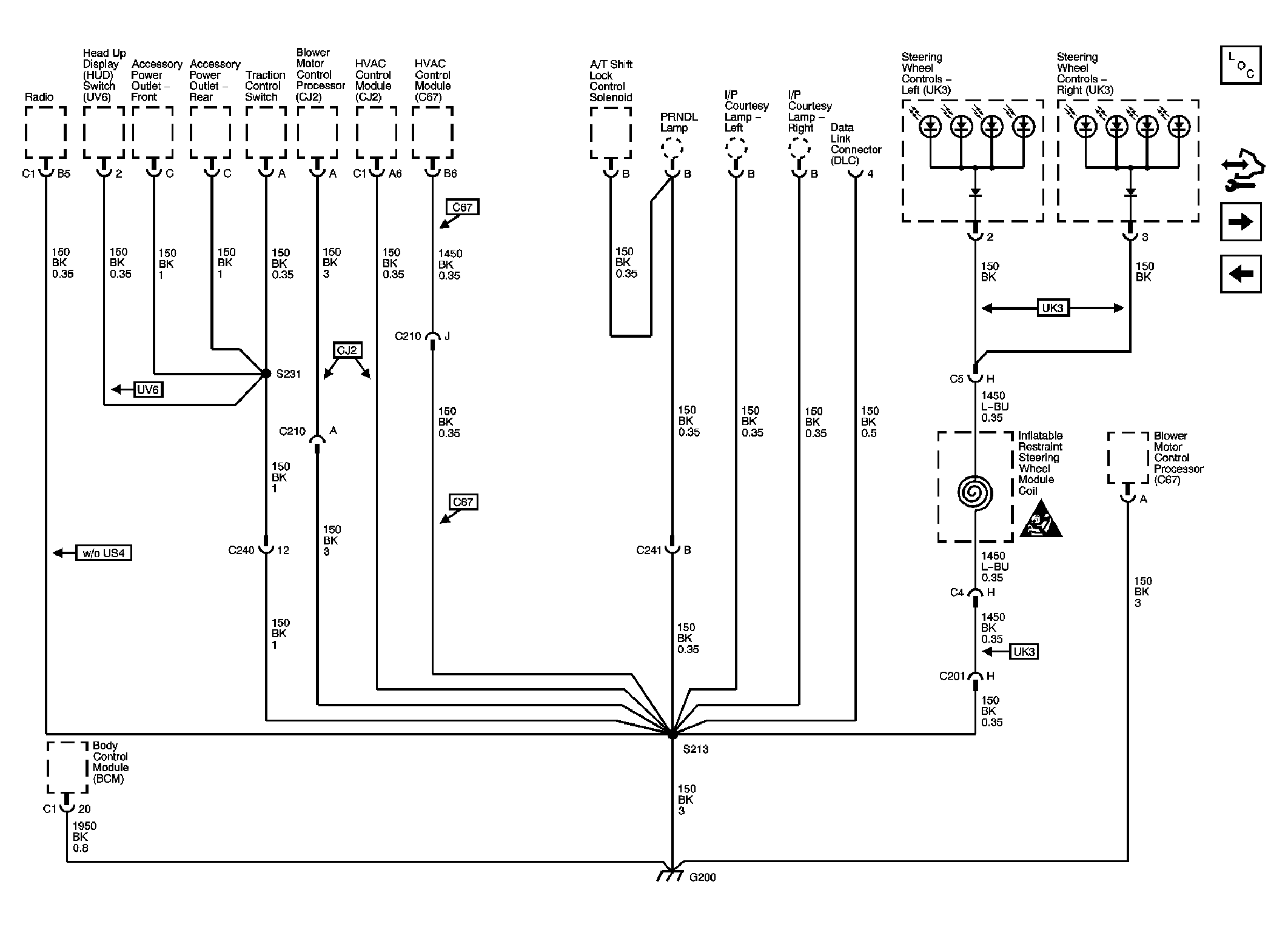

Fig 4: Ground Distribution Schematic (G200)

Courtesy of GENERAL MOTORS CORP.

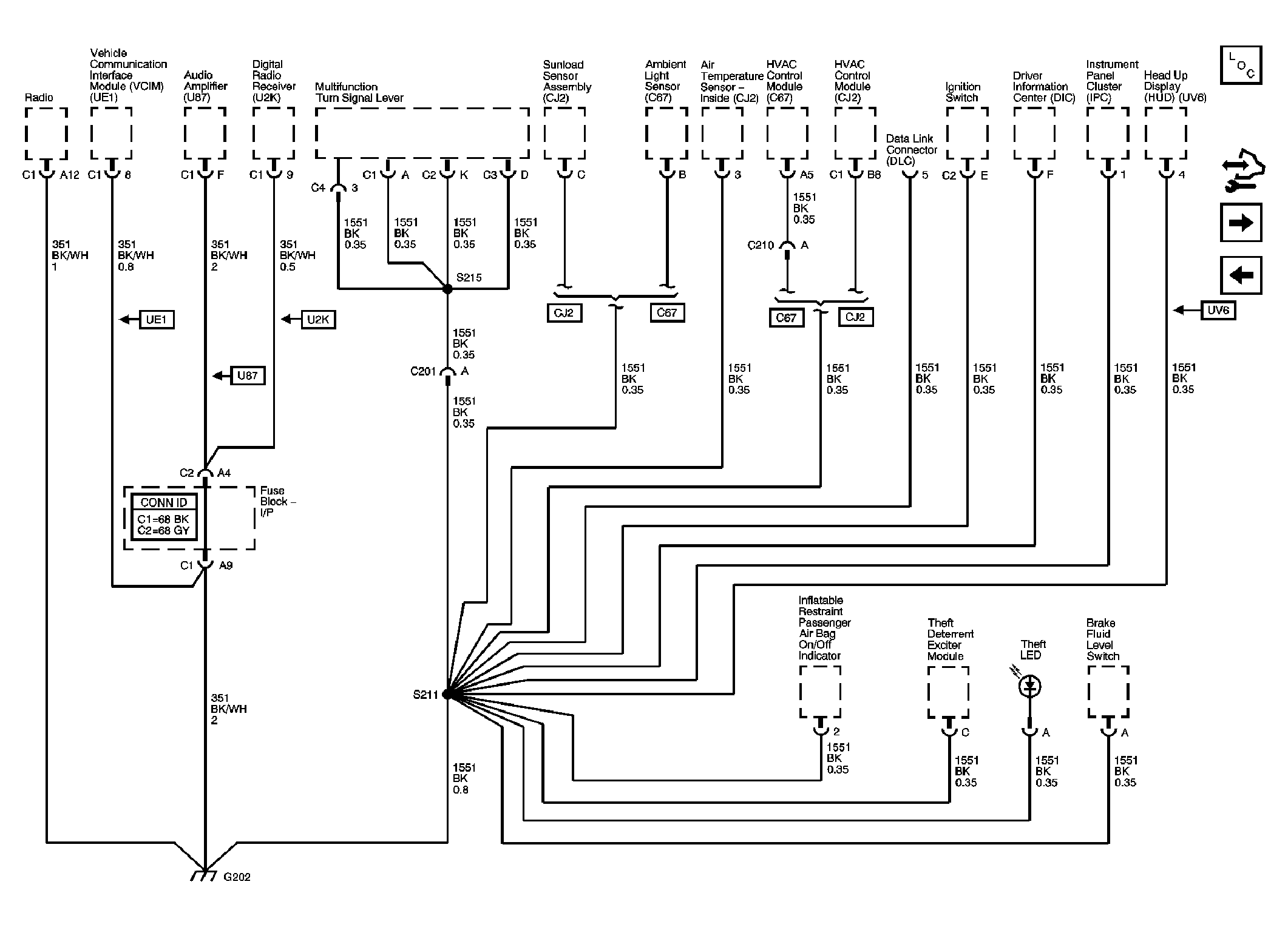

Fig 5: Ground Distribution Schematic (G202)

Courtesy of GENERAL MOTORS CORP.

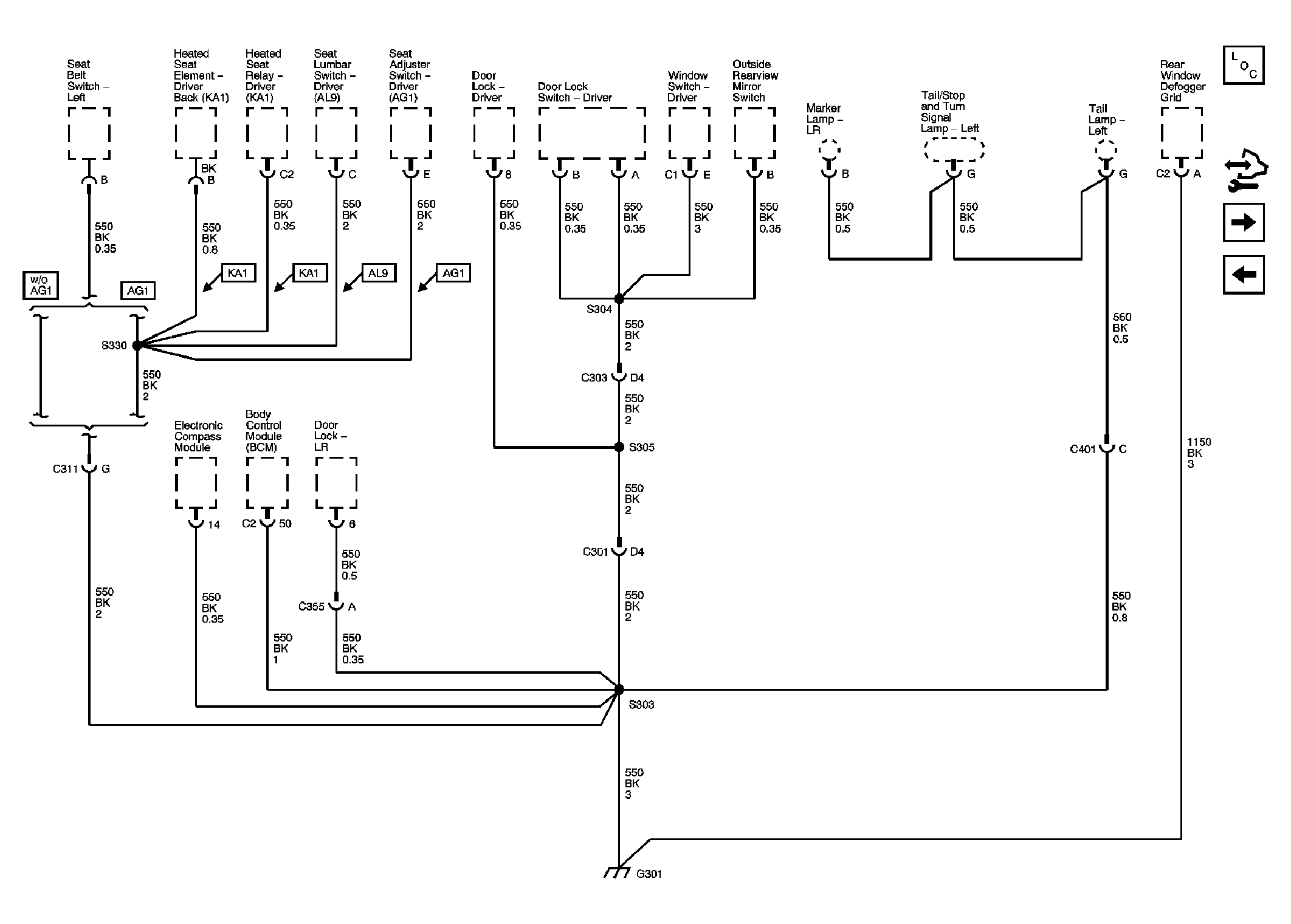

Fig 6: Ground Distribution Schematic (G301)

Courtesy of GENERAL MOTORS CORP.

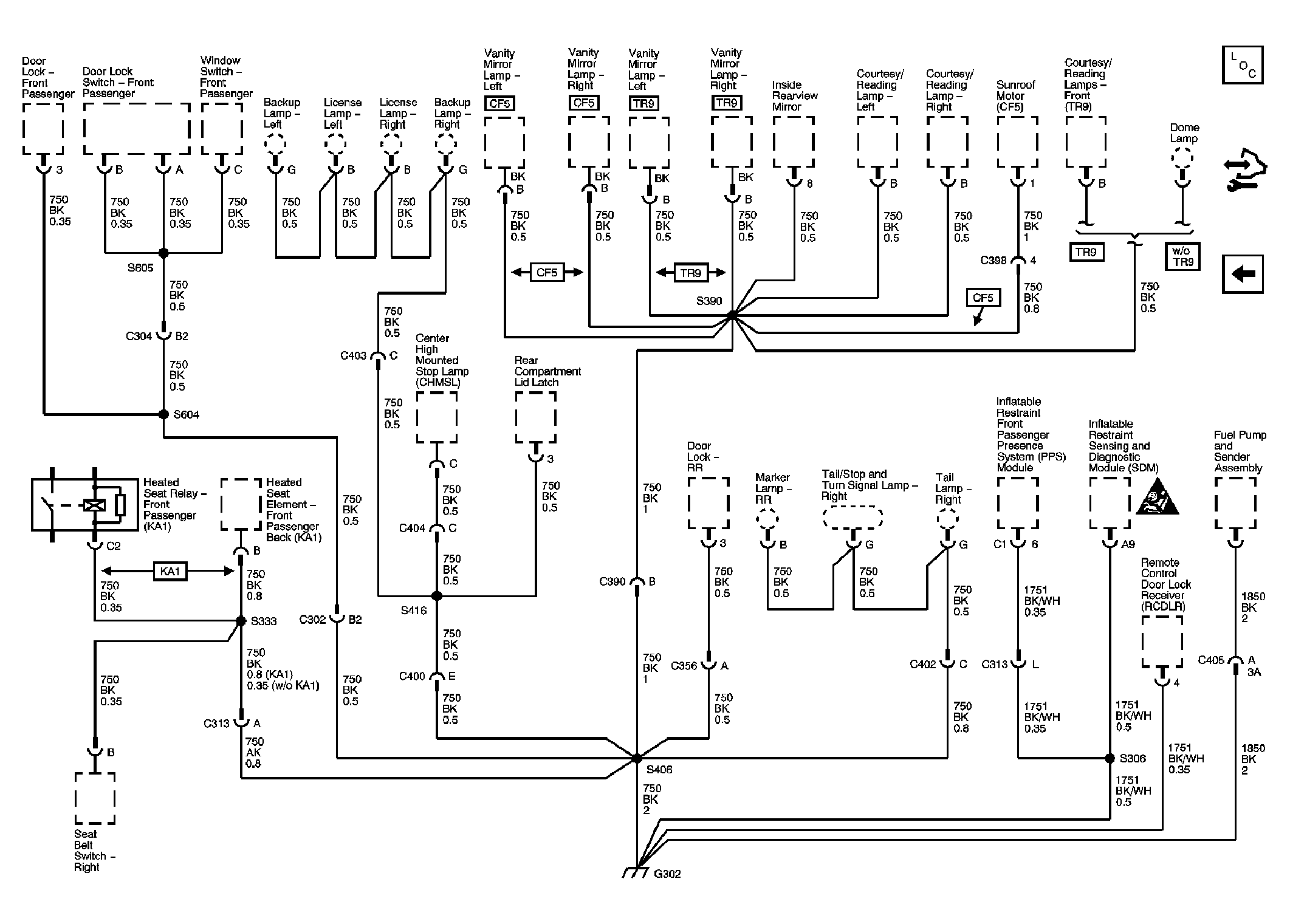

Fig 7: Ground Distribution Schematic (G302)

Courtesy of GENERAL MOTORS CORP.

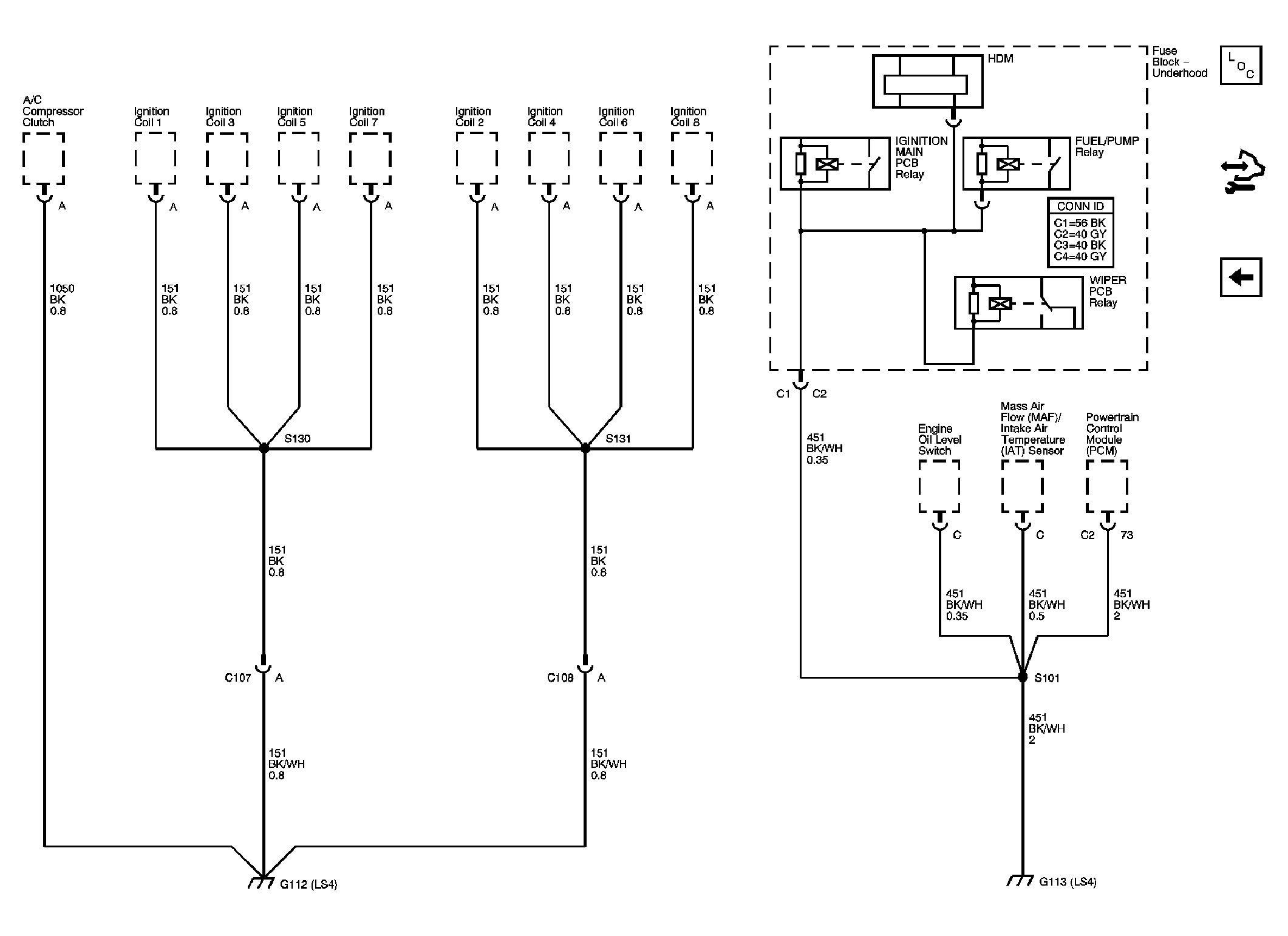

Fig 8: Ground Distribution Schematic (G112 - LS4, and G113 - LS4)

Courtesy of GENERAL MOTORS CORP.
