Instrument Cluster Schematics

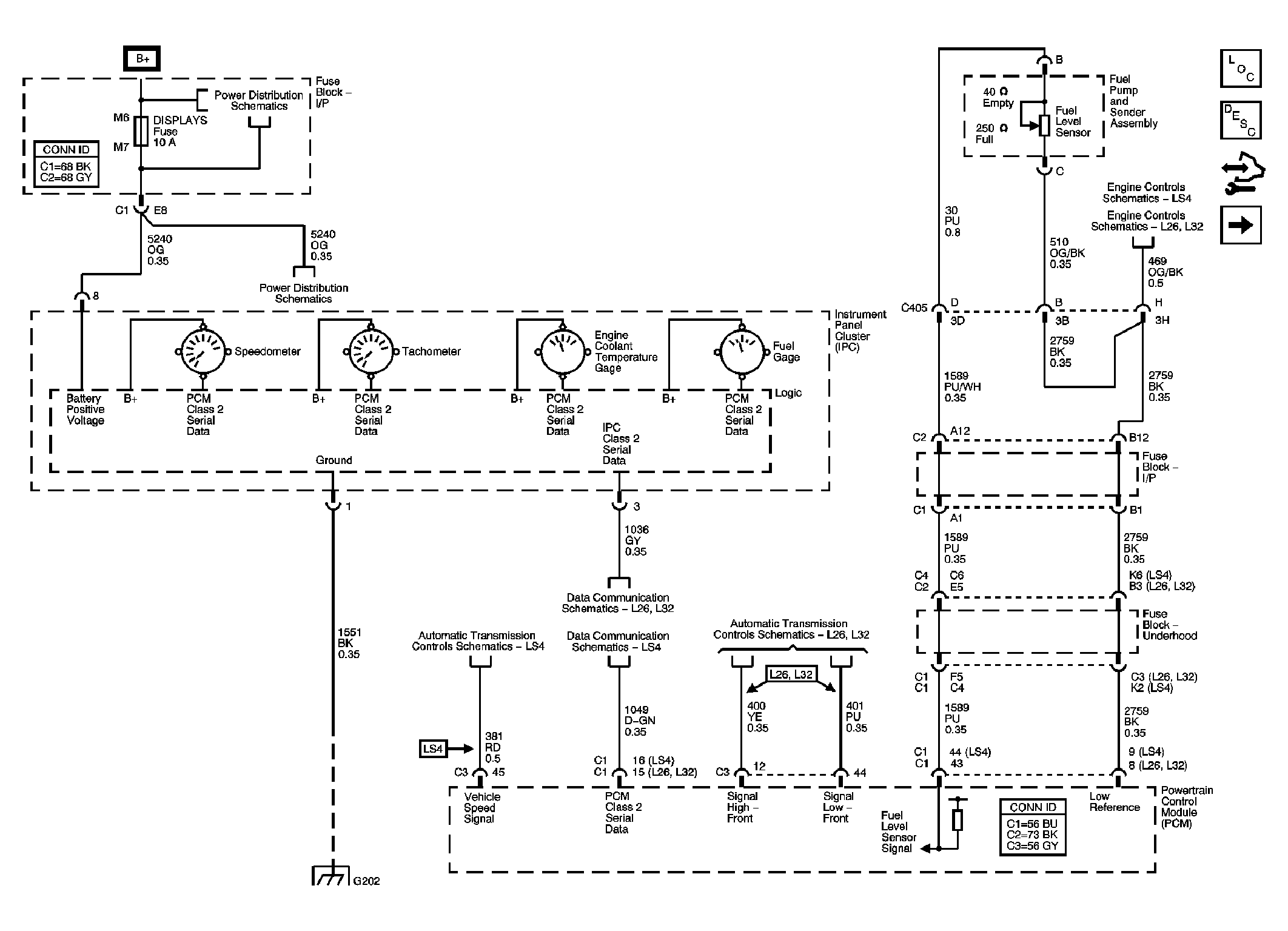

Fig 1: Instrument Cluster Schematic (Power, Ground, and Gages)
GM1798331Courtesy of GENERAL MOTORS CORP.

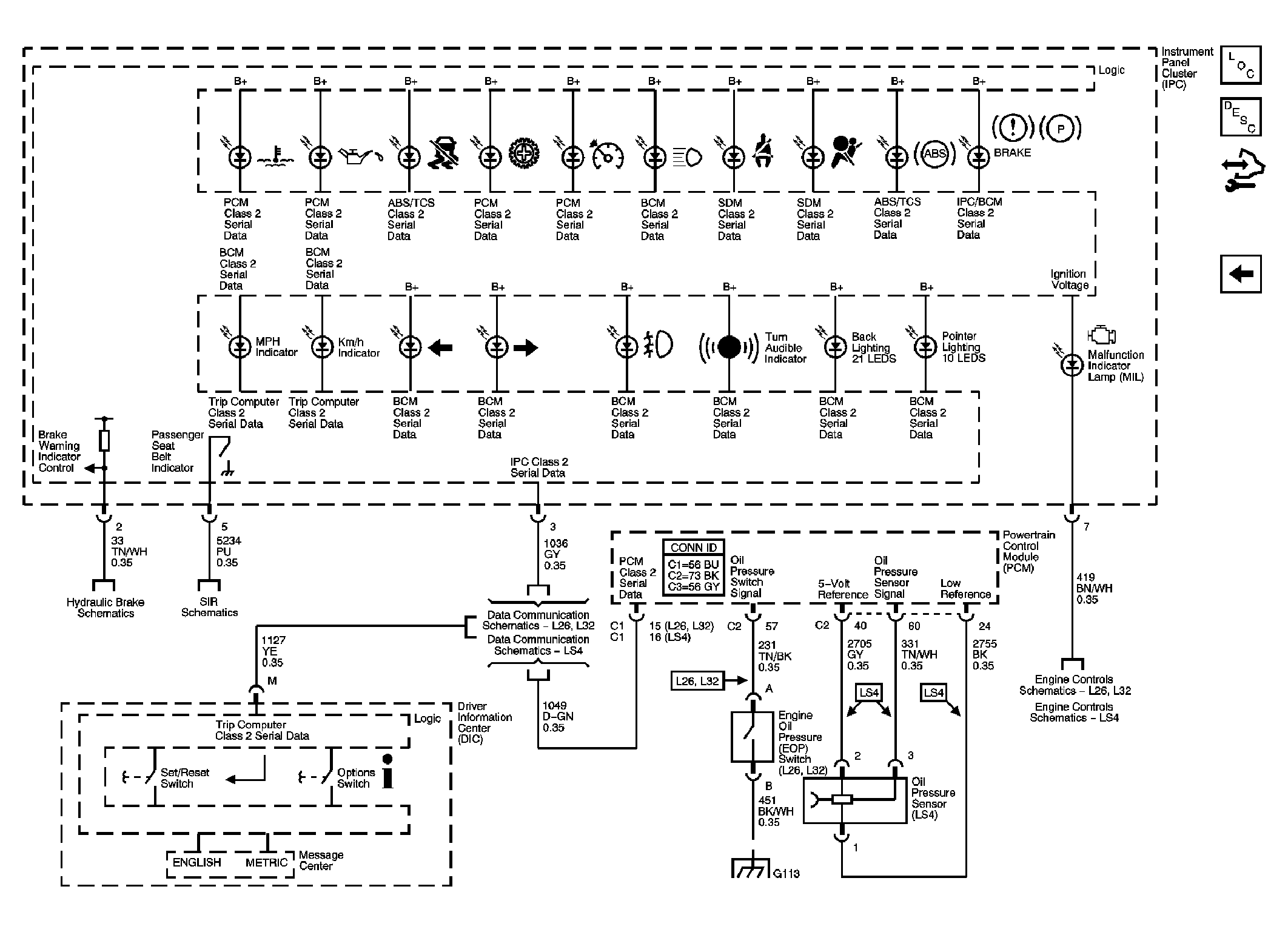

Fig 2: Instrument Cluster Schematic (Indicators)
GM1798338Courtesy of GENERAL MOTORS CORP.
