Head Up Display Schematics

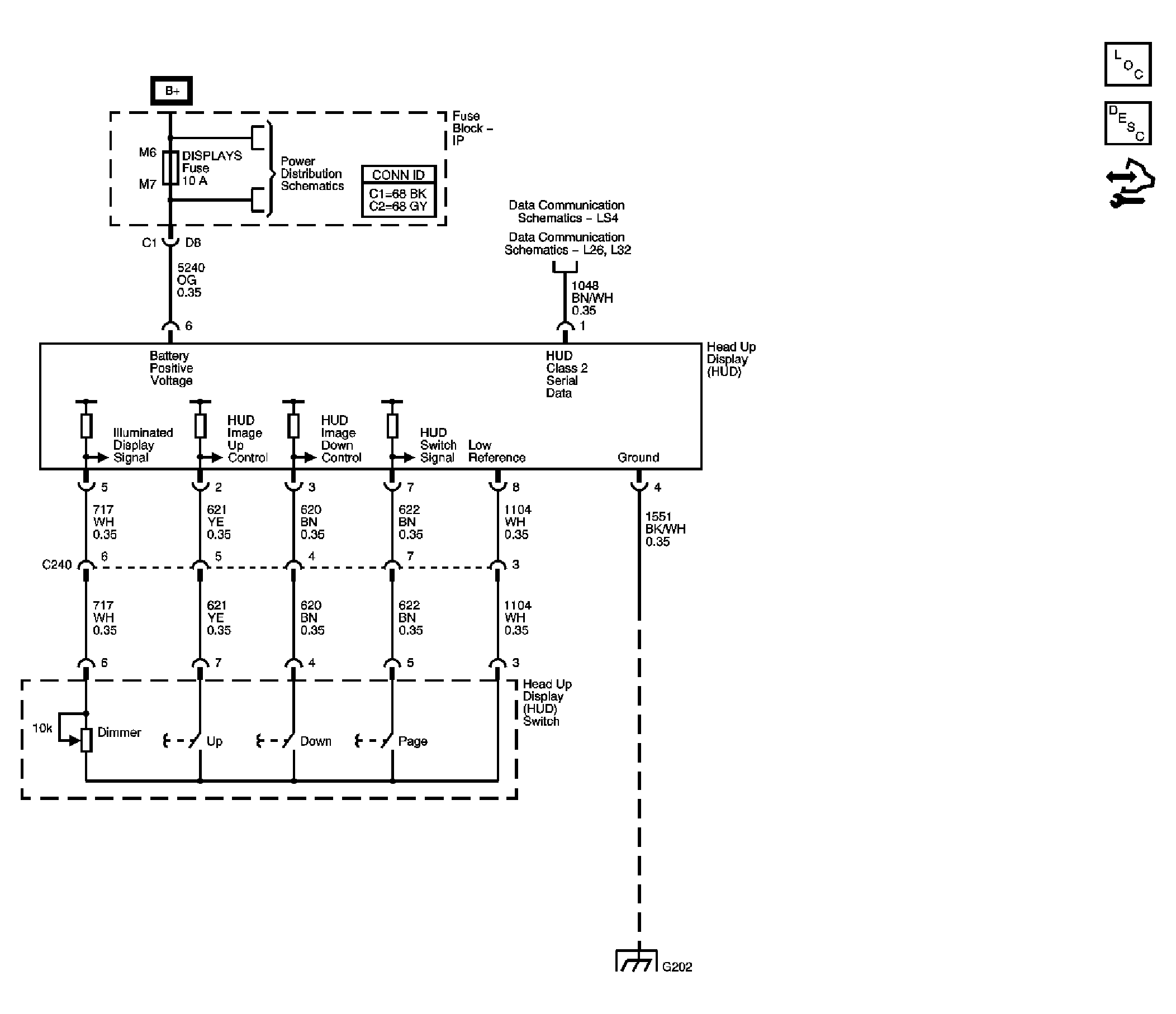

Fig 1: Head Up Display Schematic

GM1798324

Courtesy of GENERAL MOTORS CORP.
