Hydraulic Brake Component Views

Fig 1: Rear of the Engine Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Fluid Level Switch
2	Brake Fluid Pressure Sensor (JL4)
3	Brake Pressure Modulator Valve (BPMV)
4	Electronic Brake Control Module (EBCM)

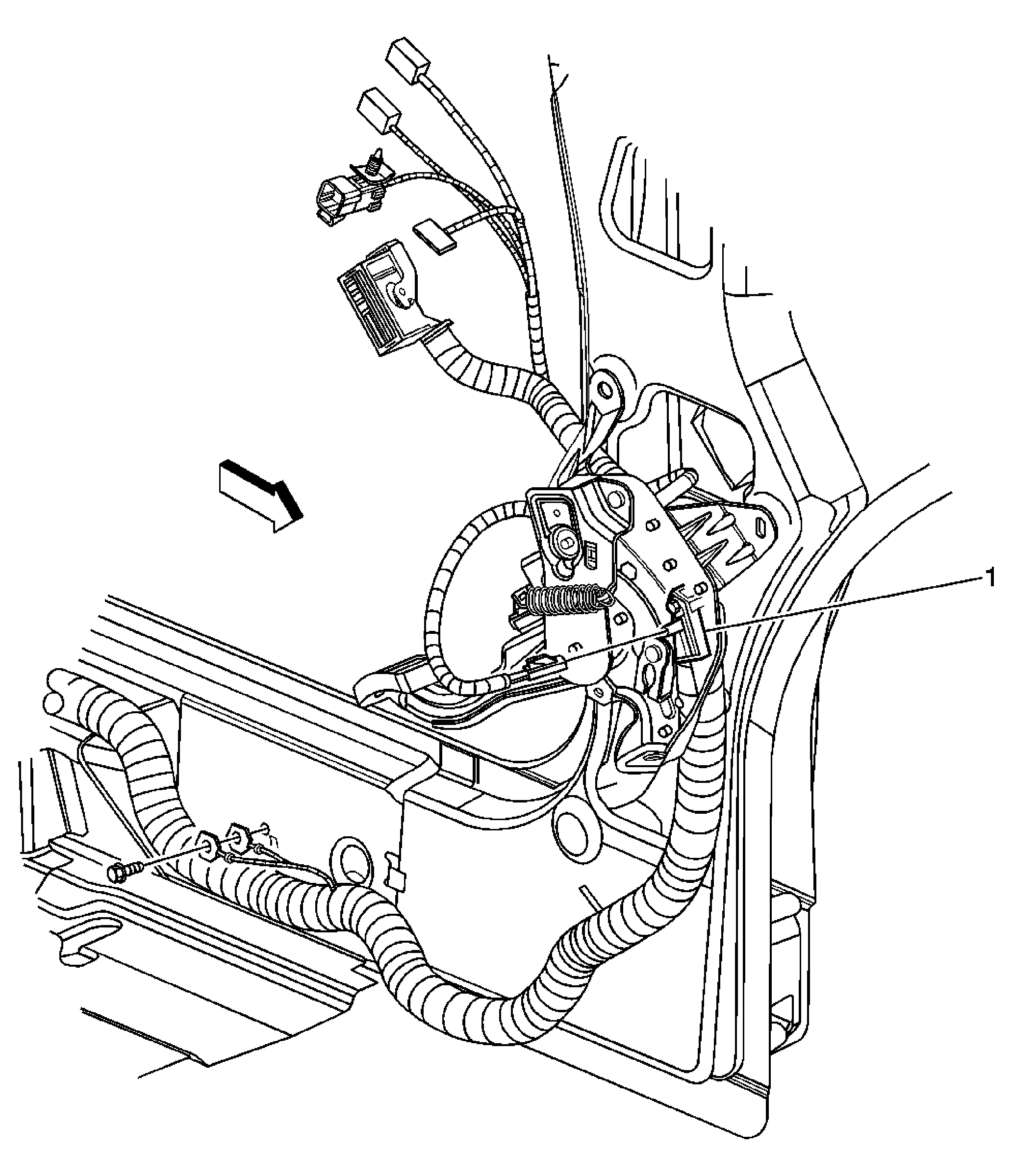

Fig 2: Left Front of the Passenger Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park Brake Switch
