Sunroof Component Views

Fig 1: Roof Headliner, Front Component Views
GM1212236Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inside Rearview Mirror Connector
2 LH Courtesy/Reading Lamp (TR9)
3 RH Courtesy/Reading Lamp (TR9)
4 Sunroof Switch

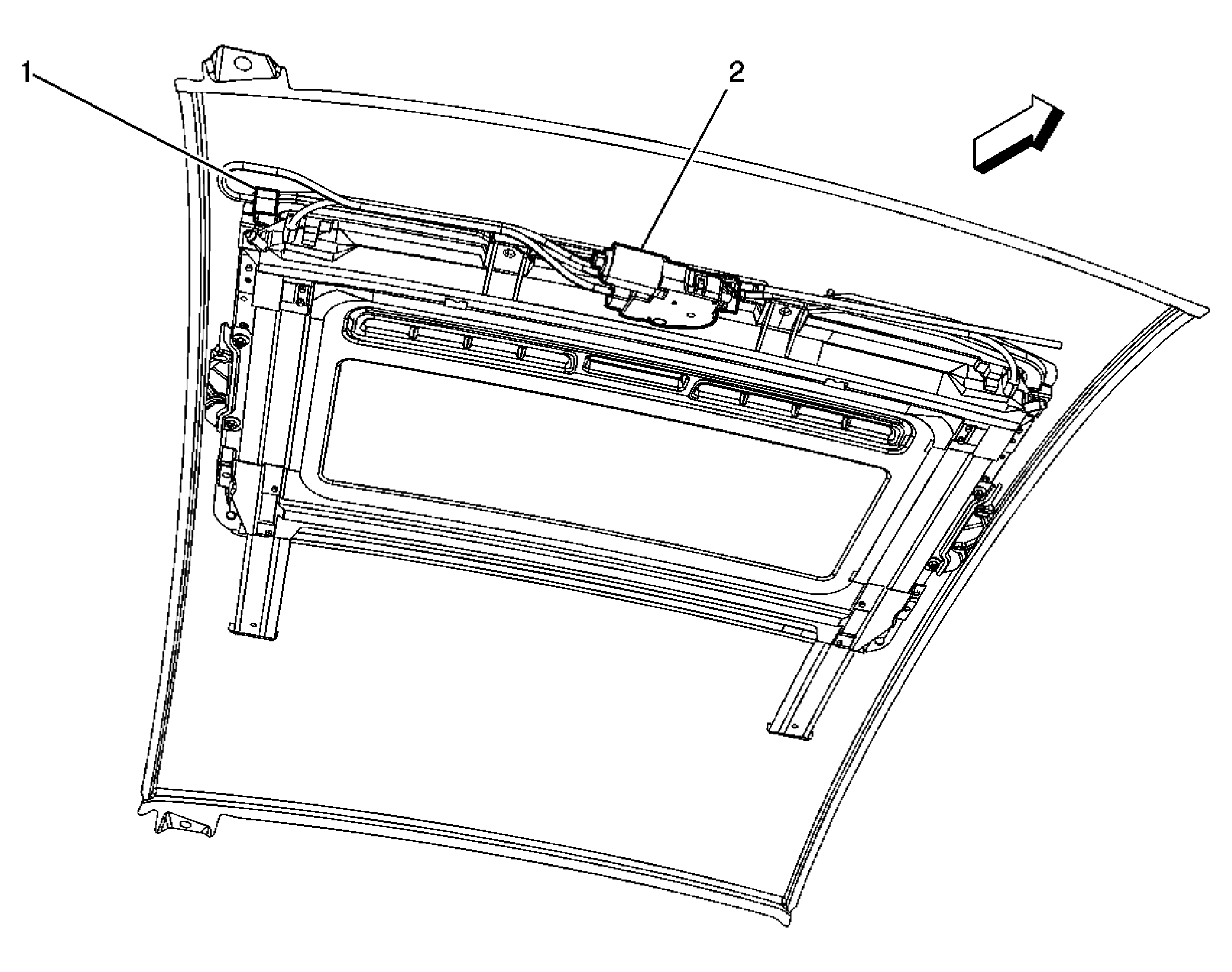

Fig 2: Power Sunroof Component Views (Late Production)
GM1542523Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C398
2 Sunroof Motor
