Door Lock/Indicator Schematics

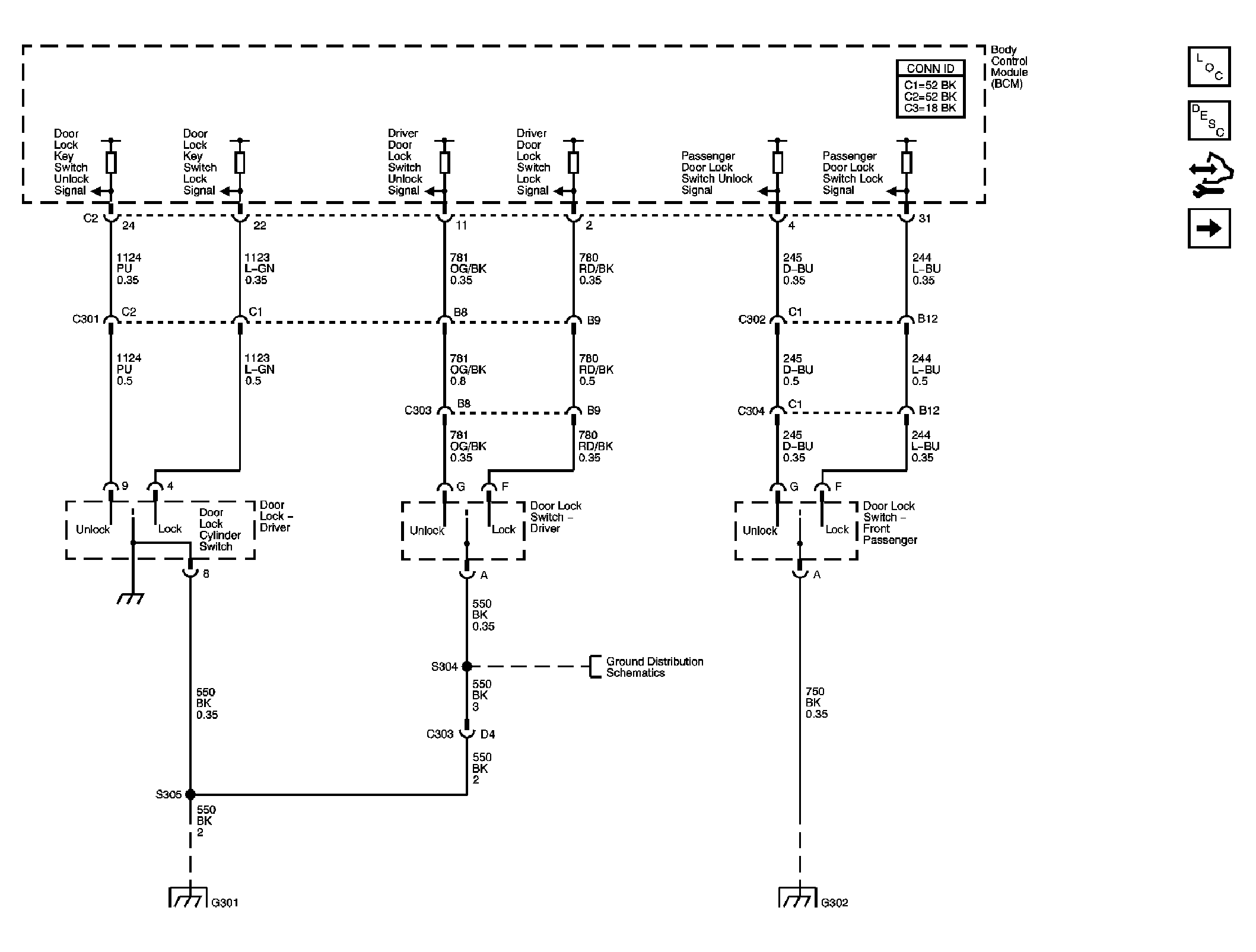

Fig 1: Door Lock Switches Schematic
GM1798306Courtesy of GENERAL MOTORS CORP.

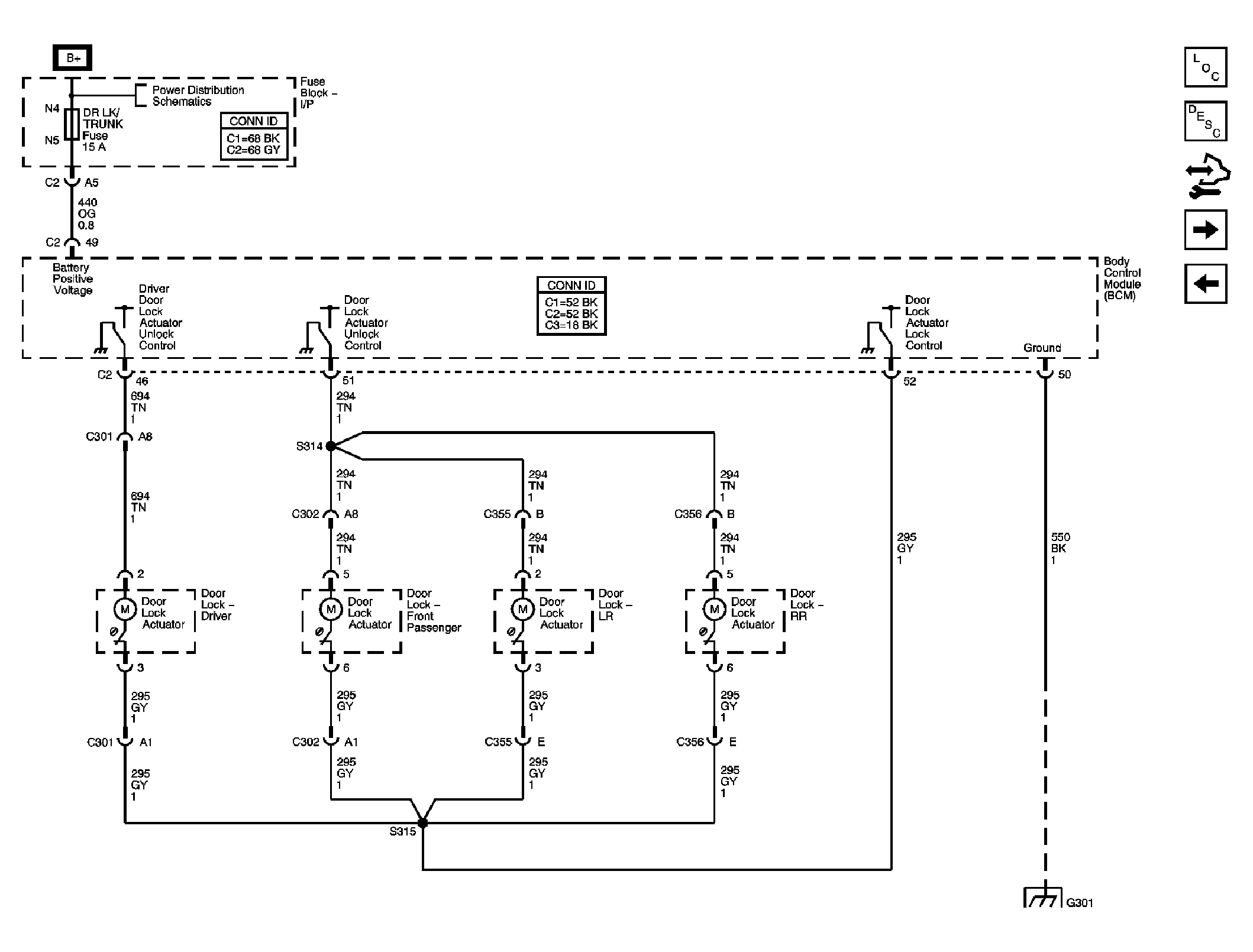

Fig 2: Door Lock Actuators Schematic
GM1798313Courtesy of GENERAL MOTORS CORP.

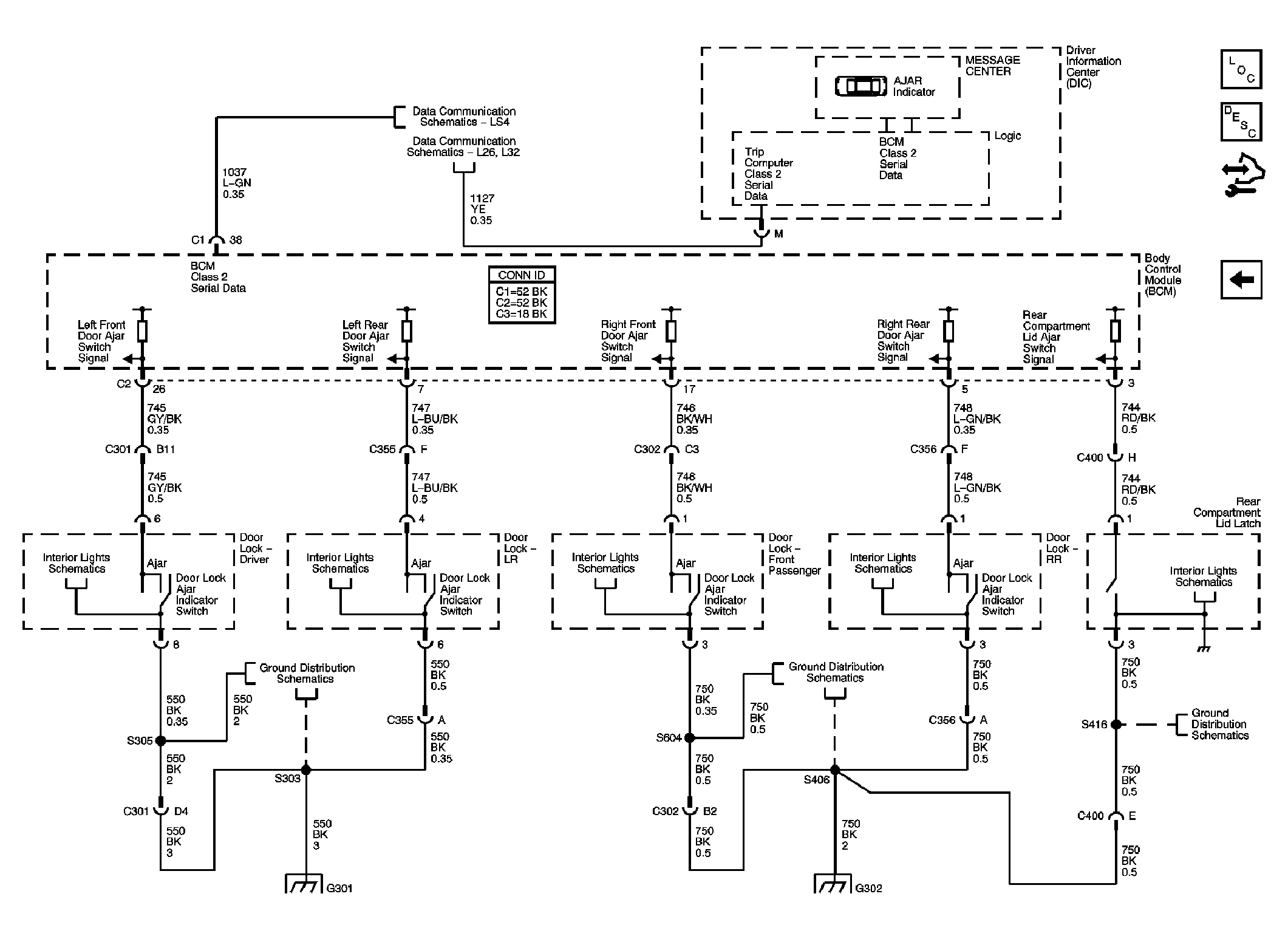

Fig 3: Door Ajar Indicators Schematic
GM1798315Courtesy of GENERAL MOTORS CORP.
