Wiper/Washer Schematics

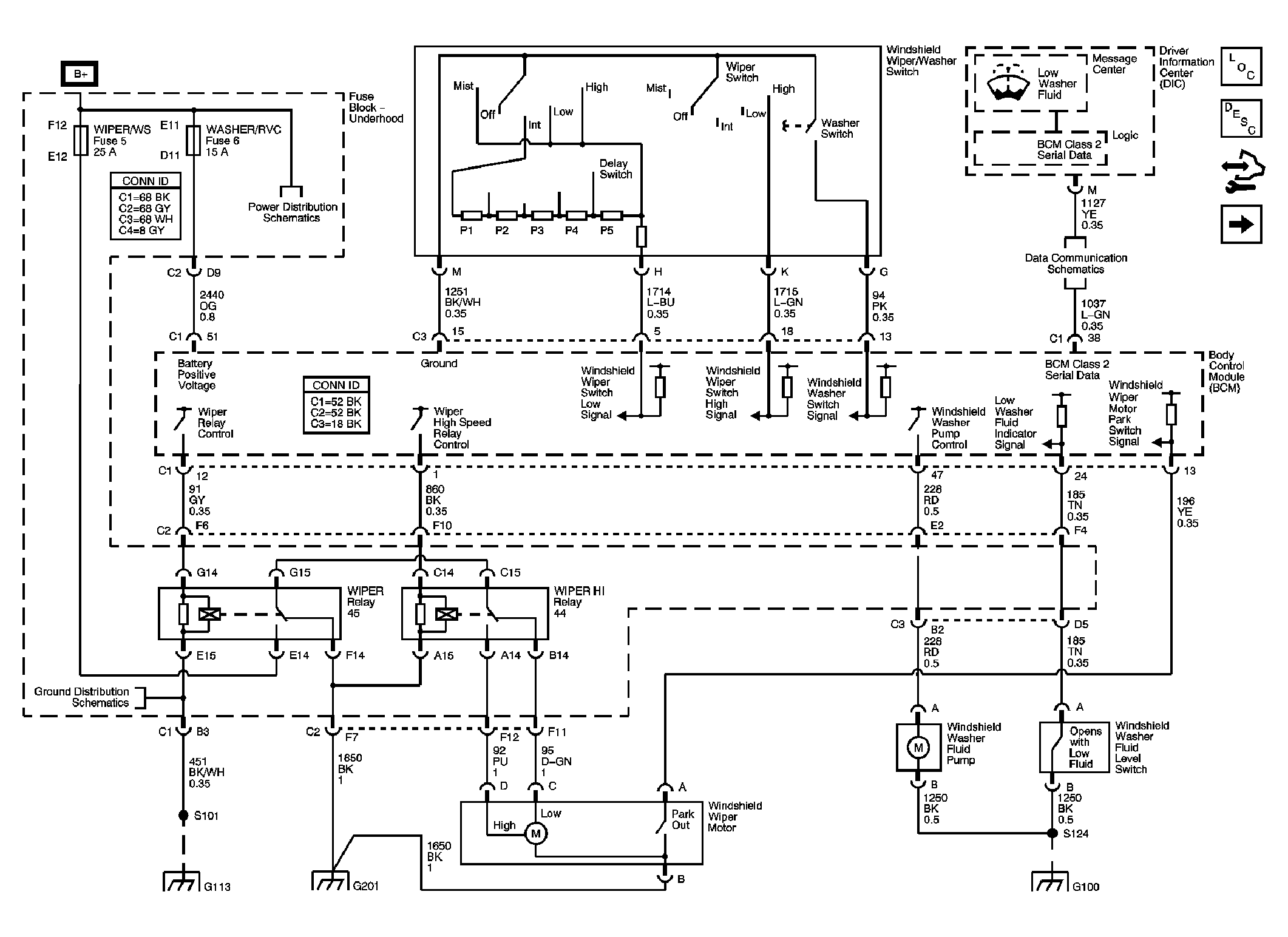

Fig 1: Wiper/Washer Schematic (L26, L32)

GM1798529

Courtesy of GENERAL MOTORS CORP.

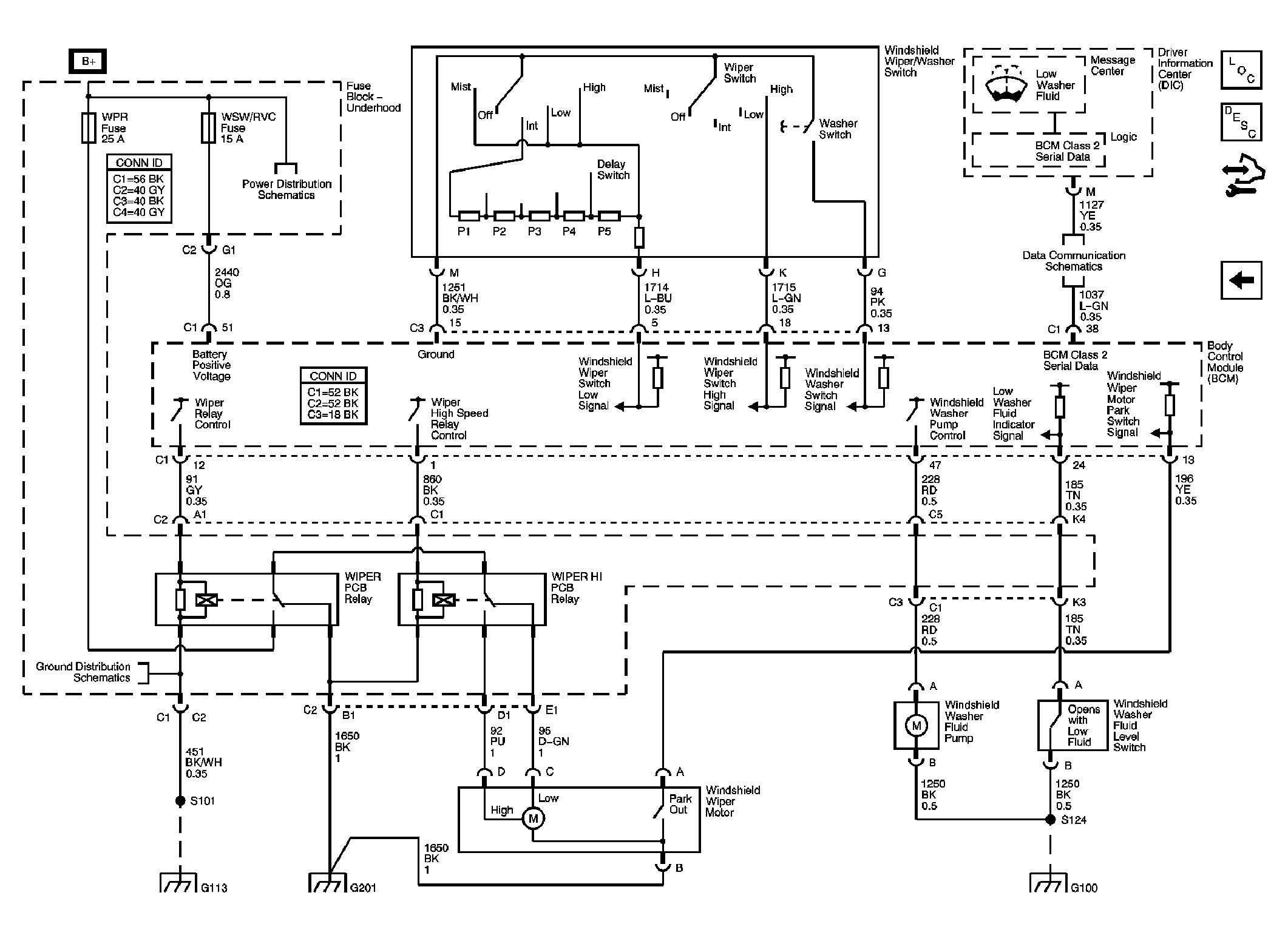

Fig 2: Wiper/Washer Schematic (LS4)

GM1798542

Courtesy of GENERAL MOTORS CORP.
