Interior Lights Schematics

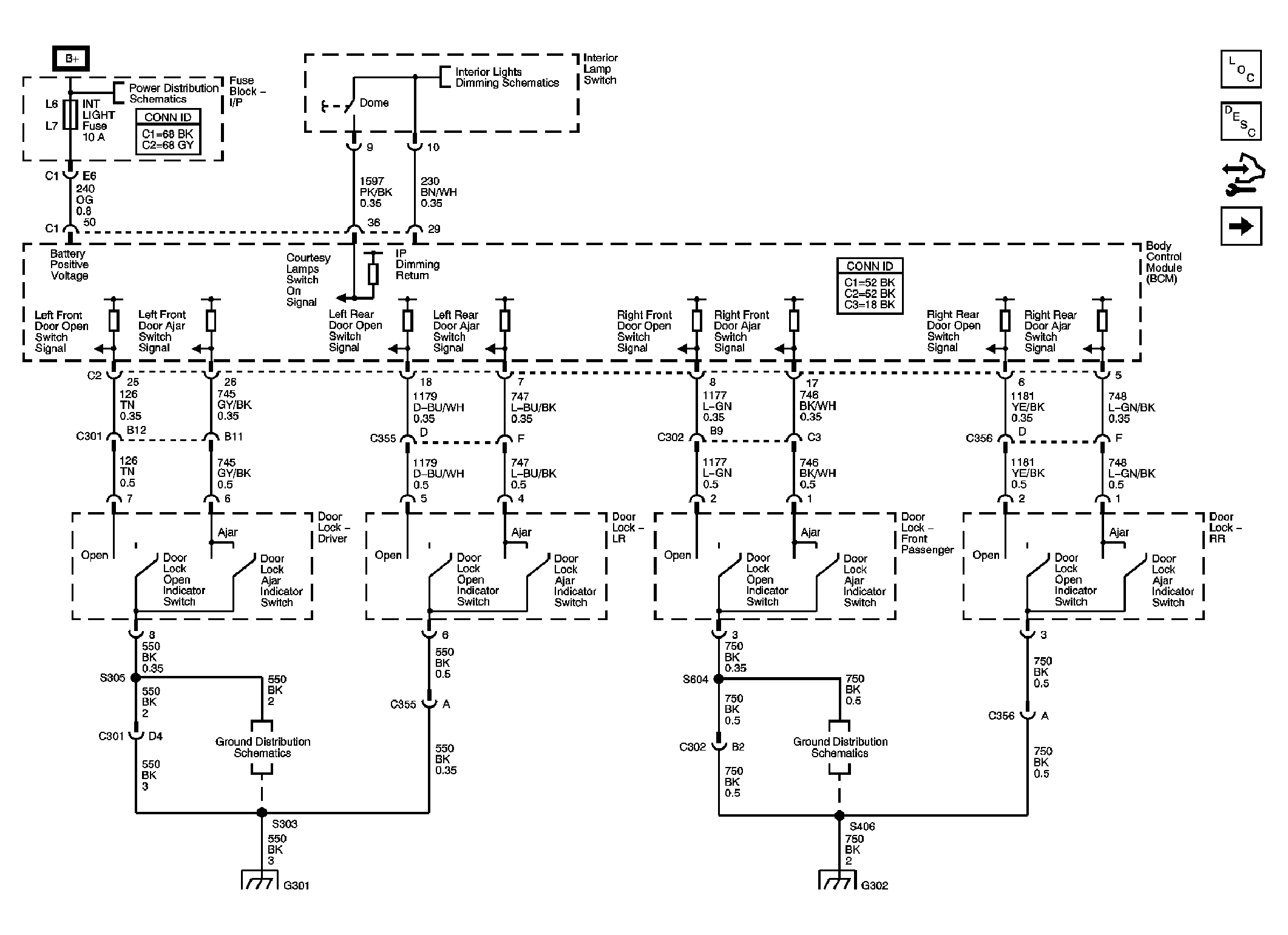

Fig 1: Interior Lights Schematic (Switches)
GM1798457Courtesy of GENERAL MOTORS CORP.

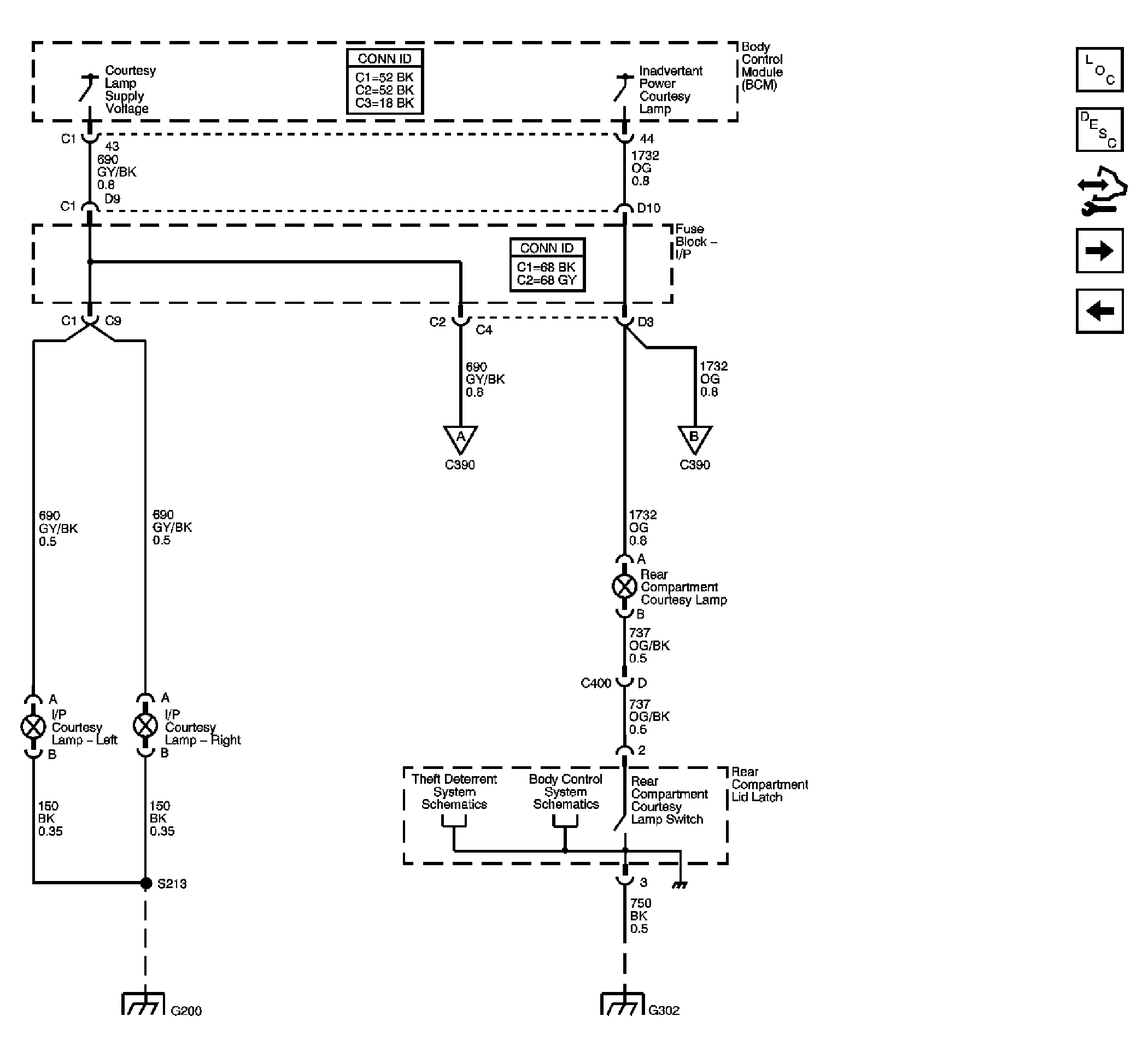

Fig 2: Interior Lights Schematic (Courtesy Lamps)
GM1798458Courtesy of GENERAL MOTORS CORP.

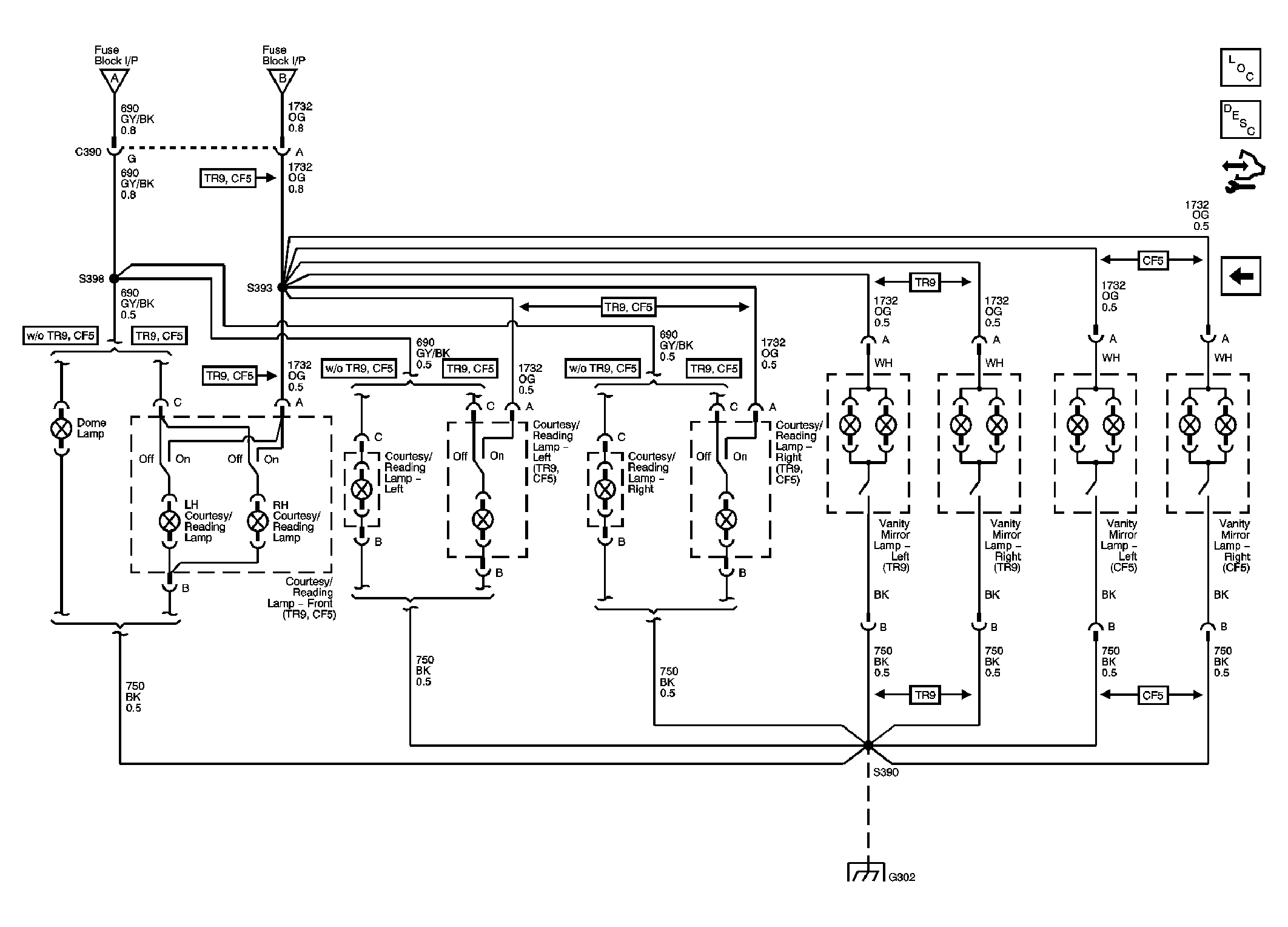

Fig 3: Interior Lights Schematic (Overhead Lighting)
GM1798459Courtesy of GENERAL MOTORS CORP.
