Headlights/Daytime Running Lights (DRL) Schematics

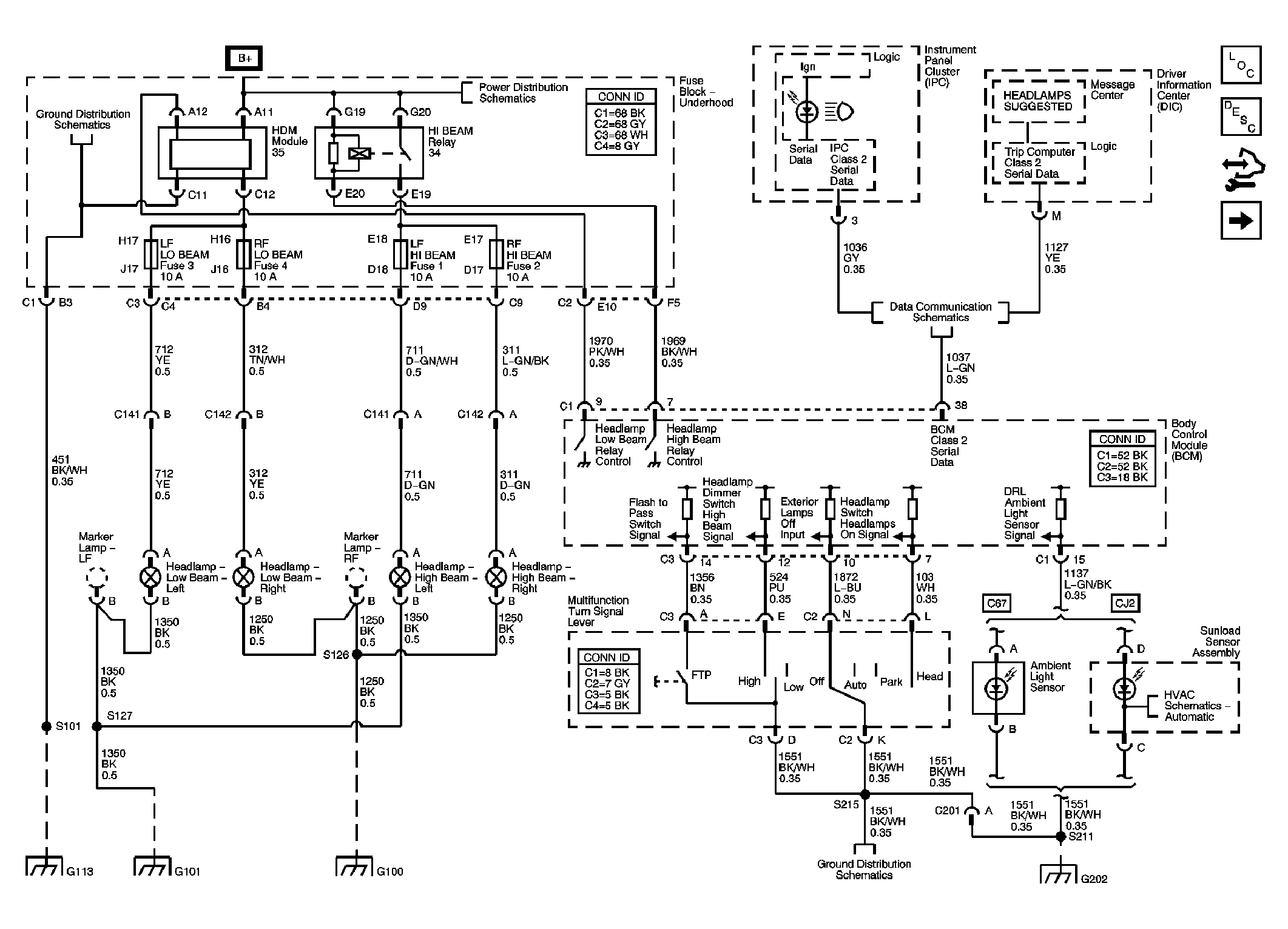

Fig 1: Headlights/DRL Schematic (L26 and L32)

GM1798346

Courtesy of GENERAL MOTORS CORP.

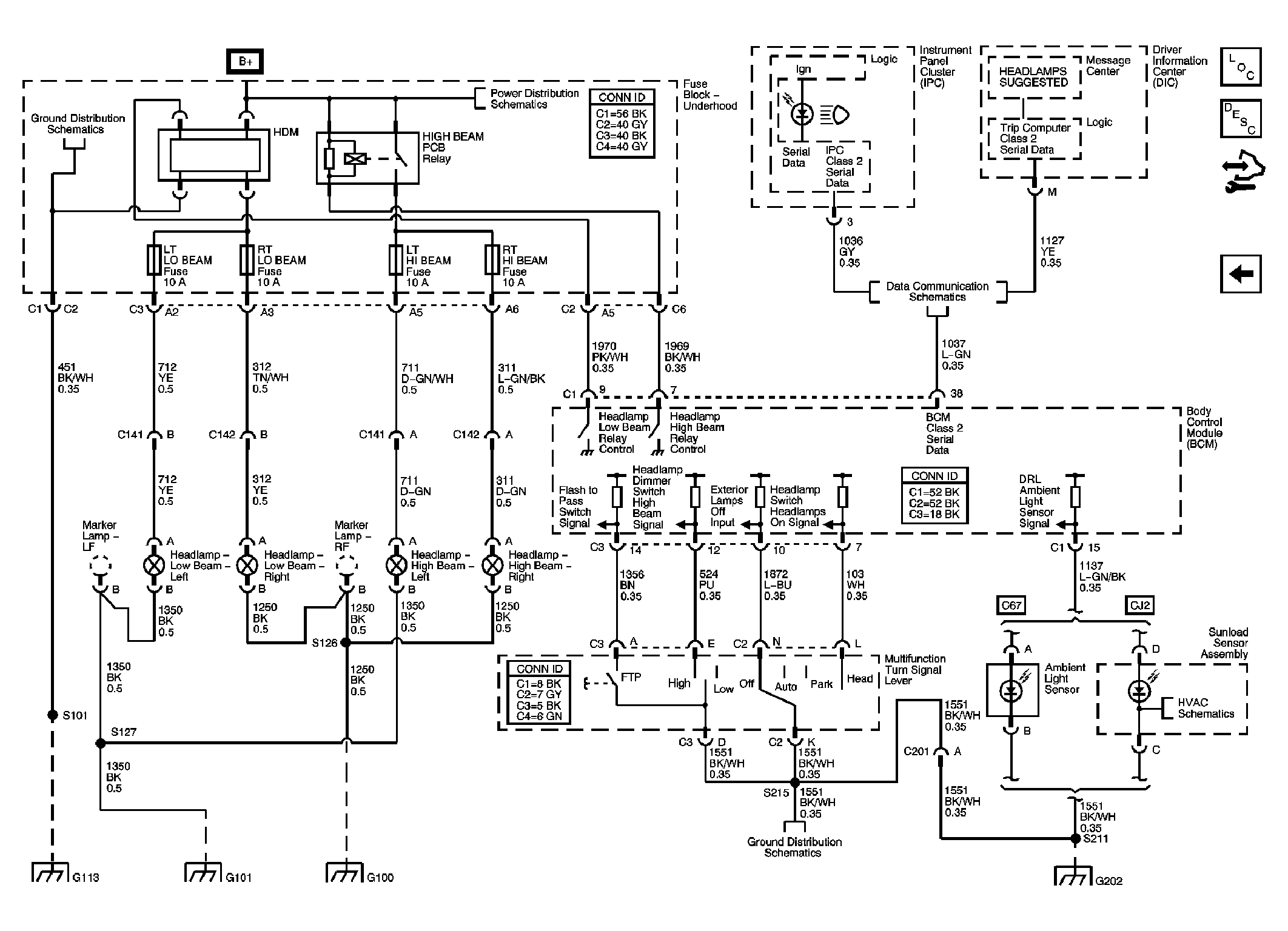

Fig 2: Headlights/DRL Schematic (LS4)

GM1798357

Courtesy of GENERAL MOTORS CORP.
