Exterior Lights Schematics

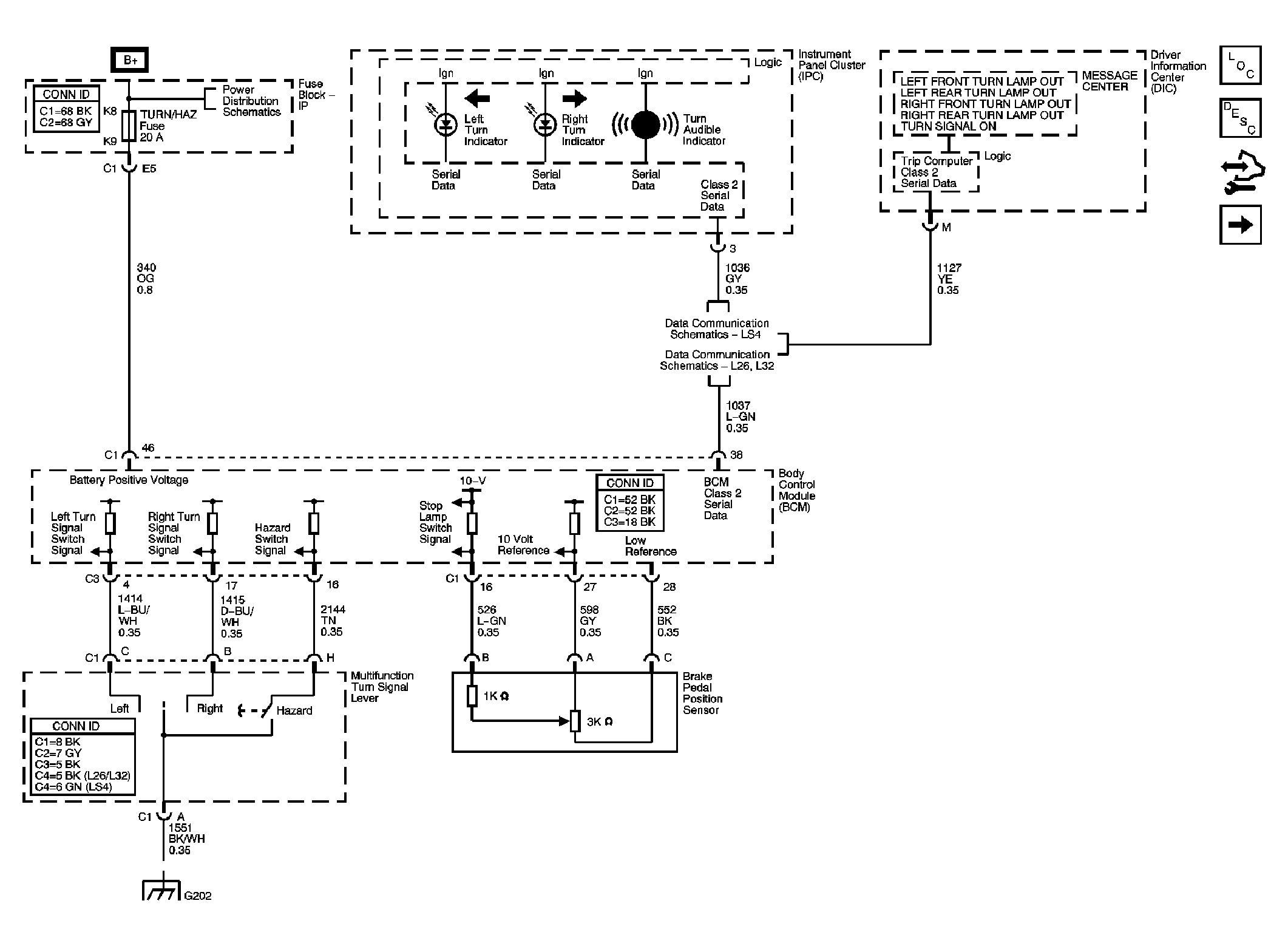

Fig 1: Exterior Lights Schematic (Turn Signal, Hazard, and Stop Lamps Inputs)
GM1798450Courtesy of GENERAL MOTORS CORP.

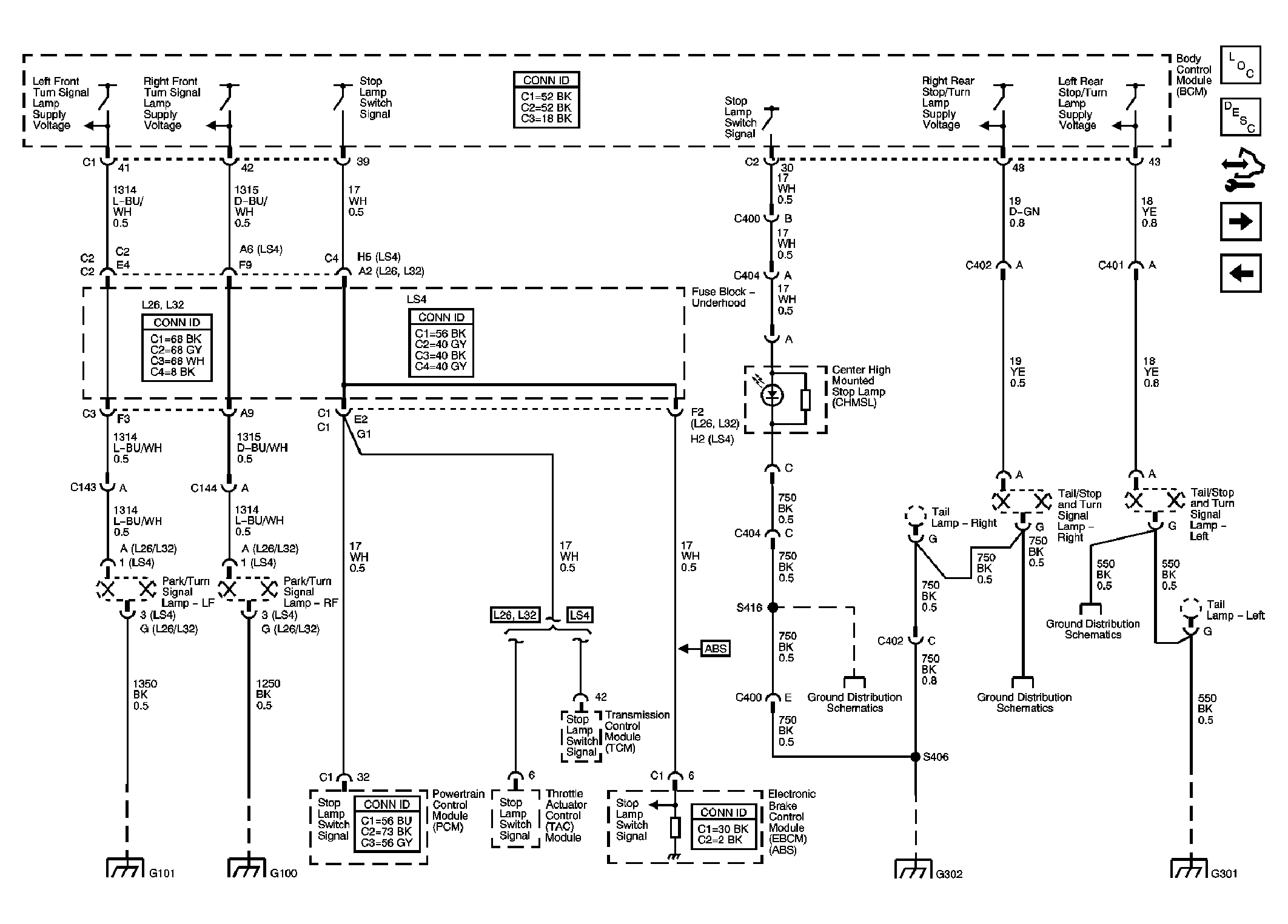

Fig 2: Exterior Lights Schematic (Turn Signal, Hazard, and Stop Lamps Outputs)
GM1798452Courtesy of GENERAL MOTORS CORP.

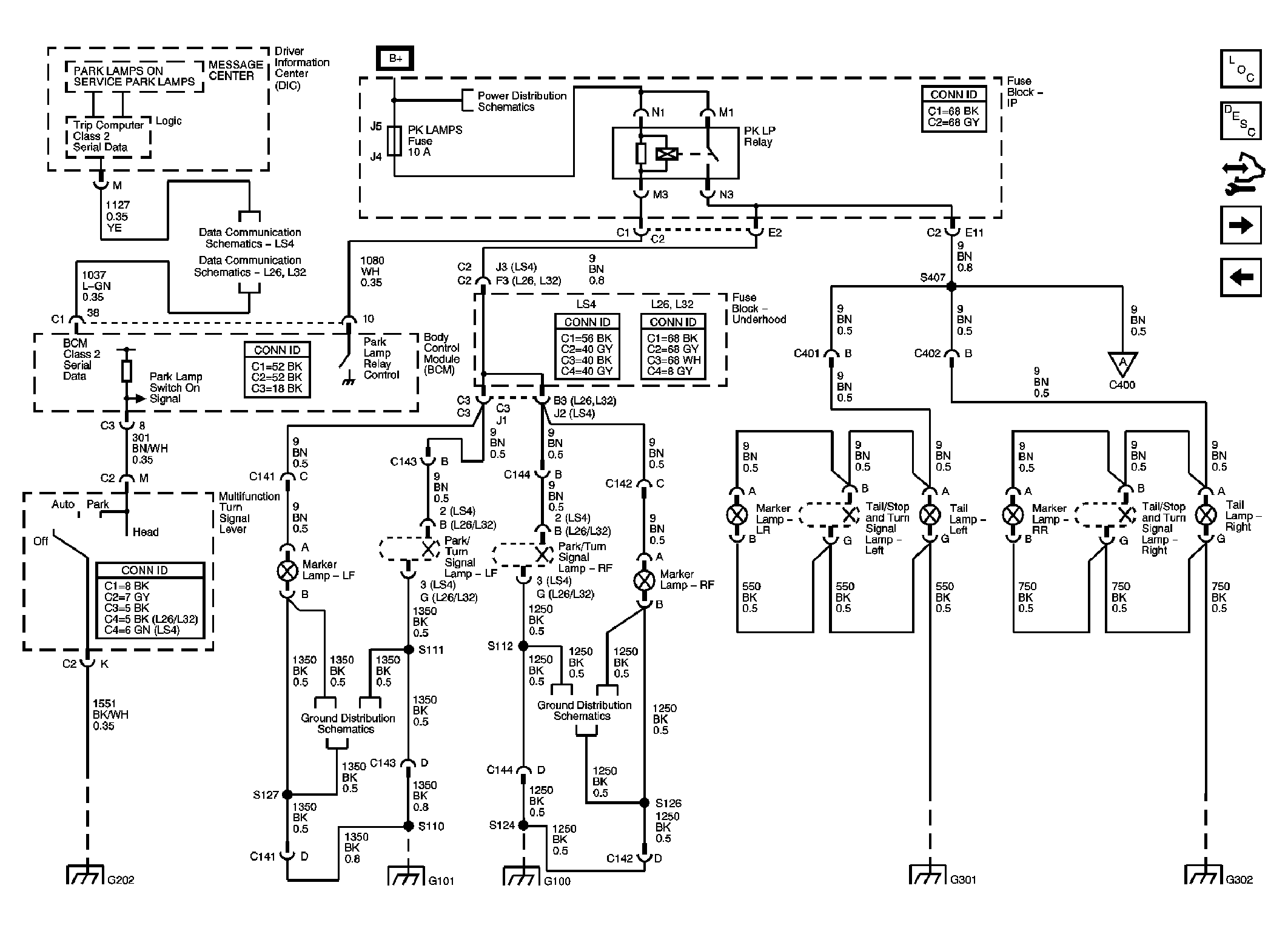

Fig 3: Exterior Lights Schematic (Park Lamps)
GM1798453Courtesy of GENERAL MOTORS CORP.

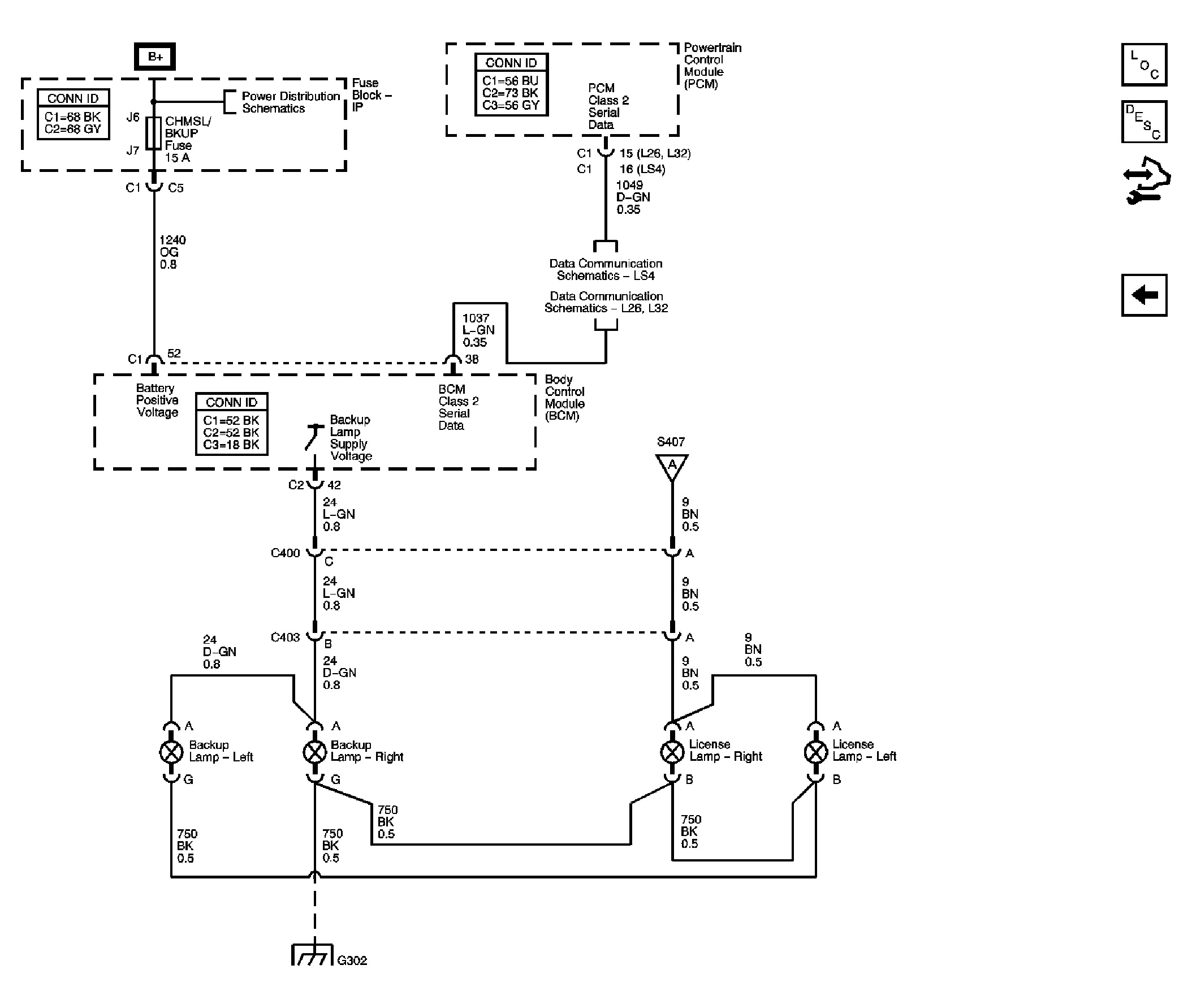

Fig 4: Exterior Lights Schematic (Backup and License Lamps)
GM1798455Courtesy of GENERAL MOTORS CORP.
