Home >> Pontiac >> 2007 >> G6 L4-2.4L >> Repair and Diagnosis >> Wiper and Washer Systems >> Wiper Switch >> Diagrams

Wiper Switch: Diagrams

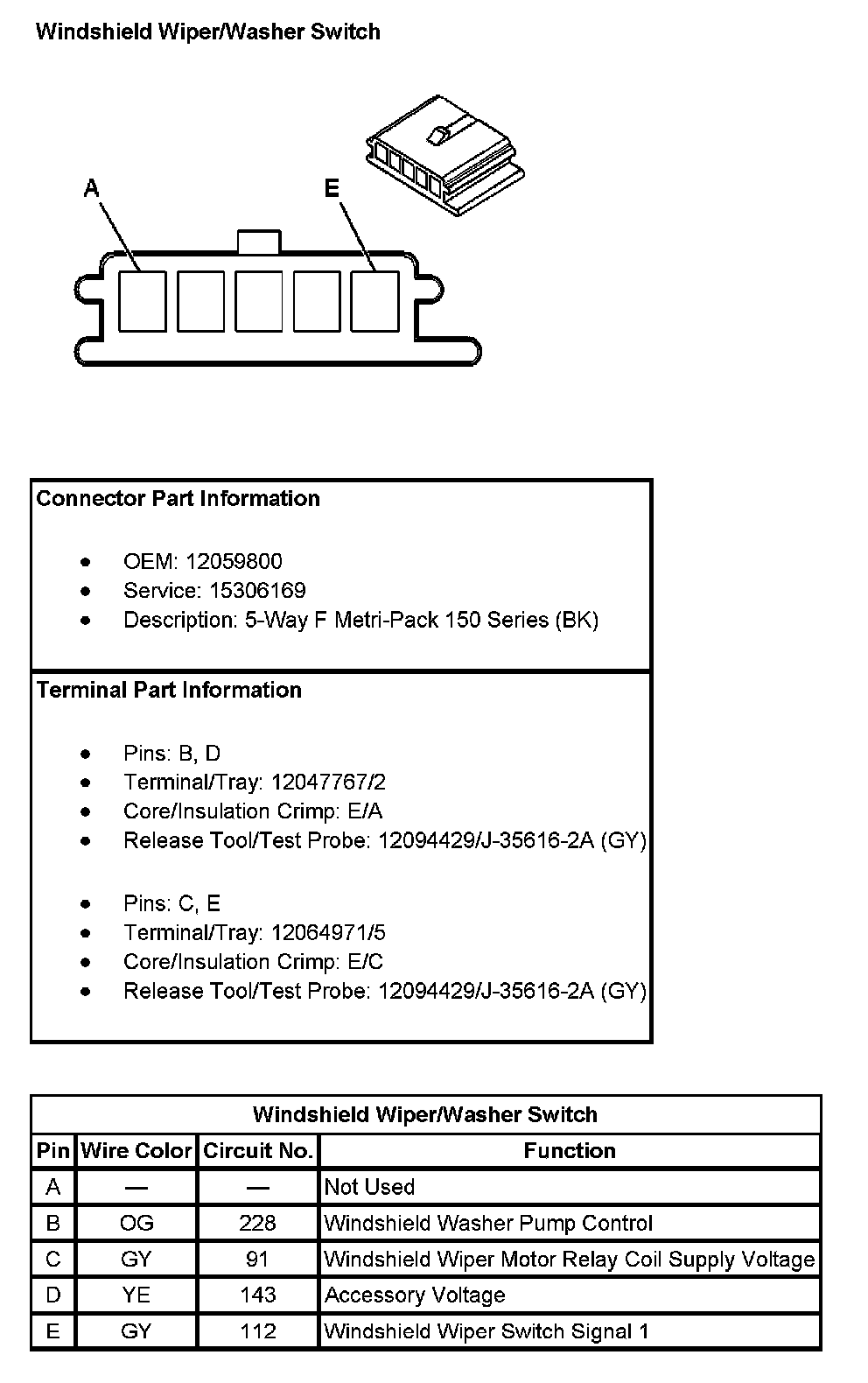

Windshield Wiper/Washer Switch:
