3-5 Reverse and 4-5-6 Clutch Housing Assemble



3-5 Reverse and 4-5-6 Clutch Housing Assemble

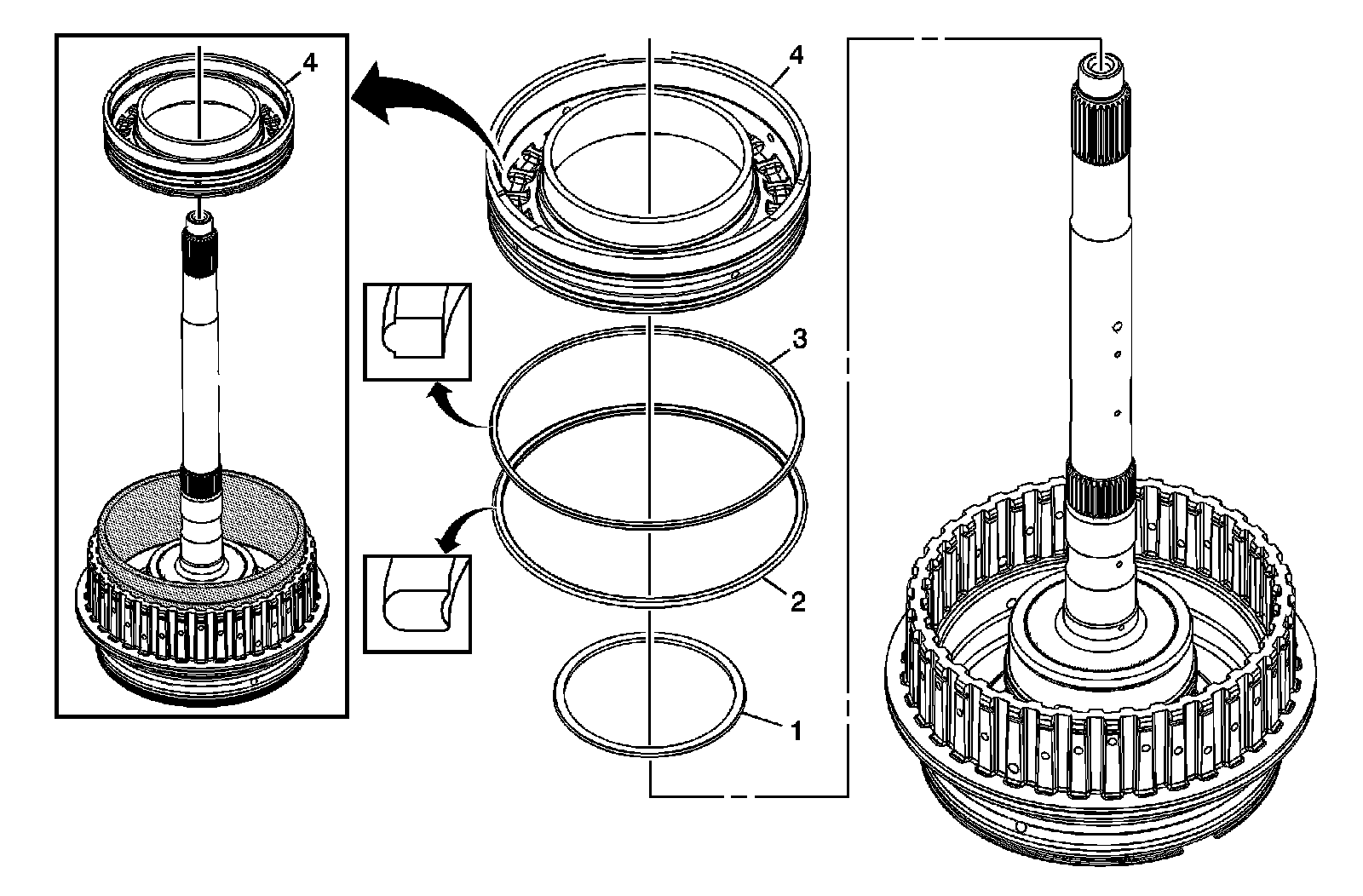

4-5-6 Clutch Piston Installation








4-5-6 Clutch Dam Installation








4-5-6 Clutch Plates Installation








3-5 Reverse Clutch Plates Installation

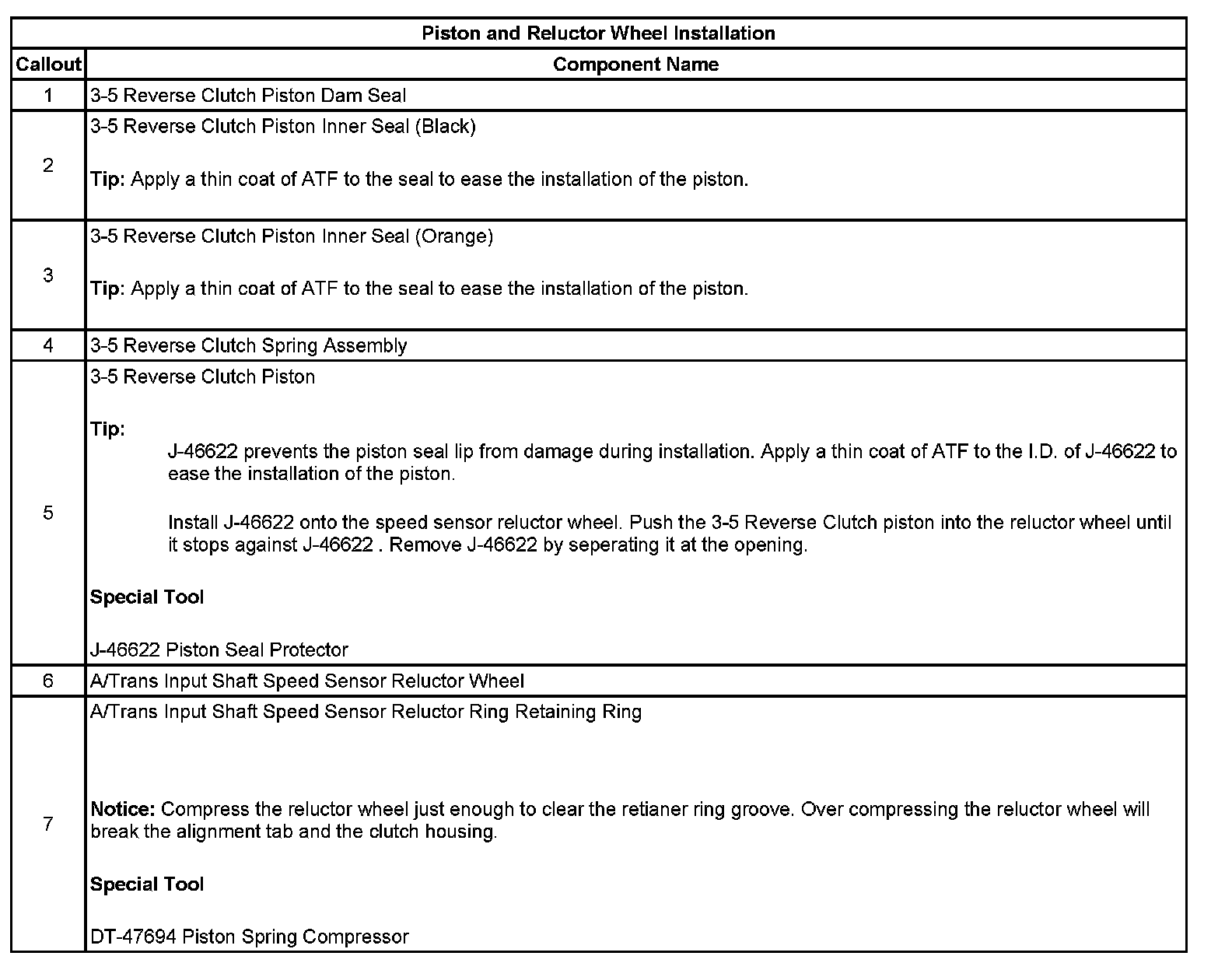

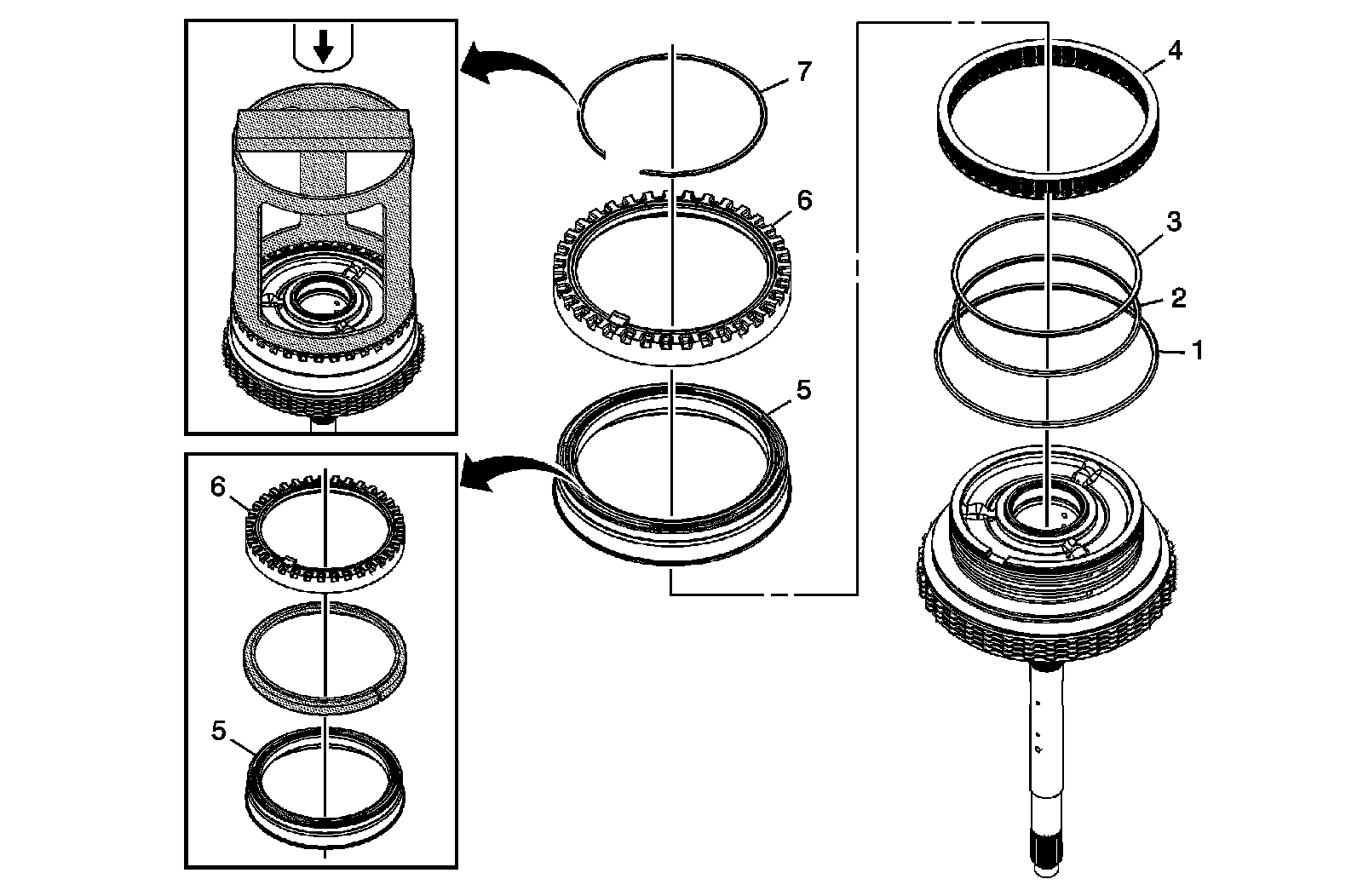

Piston and Reluctor Wheel Installation
