1-2-3-4 Clutch Plate and Low and Reverse Clutch Installation



1-2-3-4 Clutch Plate and Low and Reverse Clutch Installation

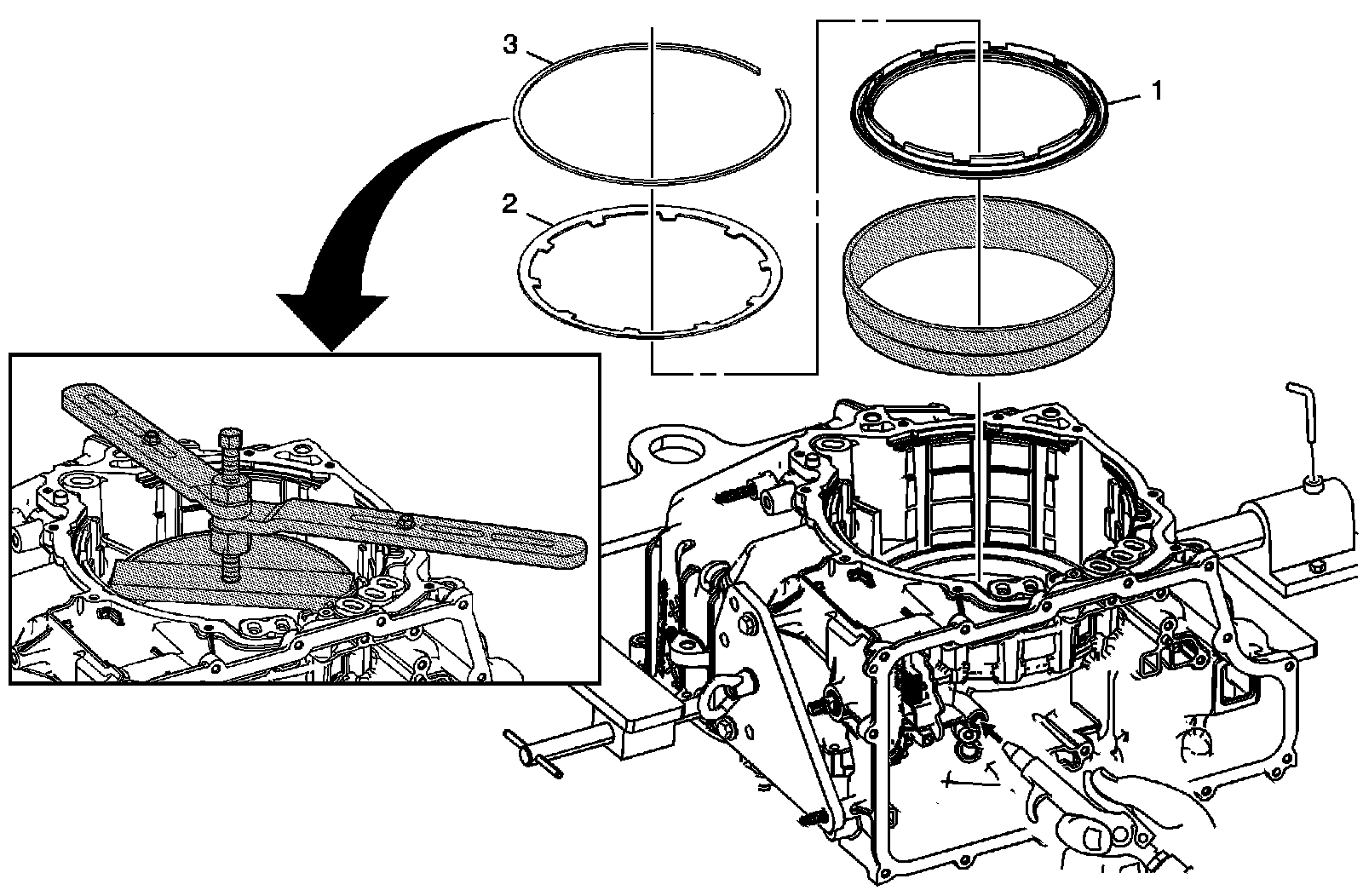

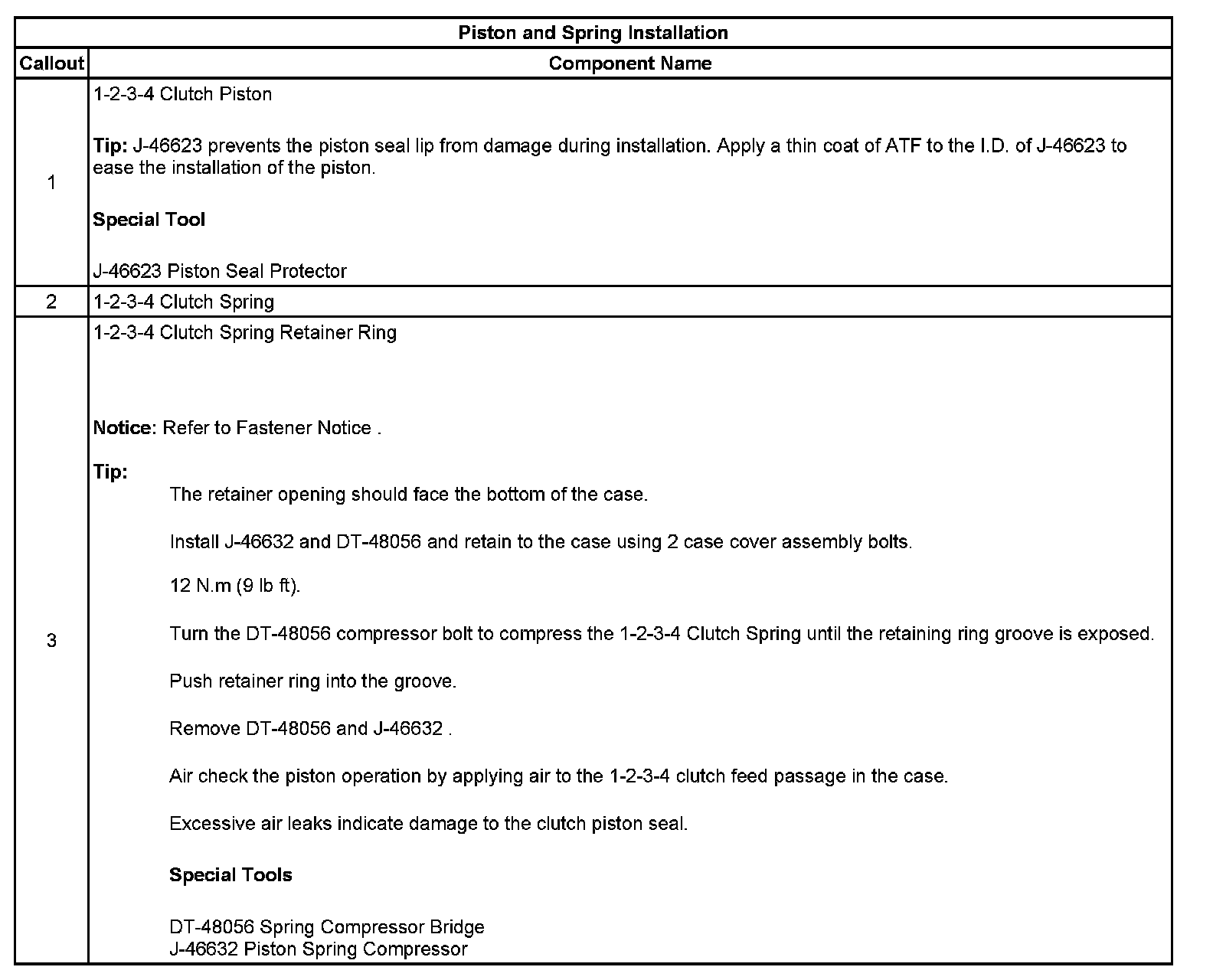

Piston and Spring Installation

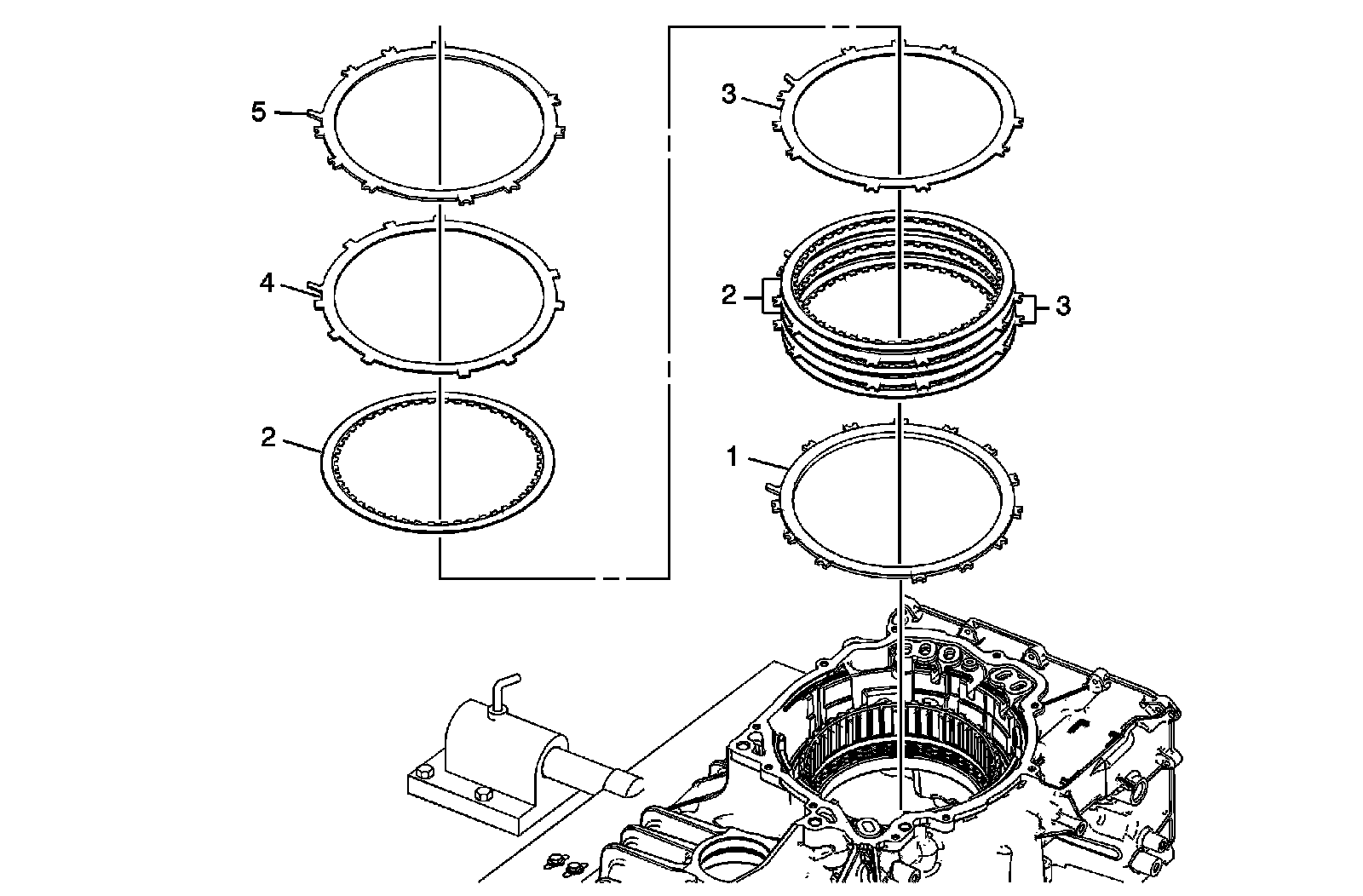

1-2-3-4 Clutch Plates and Low Reverse Clutch Installation

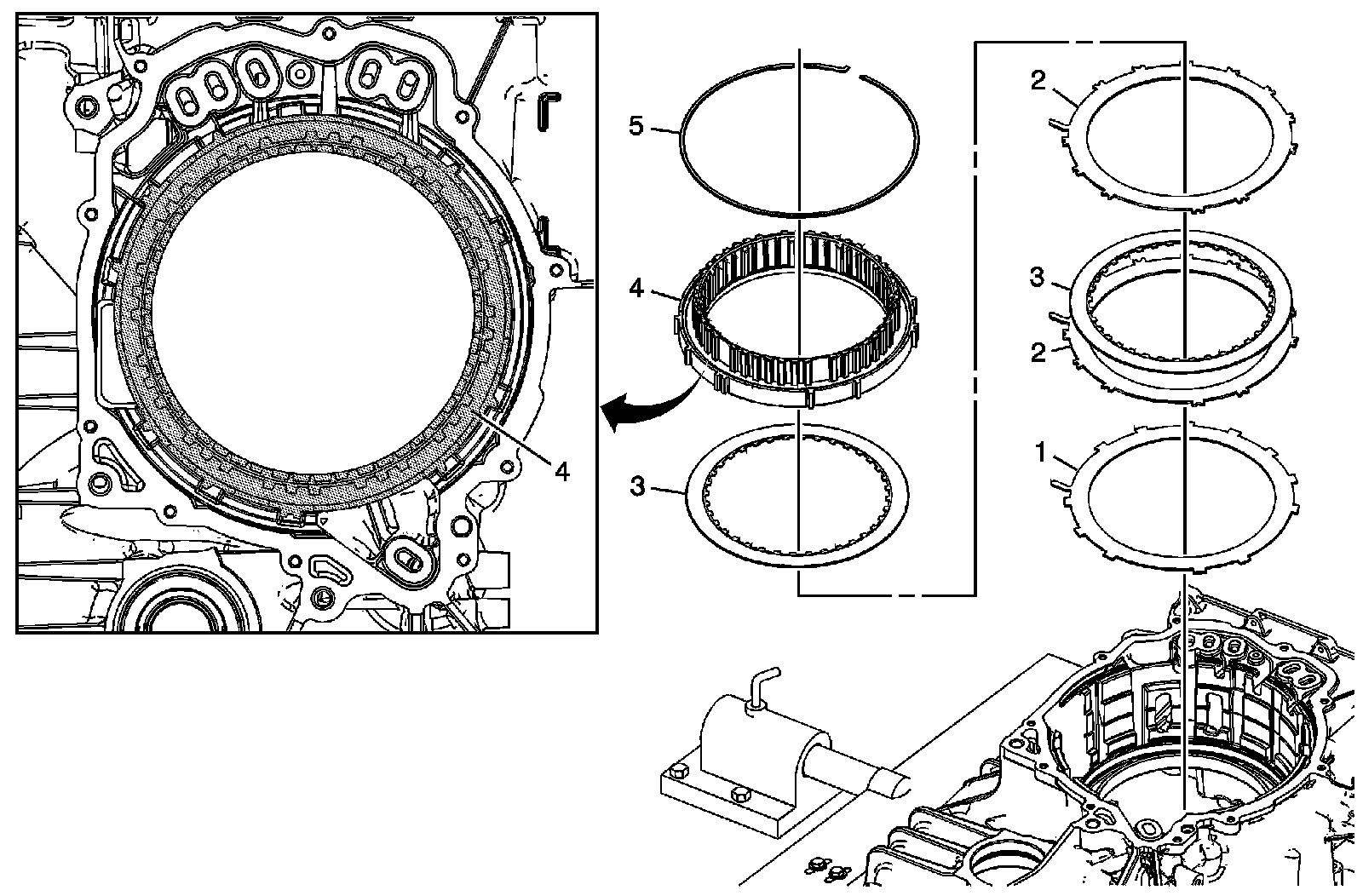

Low and Reverse Clutch Plate Installation
