6T70/6T75 - Automatic Transmission

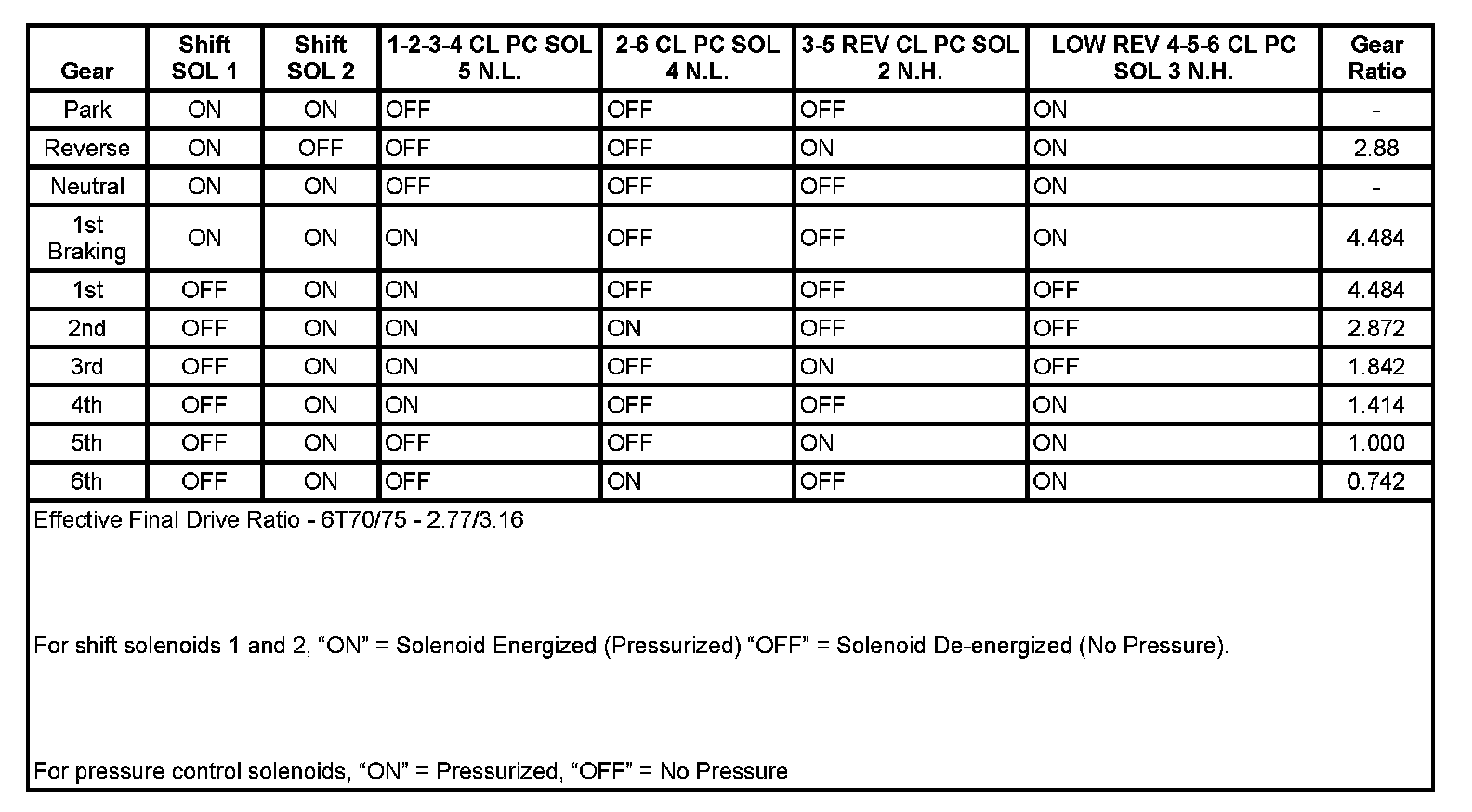

Shift Solenoid Valve State and Gear Ratio

Shift Solenoid Valve State and Gear Ratio:
