Seat Belt Buckle Switch: Locations

Seat Belt Component Views

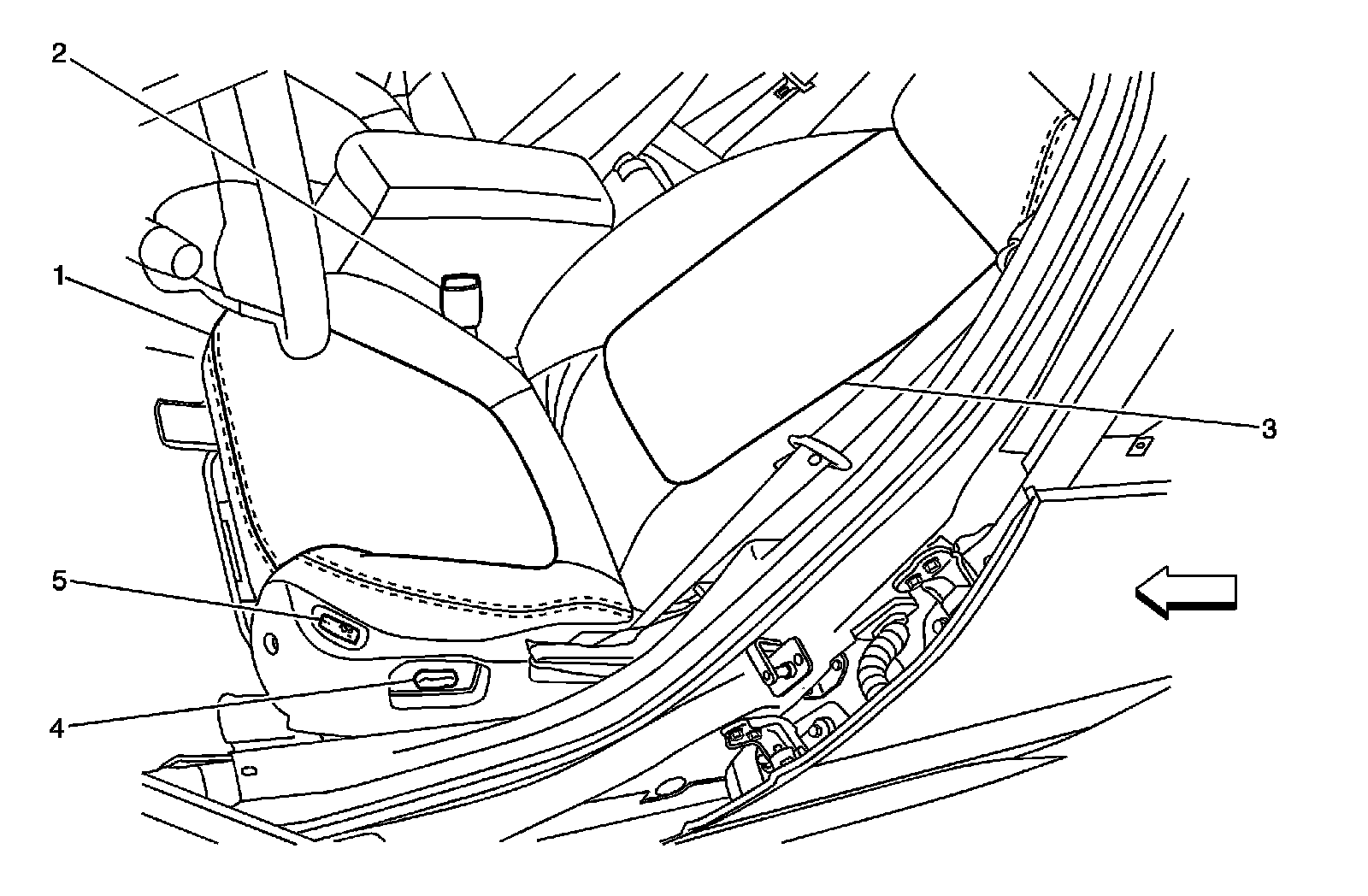

Driver Seat




1 - Heated Seat Element - Driver Cushion (KA1)
2 - Seat Belt Switch - Left
3 - Heated Seat Element - Driver Back (KA1)
4 - Seat Adjuster Switch - Driver (AG1/ASN)
5 - Heated Seat Switch - Driver (KA1)

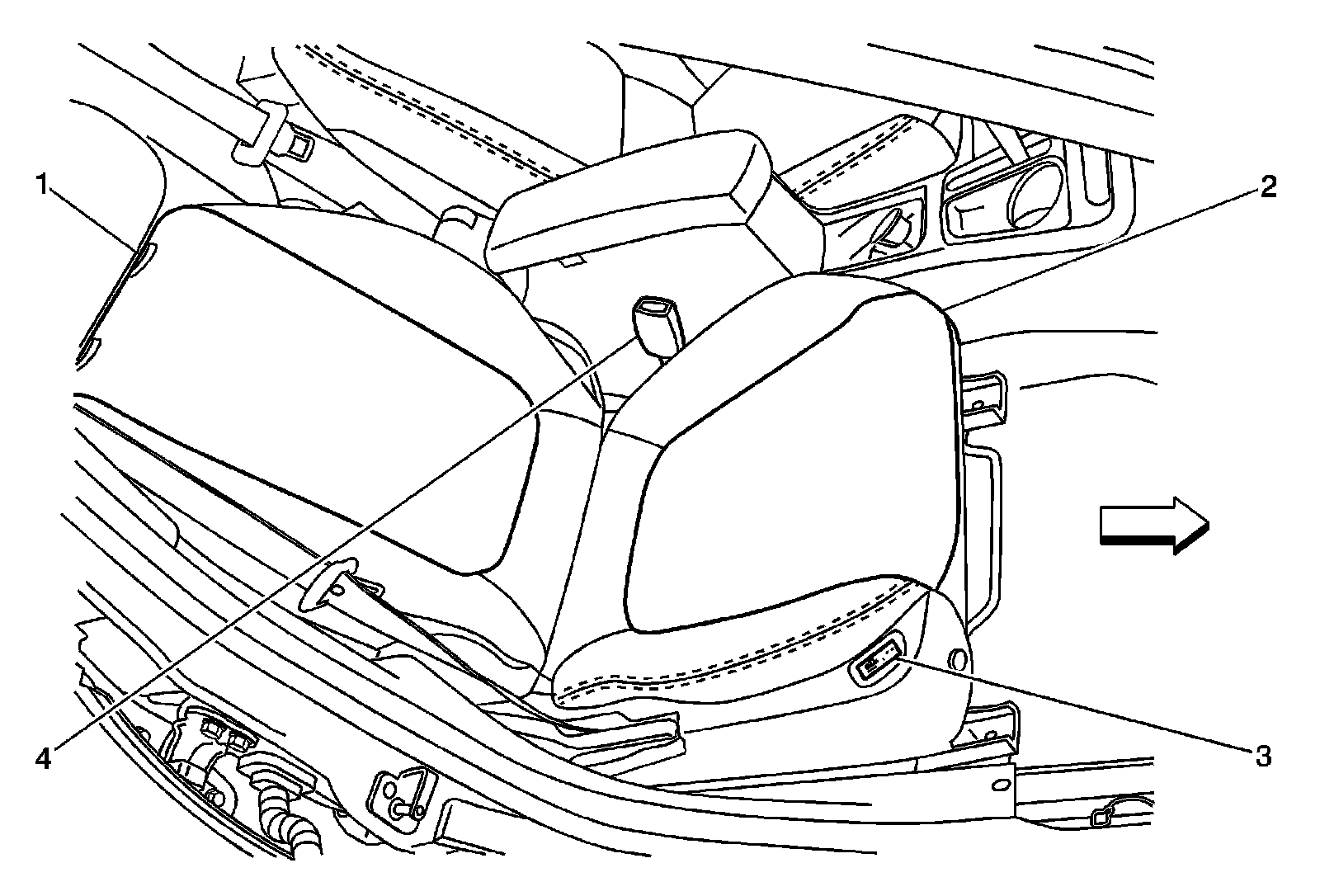

Passenger Seat




1 - Heated Seat Element - Passenger Back (KA1)
2 - Heated Seat Element - Passenger Cushion (KA1)
3 - Heated Seat Switch - Passenger (KA1)
4 - Seat Belt Switch - Right
