Air Temperature Sensor Replacement - Upper

Air Temperature Sensor Replacement - Upper

Removal Procedure

1. Remove the center instrument panel (I/P) trim panel.
2. Remove the upper air temperature sensor wire harness connector.

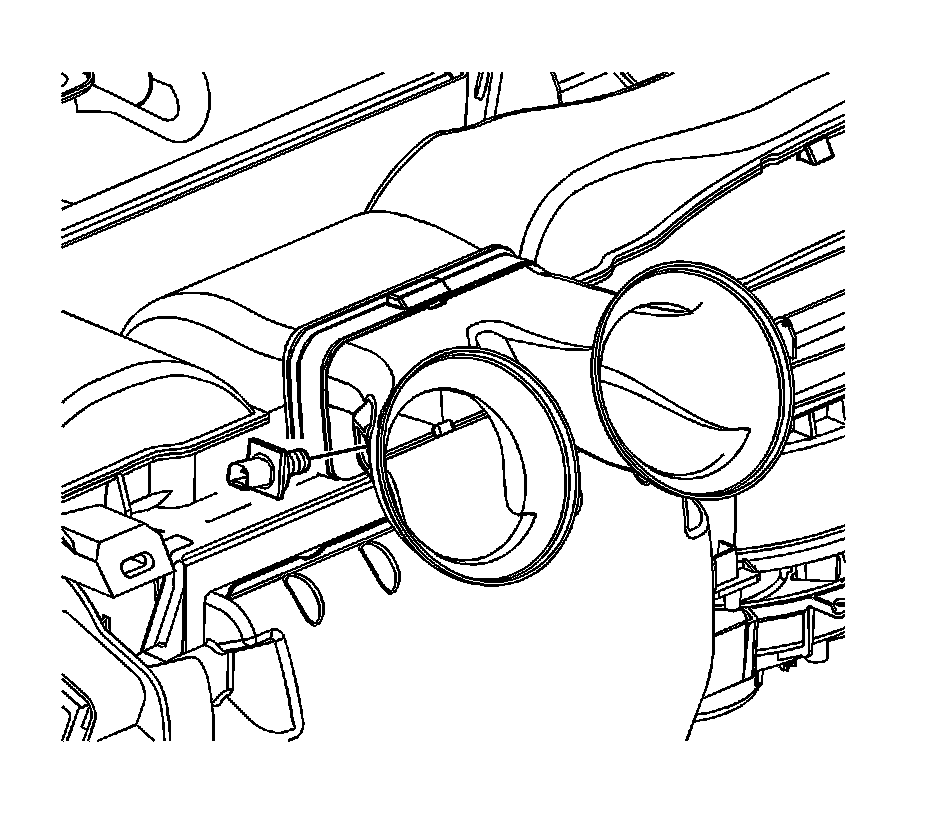

3. Pull on the upper air temperature sensor to remove from the upper center air outlet duct.

Installation Procedure




1. Install the upper air temperature sensor.
2. Install the upper air temperature sensor wire harness.
3. Install the center I/P trim panel.
