Sunroof Sunshade Switch Replacement



SUNROOF SUNSHADE SWITCH REPLACEMENT

REMOVAL PROCEDURE




1. Remove the overhead console cover.

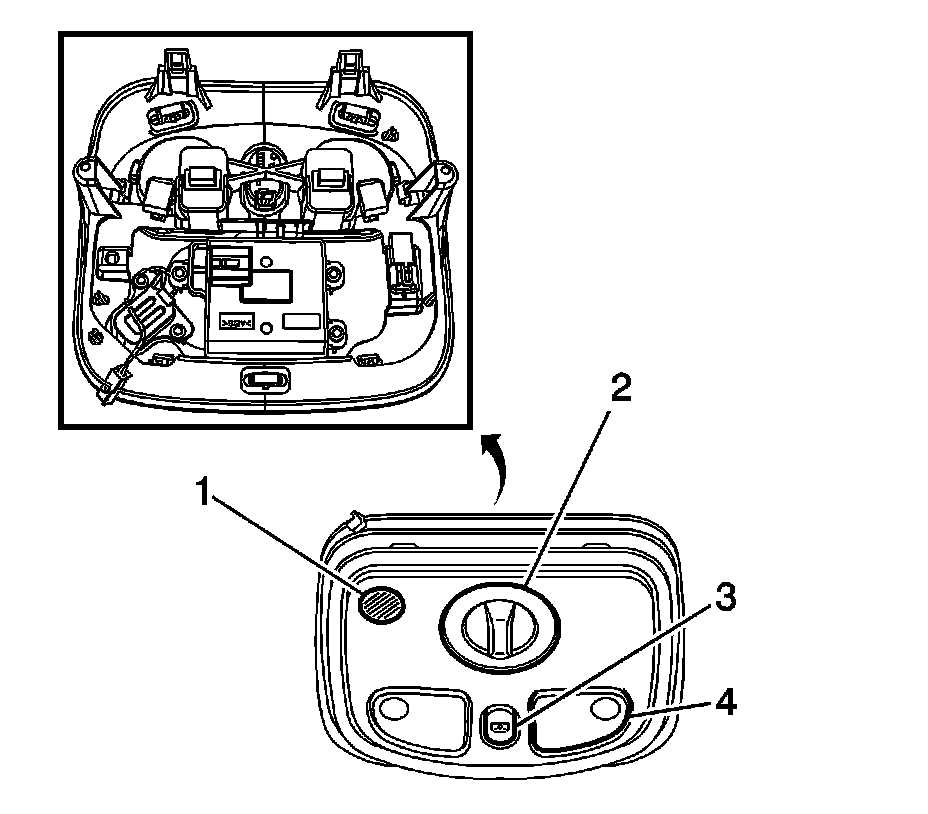

2. Disconnect the electrical connector from the sunshade switch (3).
3. Use a small flat bladed tool to release the sunshade switch (3) from the overhead console cover.

INSTALLATION PROCEDURE




1. Install the sunshade switch (3) to the overhead console cover.
2. Connect the electrical connector to the sunshade switch (2).
3. Install the overhead console cover.
