Home >> Pontiac >> 2007 >> G6 L4-2.4L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Powertrain Management >> Relays and Modules - Fuel Delivery and Air Induction >> Fuel Pump Relay >> Locations

Fuel Pump Relay: Locations

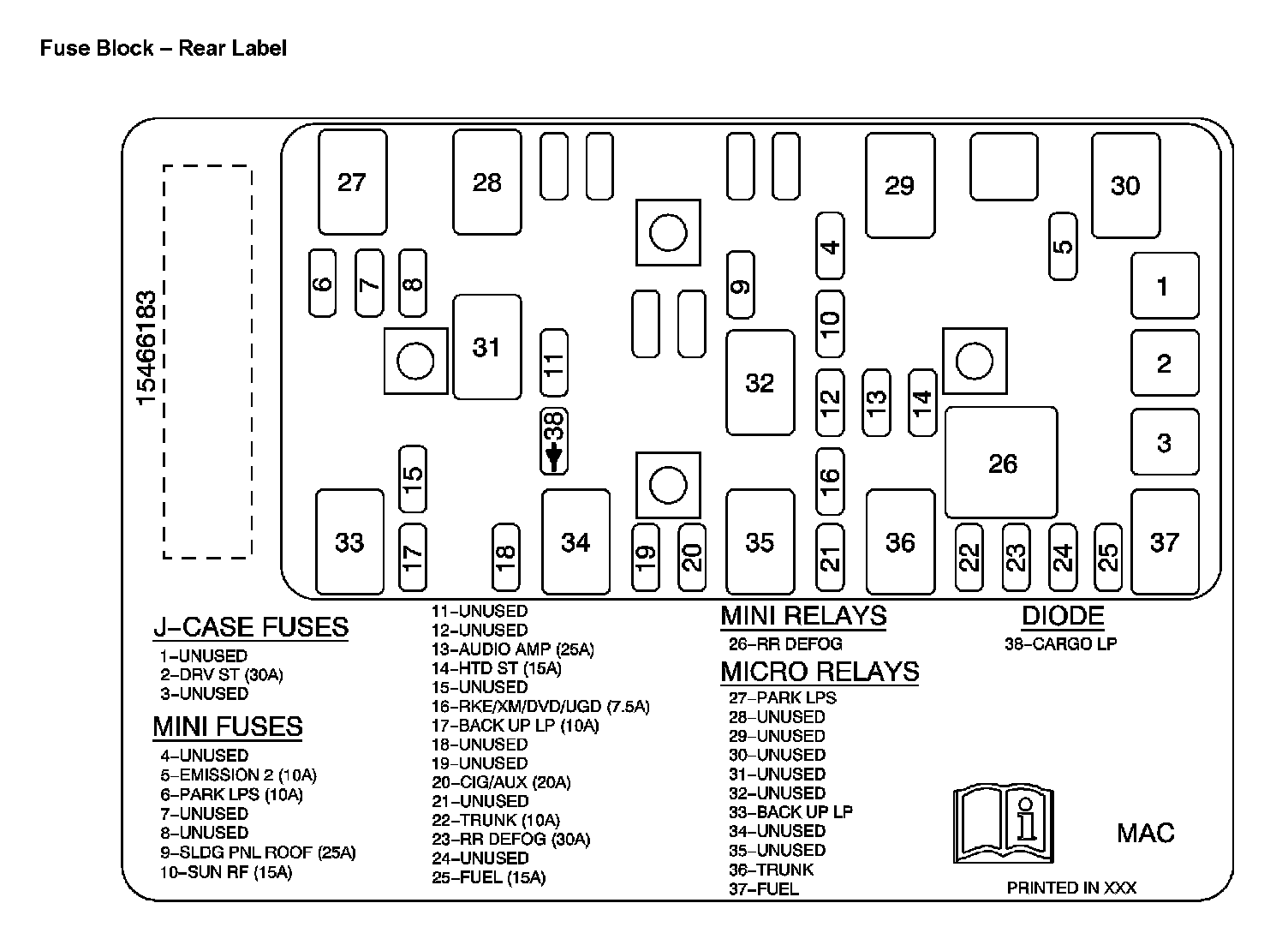

Fuse Block - Rear Label:
