6T70/6T75 - Automatic Transmission

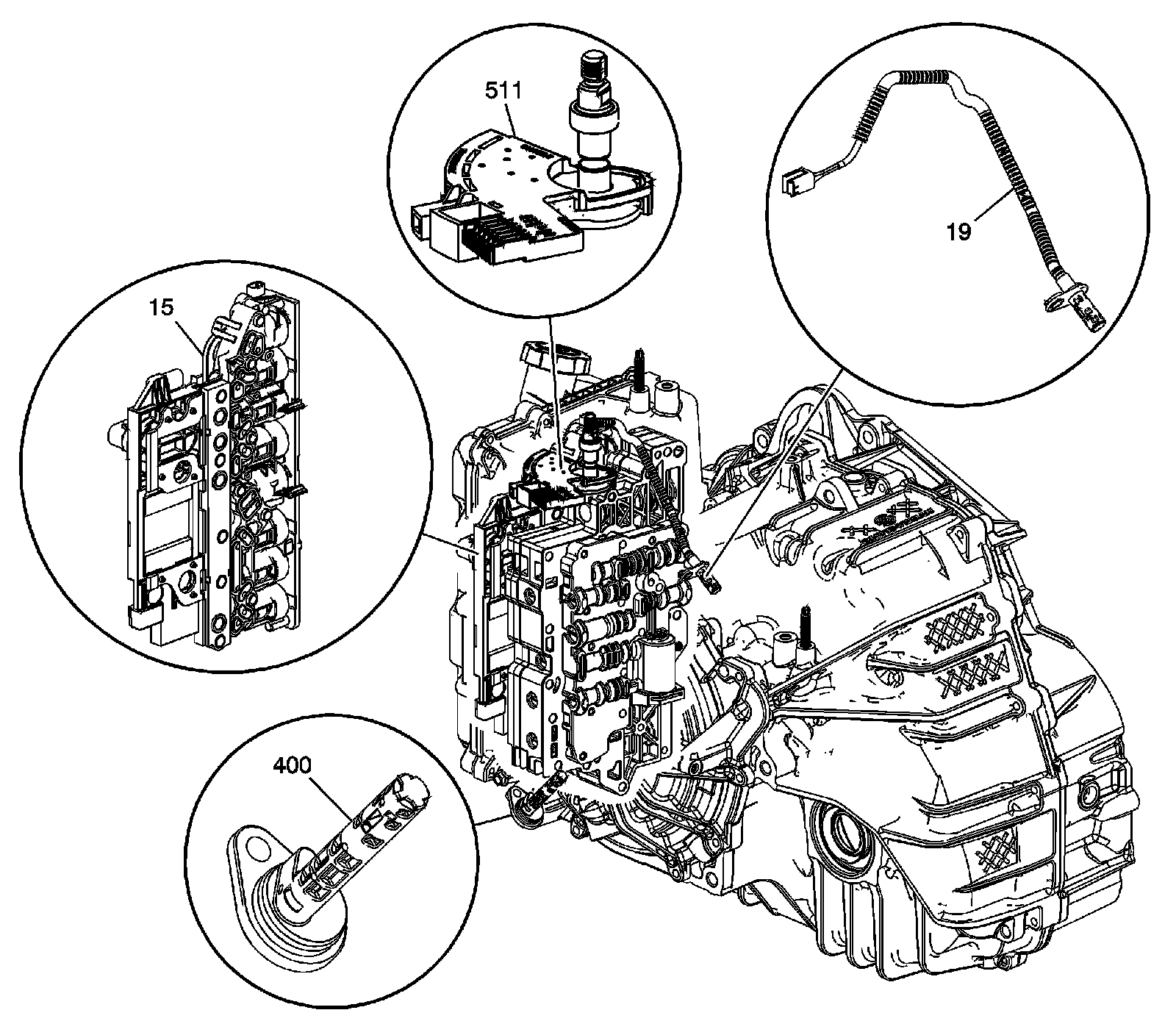

Automatic Transmission Electronic Component Views

Electronic Components

Electronic Components:




15 - Control Solenoid (w/Body and TCM) Valve Assembly
19 - A/Trans Output Speed Sensor Assembly
400 - A/Trans Input Speed Sensor Assembly
511 - Manual Shift Detent (w/Shaft Position Switch) Lever Assembly
