Home >> Pontiac >> 2007 >> G6 L4-2.4L >> Repair and Diagnosis >> Locations >> Ground Locations >> Grounds By Number >> G200 - G299 >> G201

G201

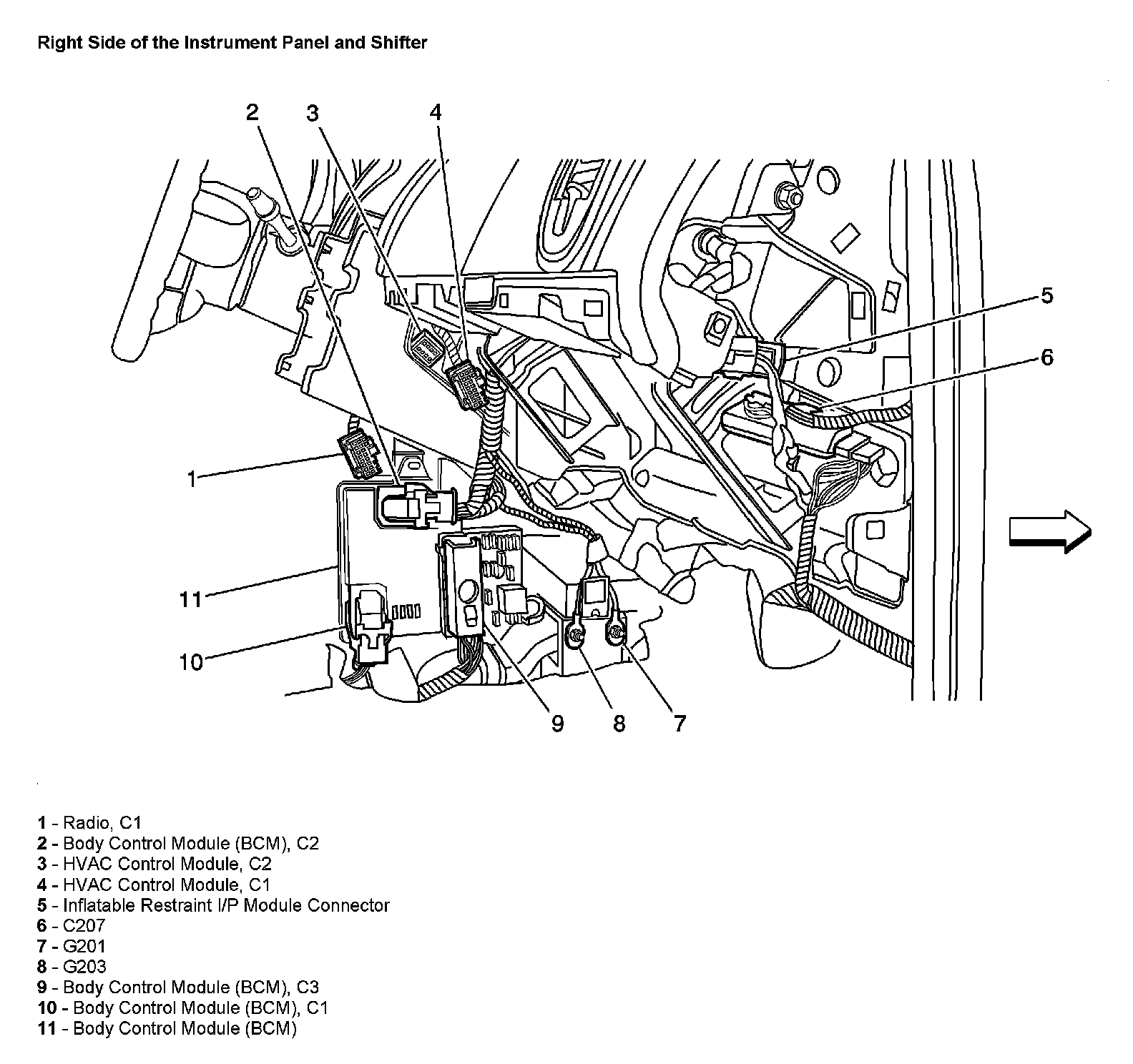

Right Side Of The Instrument Panel And Shifter:

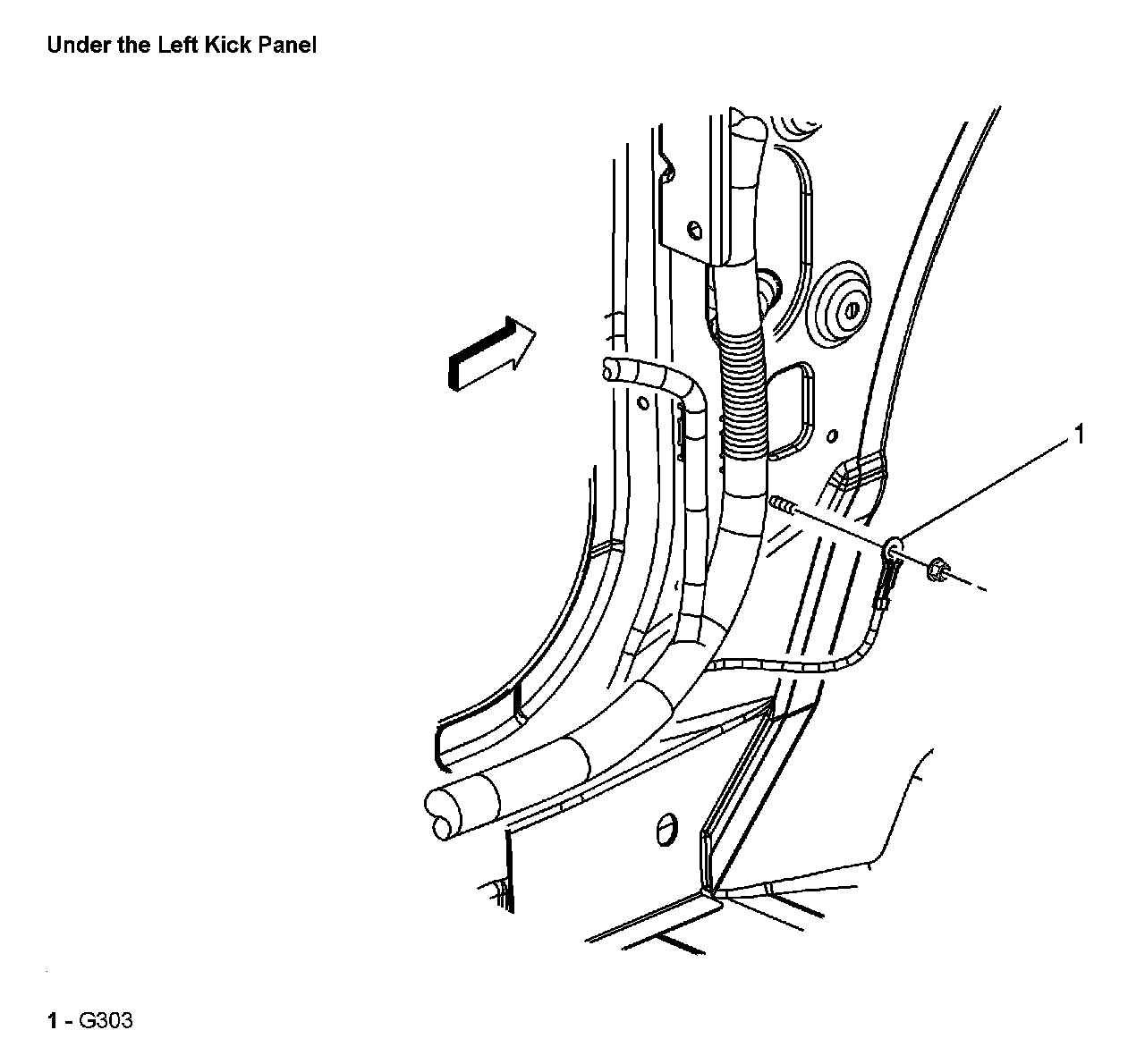

Under The Left Kick Panel:



Right Side Of The Instrument Panel And Shifter:
