Illuminated Entry Lamps Inoperative



ILLUMINATED ENTRY LAMPS INOPERATIVE

DIAGNOSTIC INSTRUCTIONS
- Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure. Initial Inspection and Diagnostic Overview
- Strategy Based Diagnosis
- Diagnostic Procedure Instructions

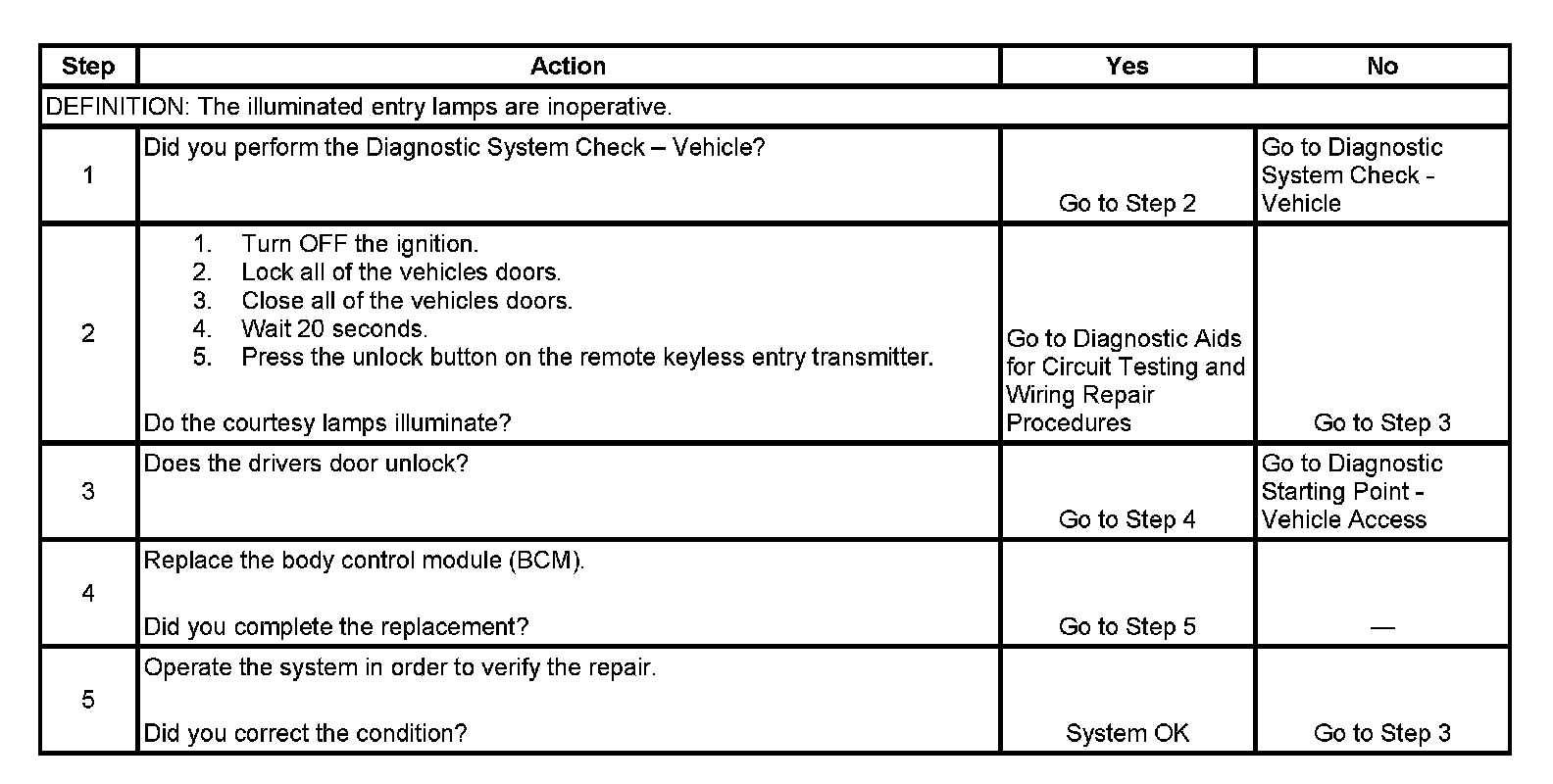

TEST

Step 1 - Step 5:
