HVAC - Automatic
HVAC Component Views

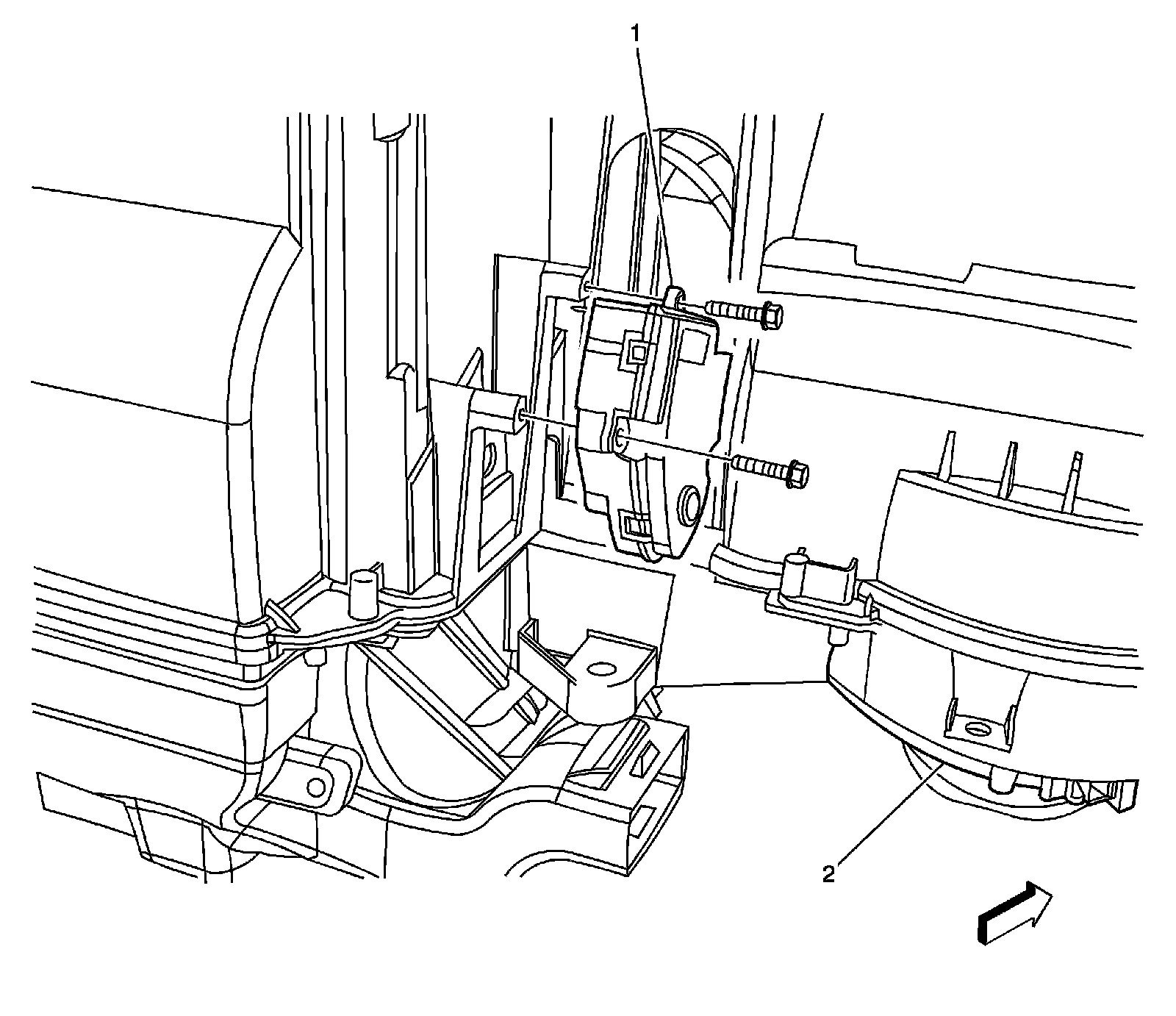

Under Right Side of Instrument Panel
1 - Air Temperature Actuator
2 - Blower Motor

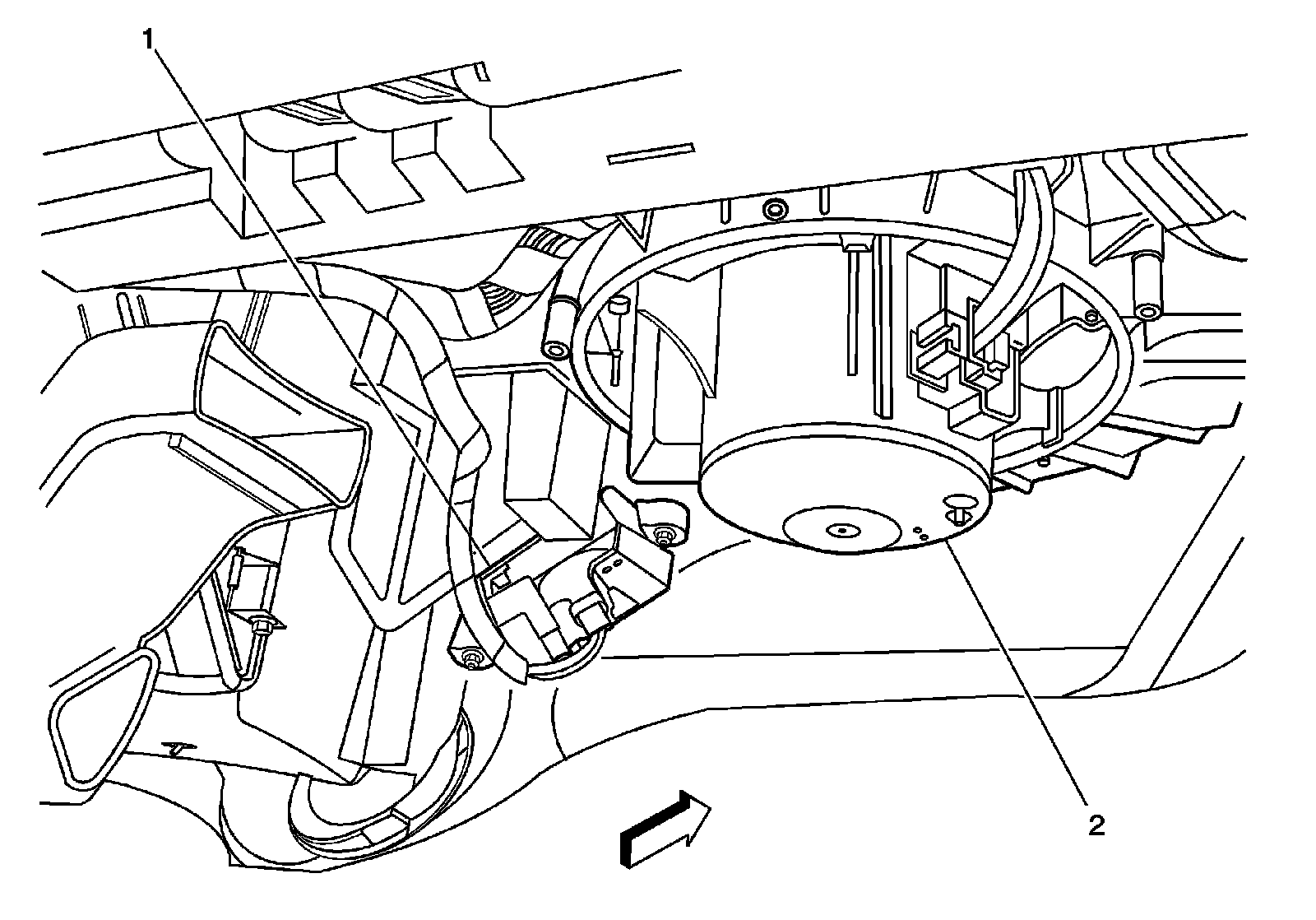

Above Right Front Footwell
1 - Blower Motor Resistor Assembly (C60), Blower Motor Control Module (C68)
2 - Blower Motor
HVAC Component Views
Under Right Side of Instrument Panel
1 - Air Temperature Actuator
2 - Blower Motor
Above Right Front Footwell
1 - Blower Motor Resistor Assembly (C60), Blower Motor Control Module (C68)
2 - Blower Motor
