Home >> Pontiac >> 2007 >> G6 L4-2.4L >> Repair and Diagnosis >> Diagrams >> Splices >> Splices By Number >> S101

S101

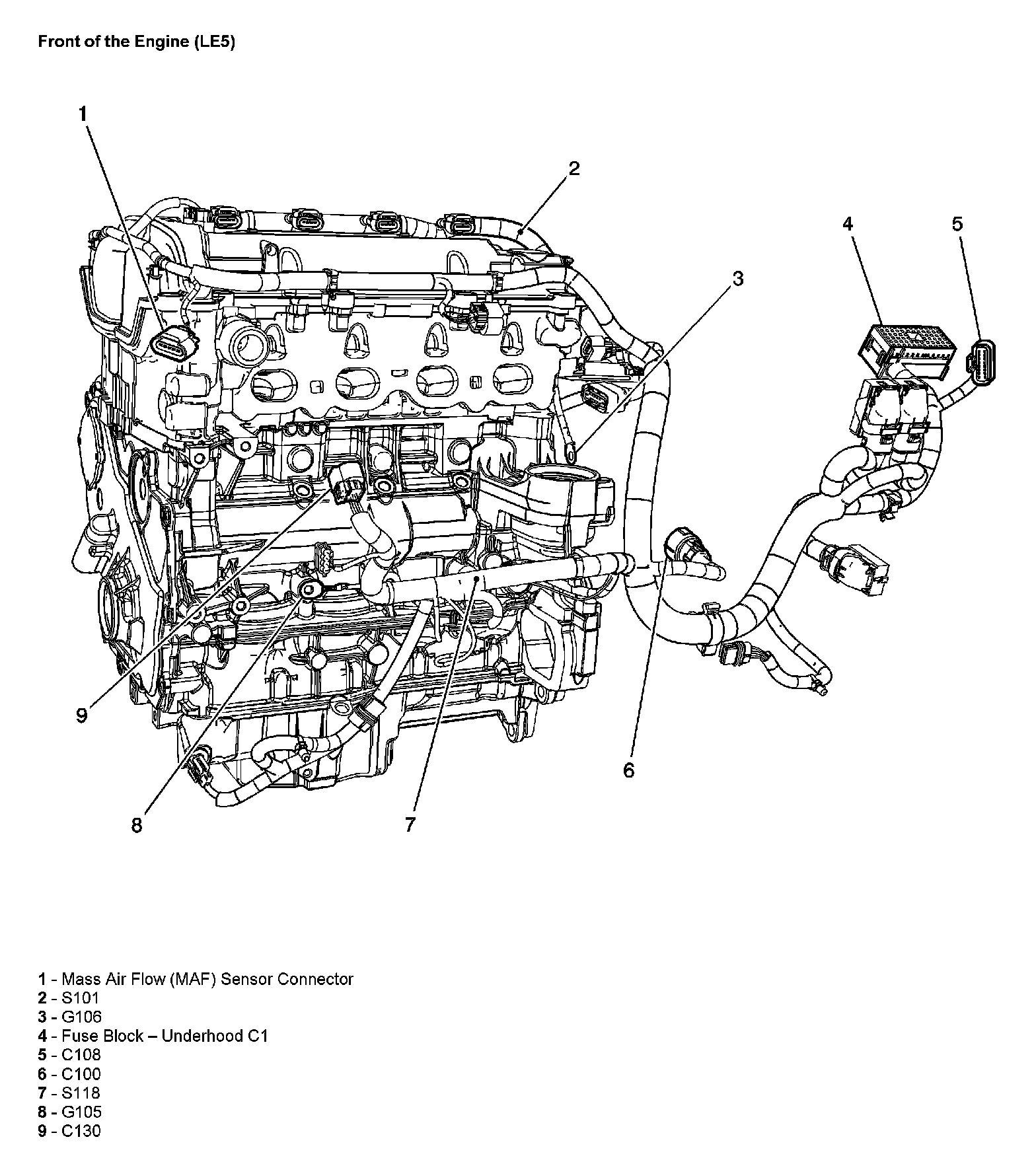

Front Of The Engine (LE5):
