Home >> Pontiac >> 2007 >> G6 L4-2.4L >> Repair and Diagnosis >> Diagrams >> Harness >> Body Views >> Body Harness Engine Compartment

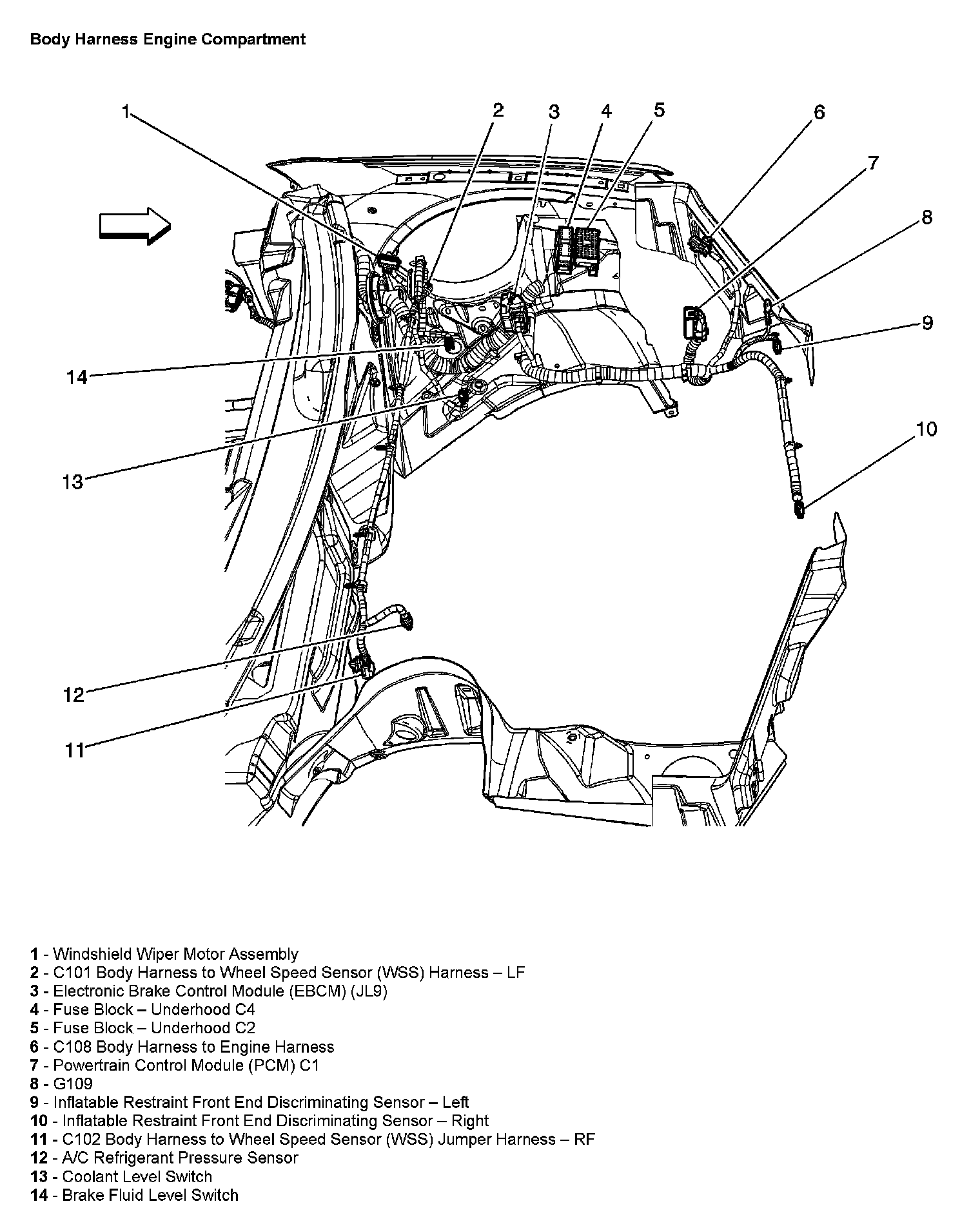

Body Harness Engine Compartment

Body Harness Engine Compartment:
