Home >> Pontiac >> 2007 >> G6 L4-2.4L >> Repair and Diagnosis >> Diagrams >> Harness >> Body Views >> Body Harness - Passenger Compartment (Coupe)

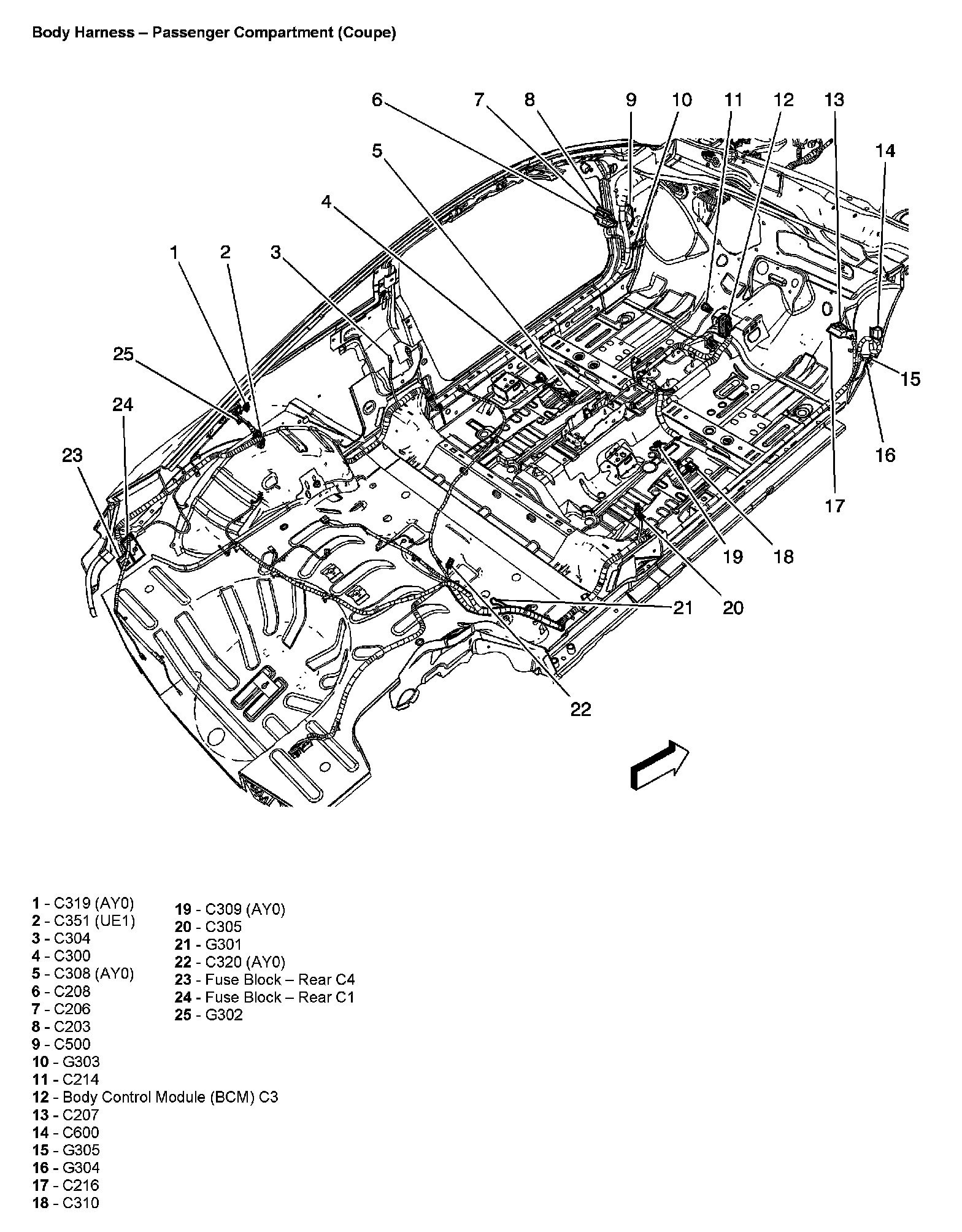

Body Harness - Passenger Compartment (Coupe)

Body Harness - Passenger Compartment (Coupe):
