Wiper and Washer Systems

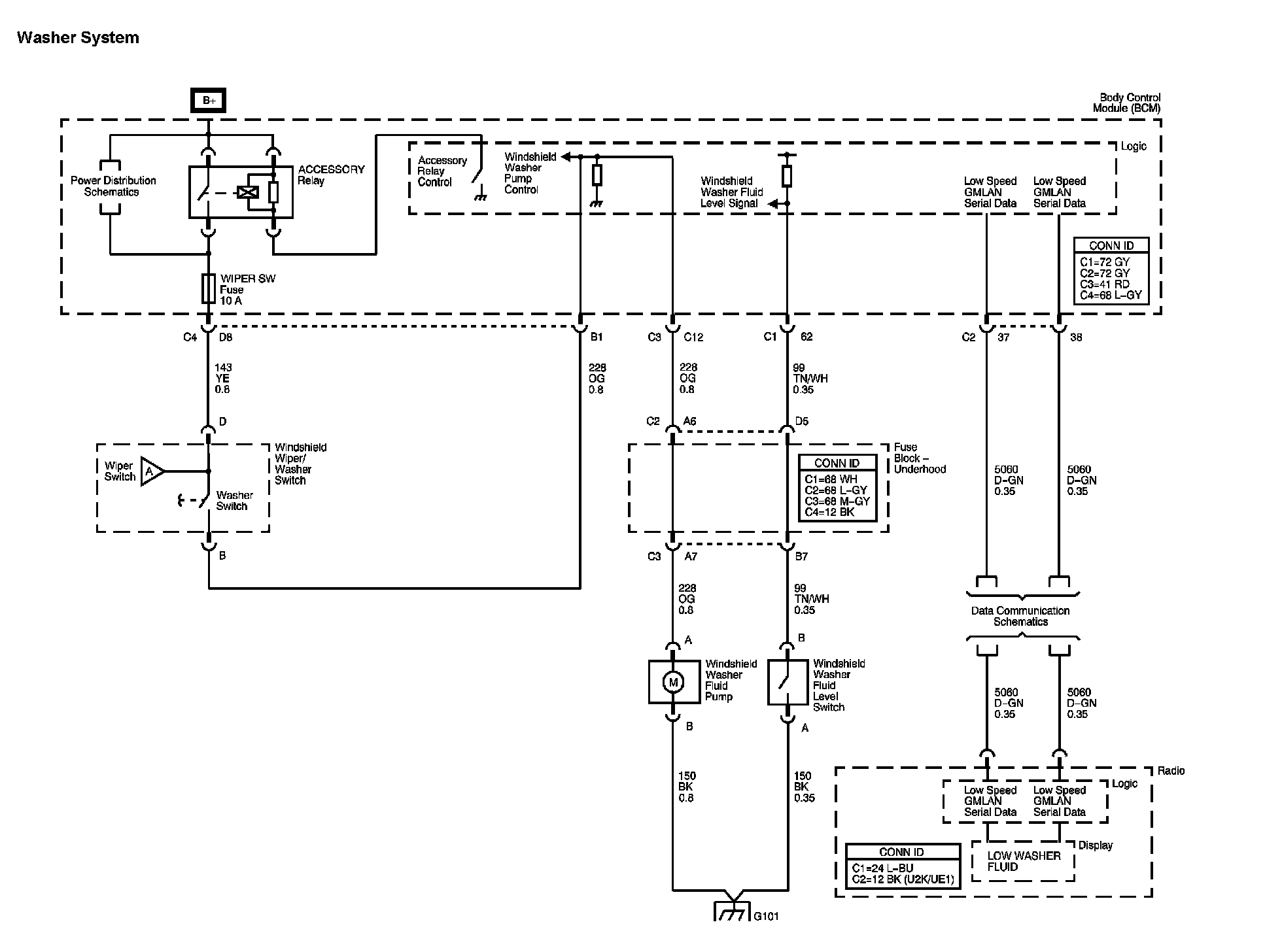

Wiper/Washer Diagram 1:

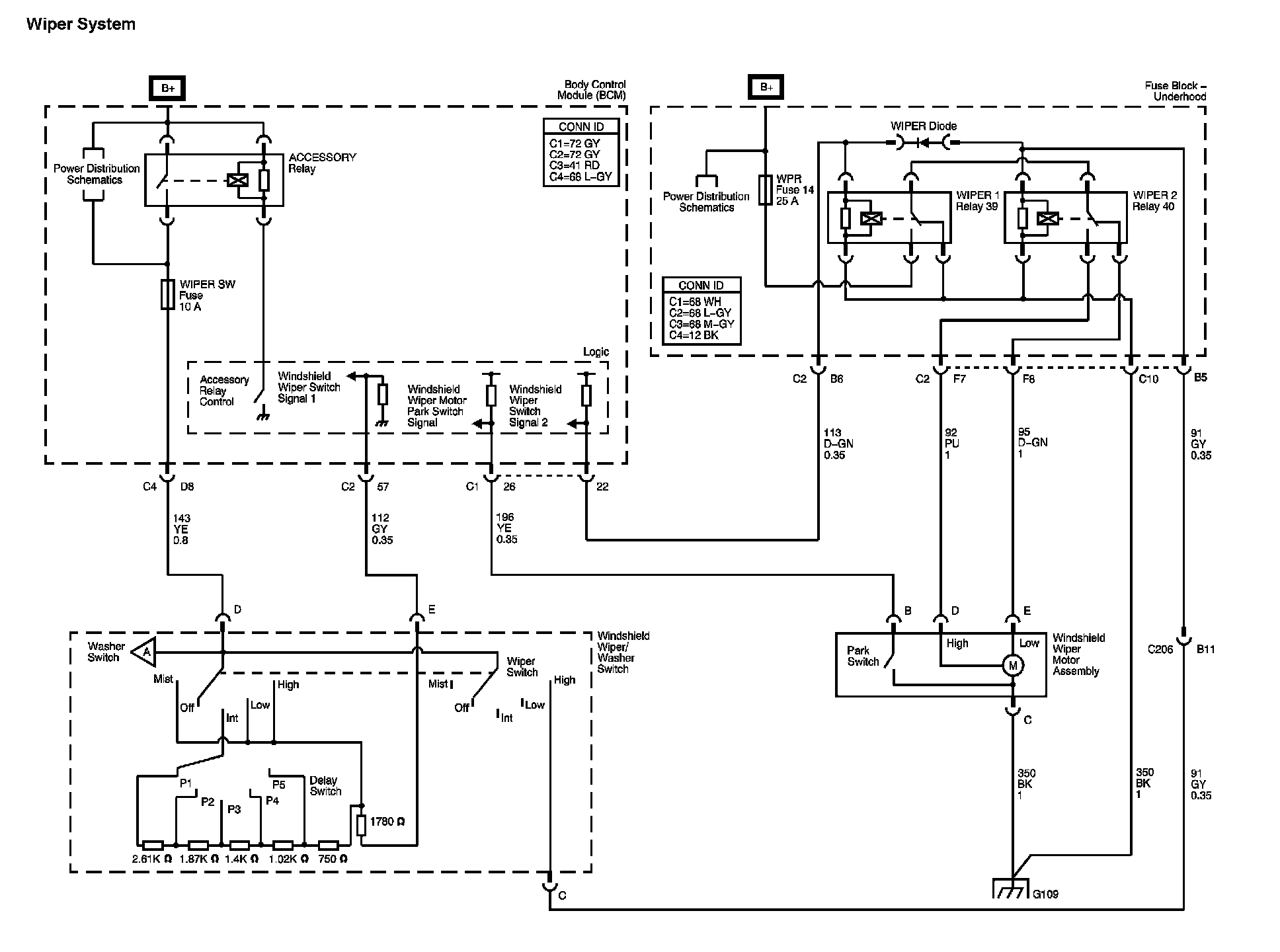

Wiper/Washer Diagram 2:
Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
