Automatic Transmission Controls Schematics

Automatic Transmission Controls Schematics

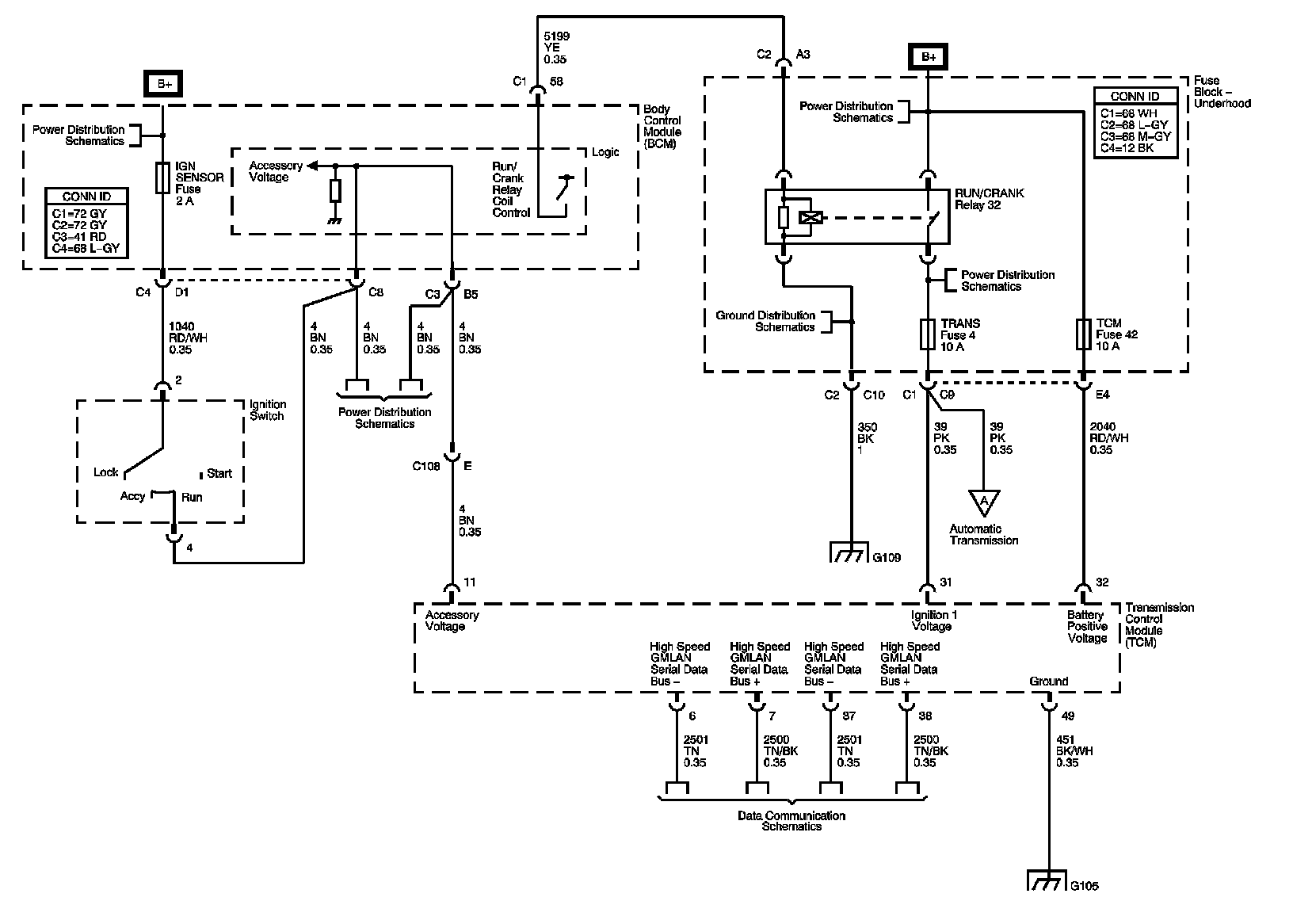

DLC, Ground And Power:

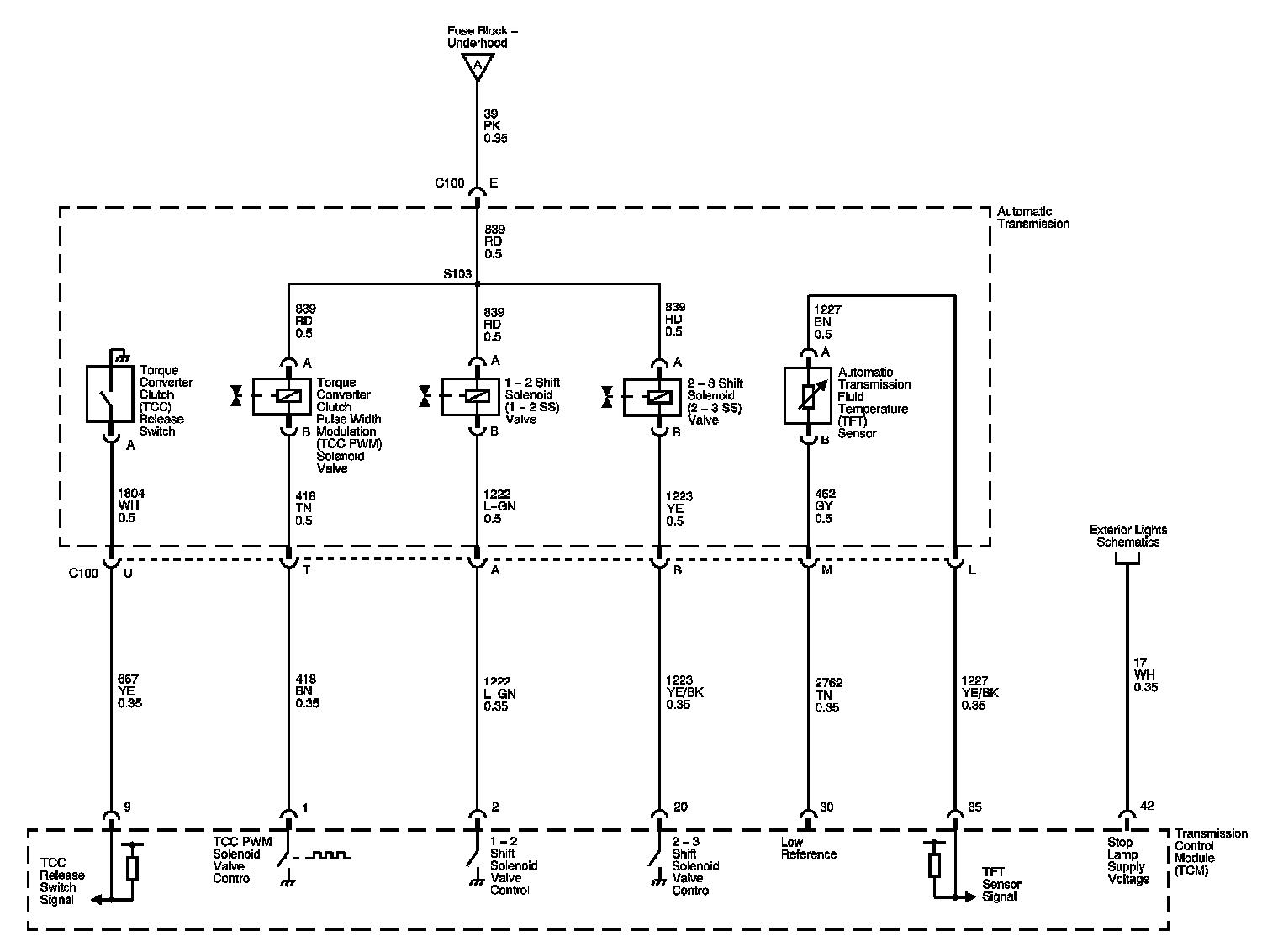

Transmission Solenoids:

ISS, Pressure Controls And VSS:

Park Neutral Position (PNP) Switch:

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
