System Diagram

Starting and Charging Schematics

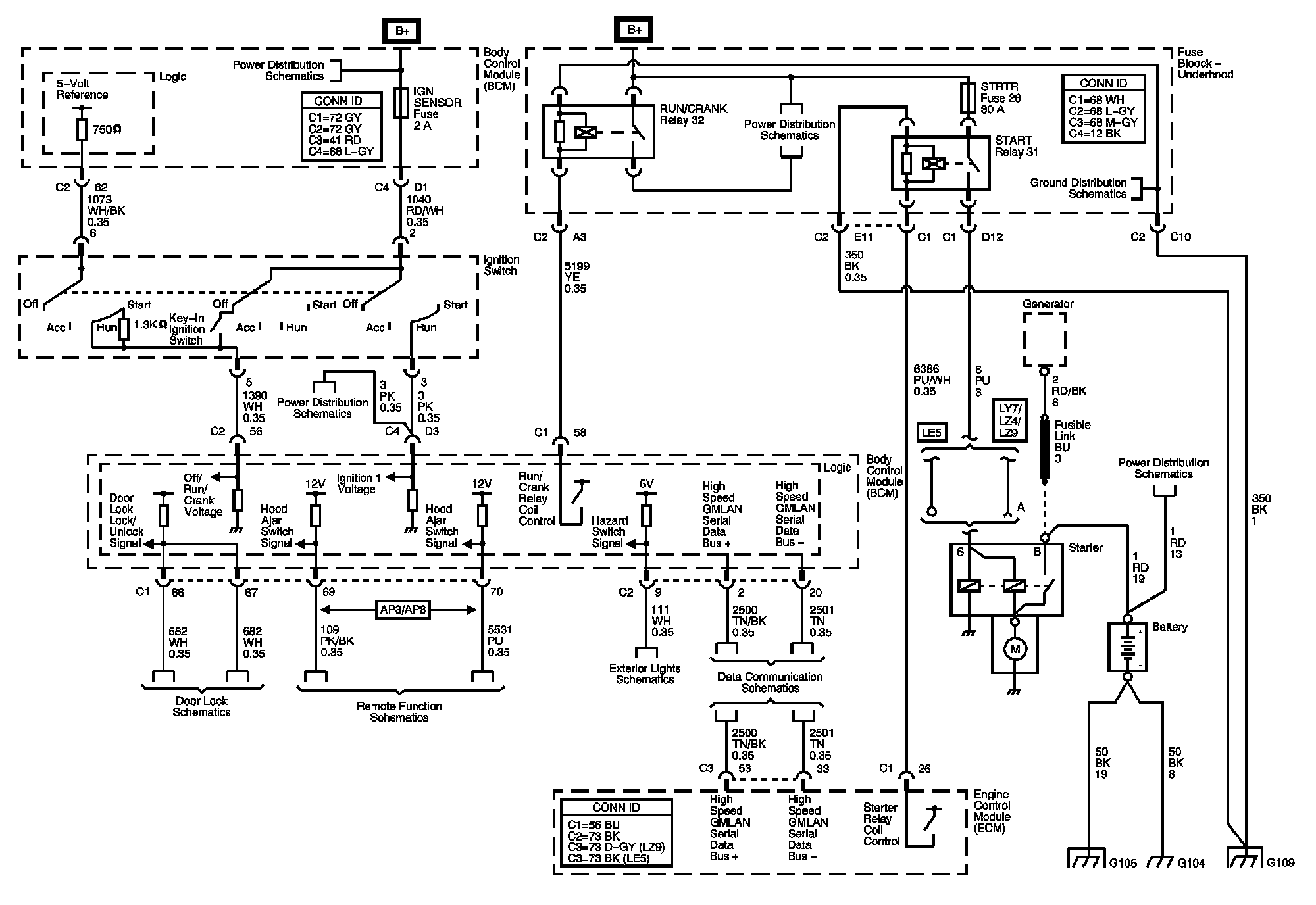

Starting System - LE5/LY7

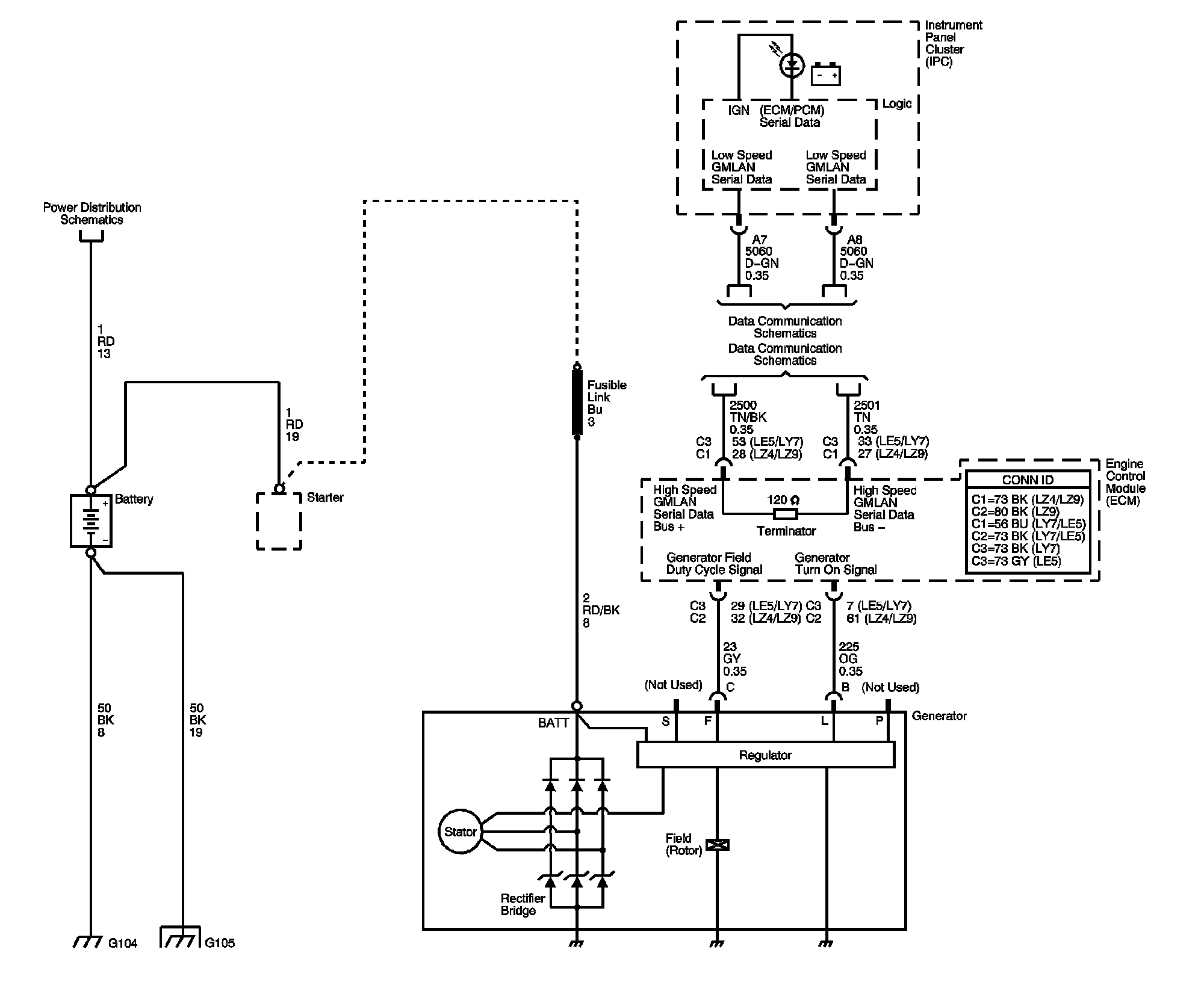

Charging System






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
