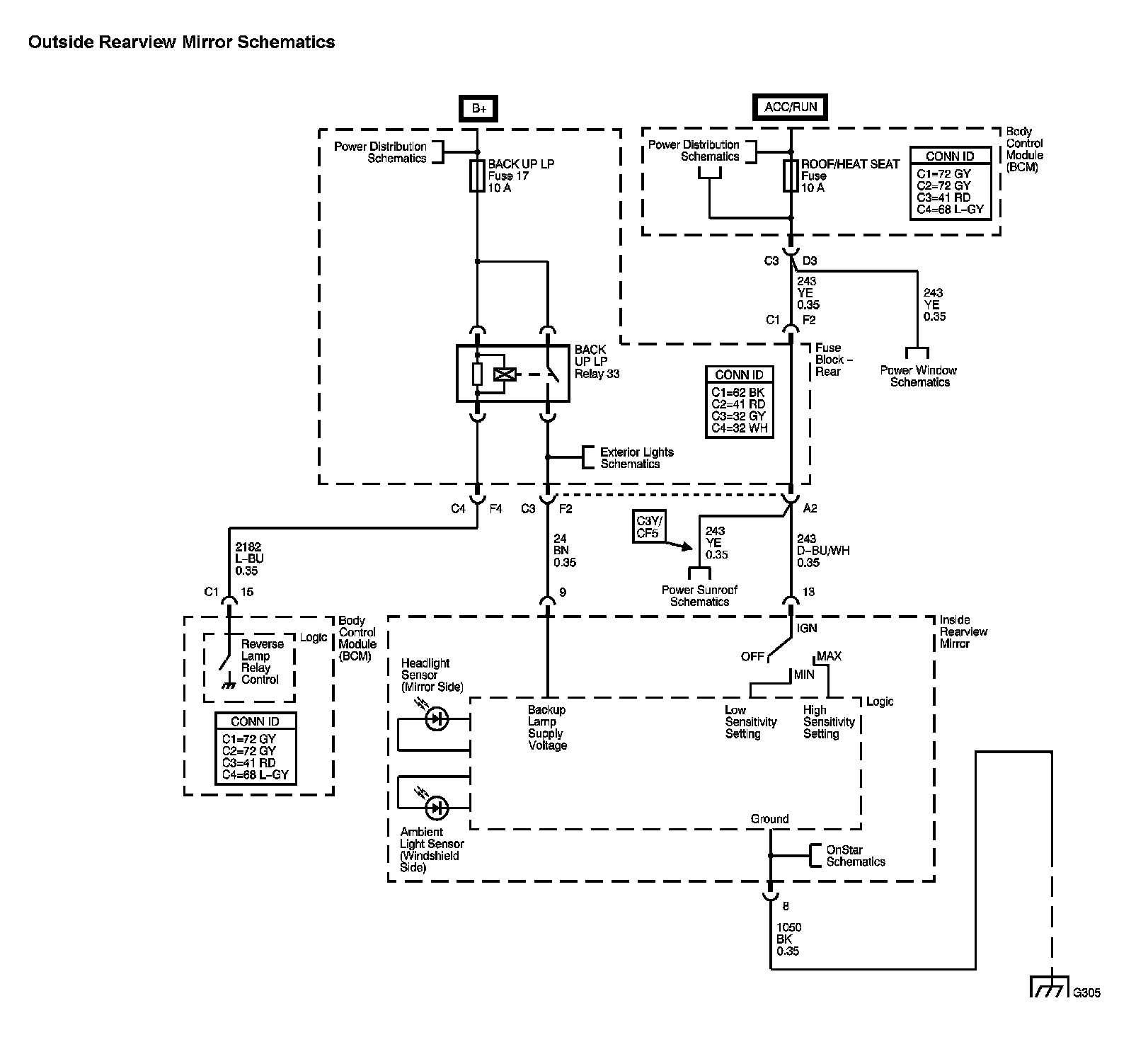

Outside Rearview Mirror Schematics

Outside Rearview Mirror Diagram:

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
