Instrument Cluster Schematics



Instrument Cluster Schematics

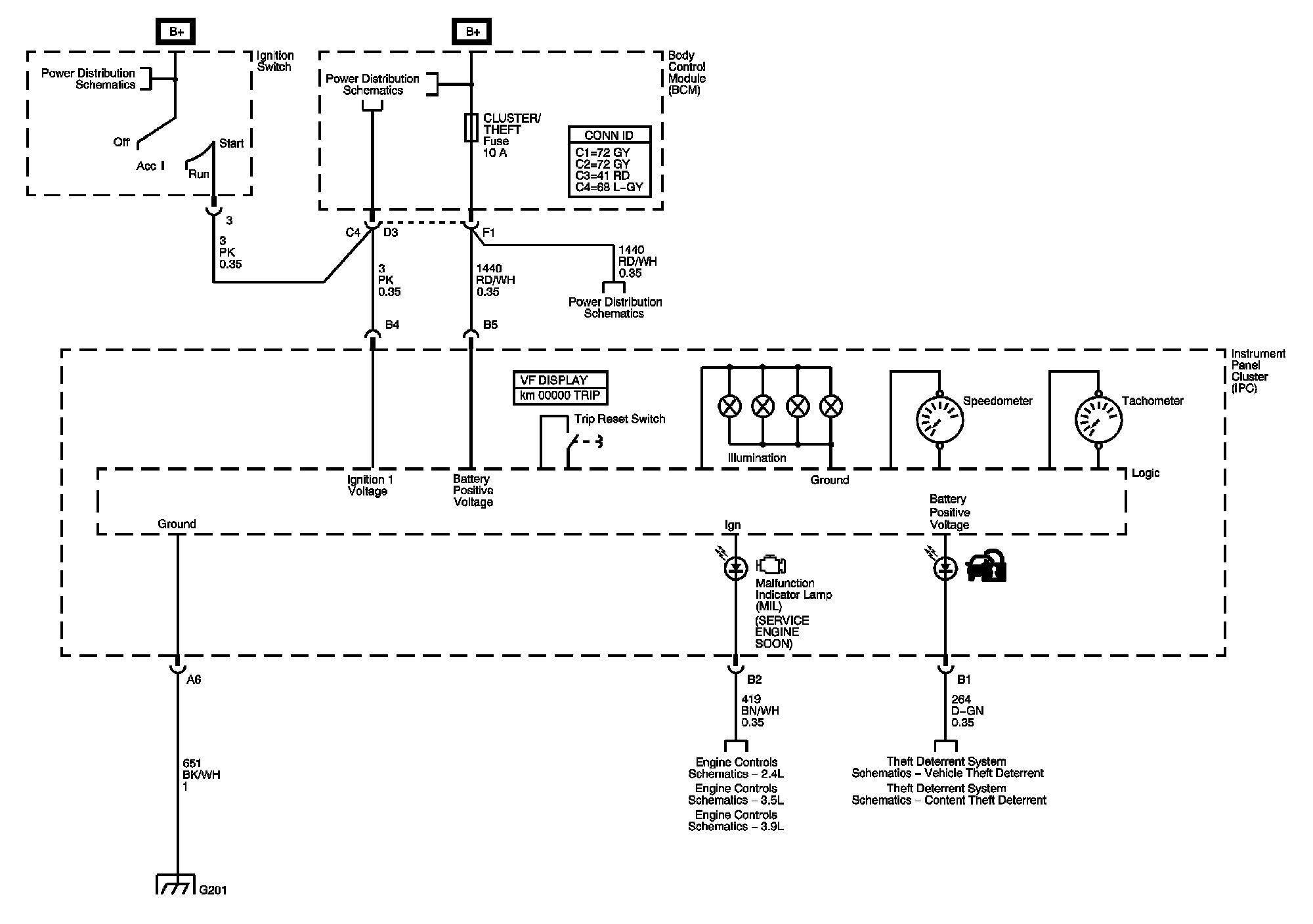

Power, Ground and Illumination

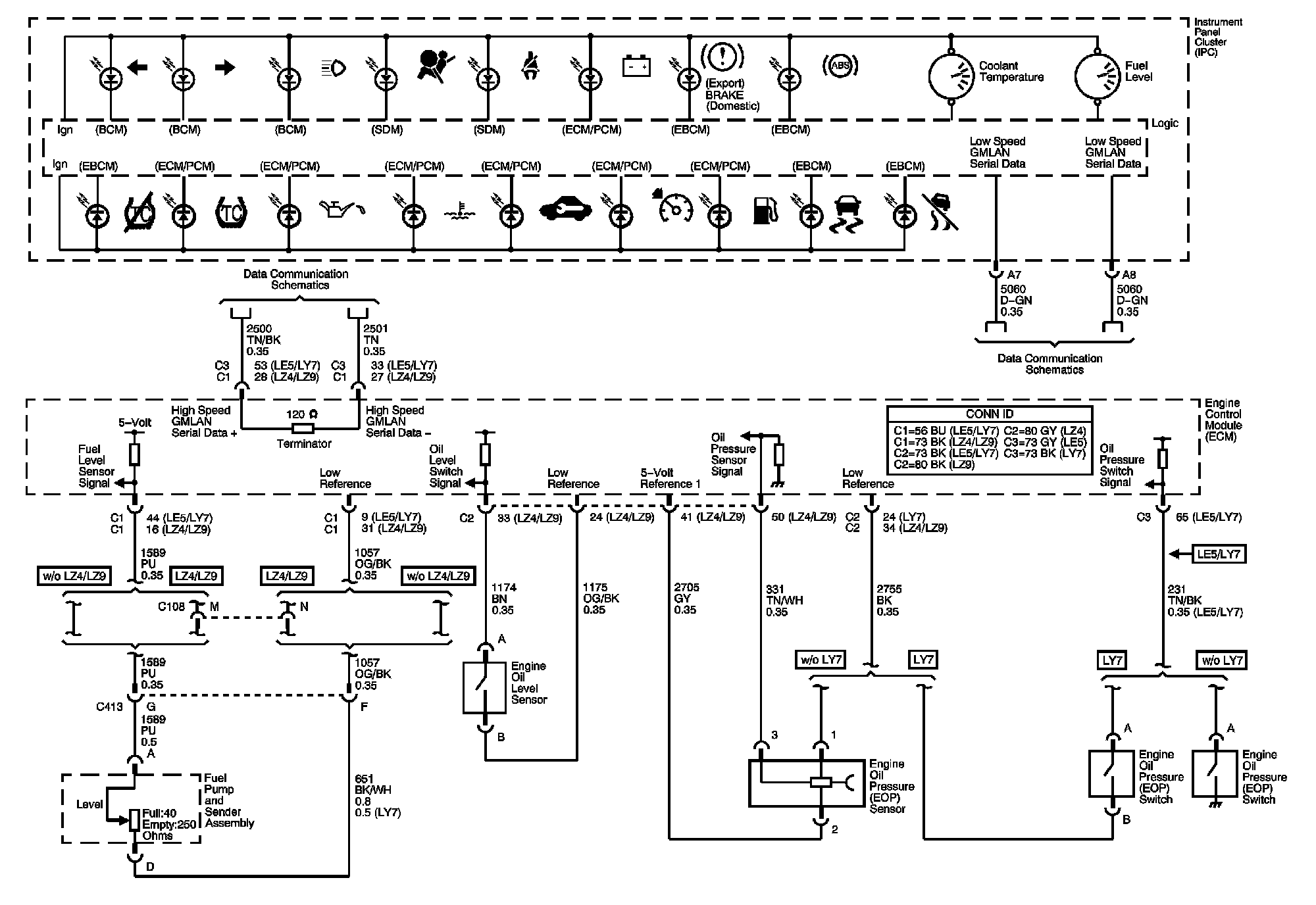

Indicators






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
