HVAC - Manual

HVAC Schematics

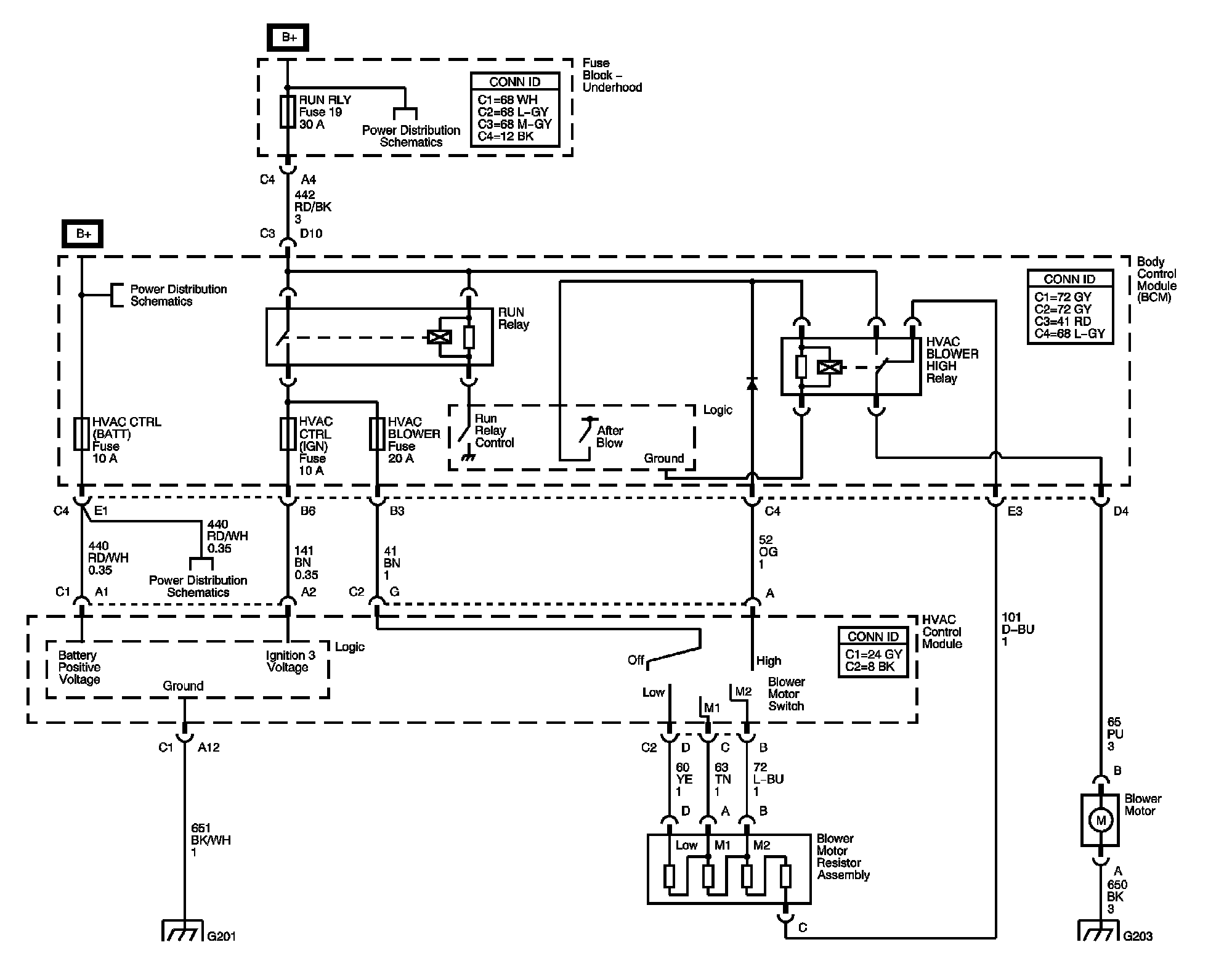

Blower Motor Controls, Ground and Power

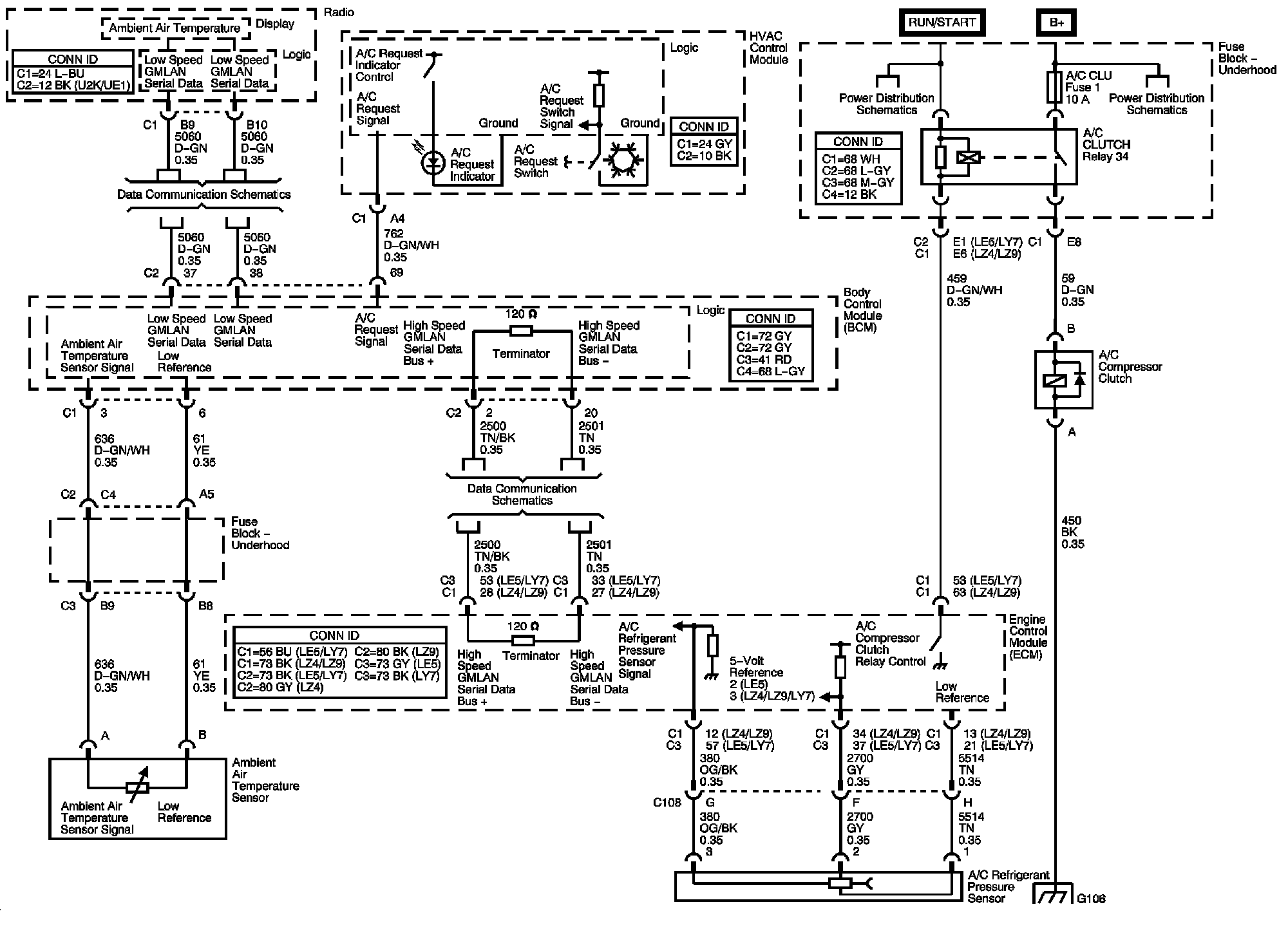

Ambient Air Temperature Sensor and Compressor Controls

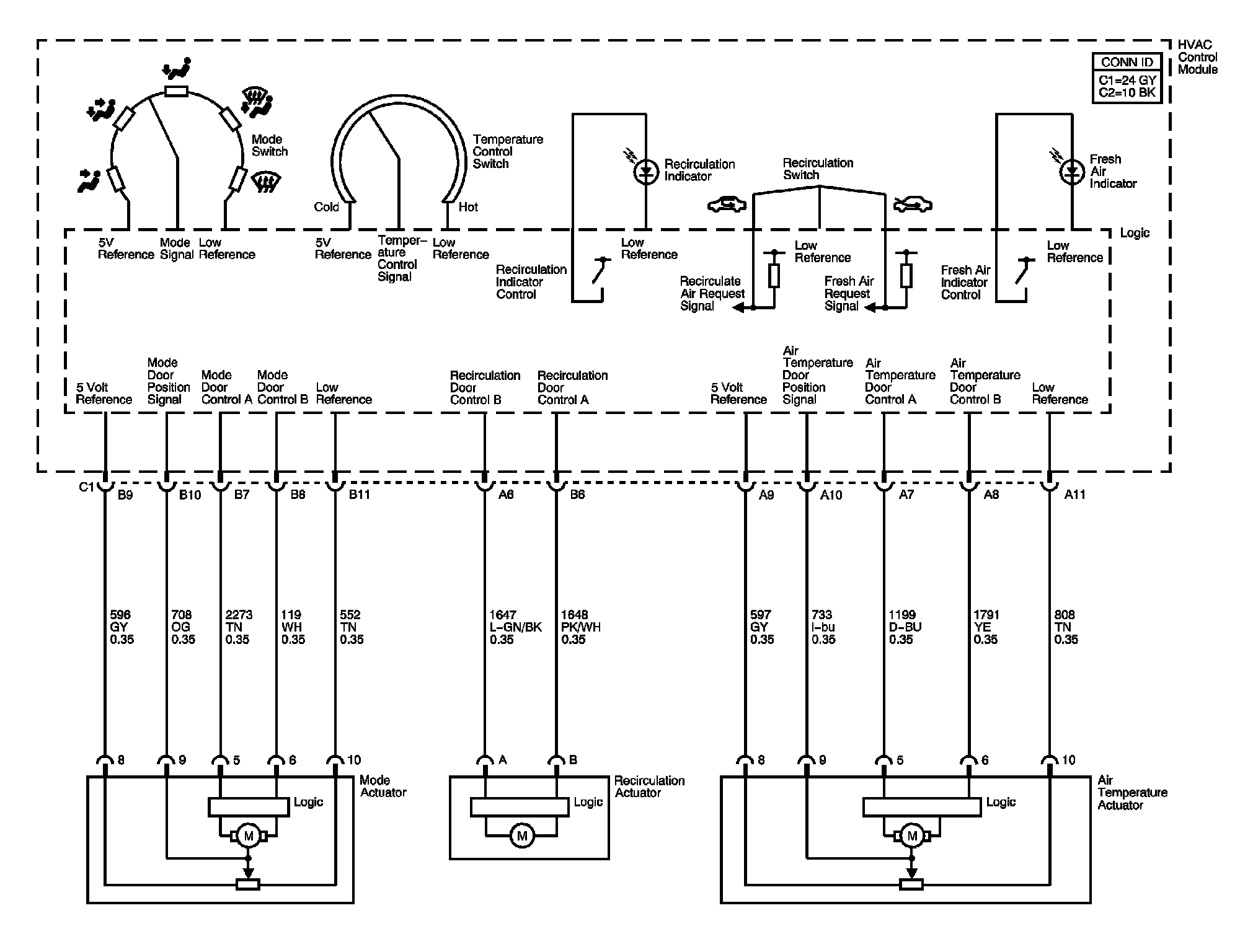

Air Temperature and Mode Controls






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
