Antilock Brakes / Traction Control Systems

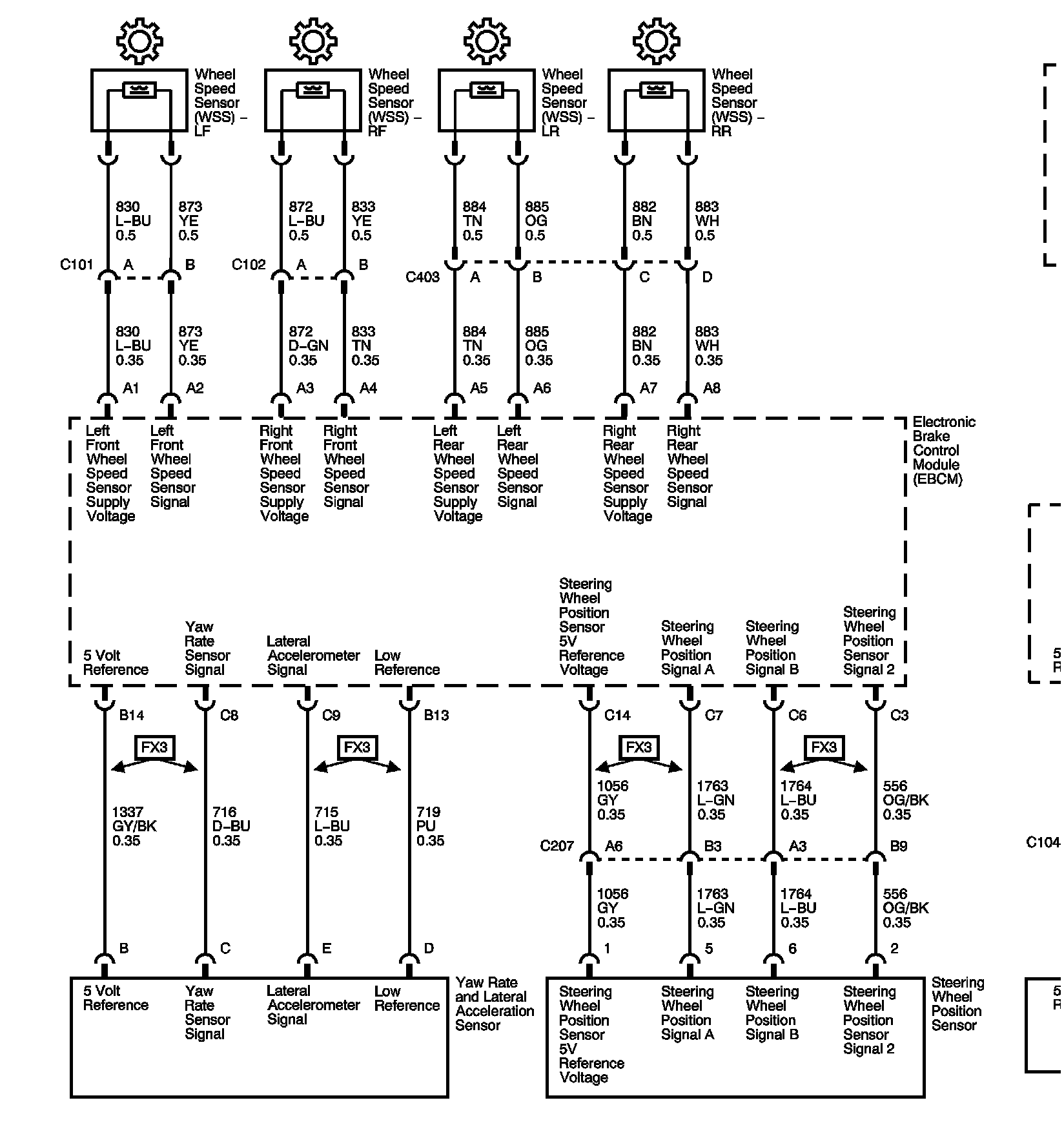

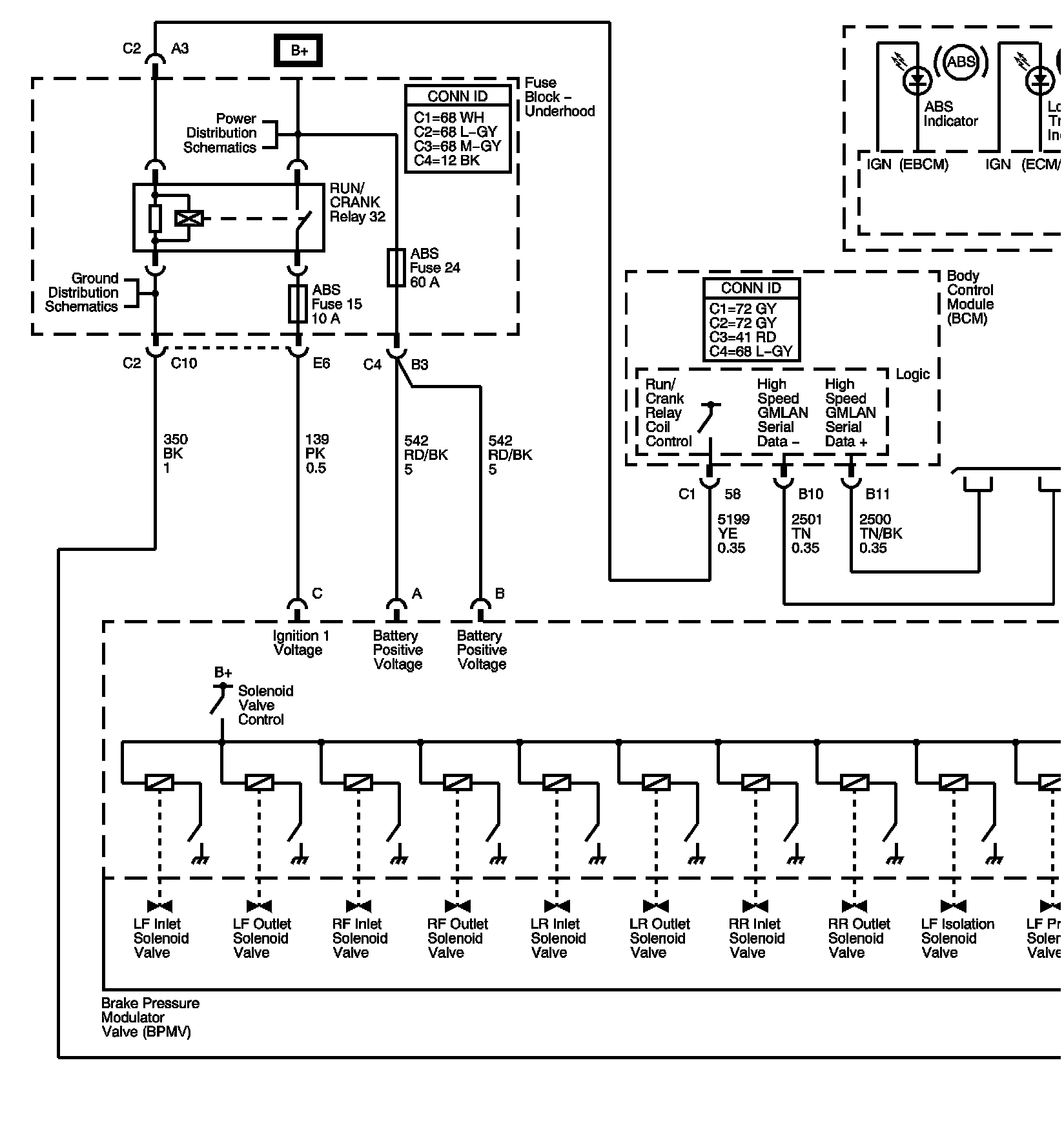

Antilock Brake System Schematics

q�6:

��6:

̼�6:

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
