Steering Wheel Secondary/Configurable Control Schematics



Steering Wheel Secondary/Configurable Control Schematics

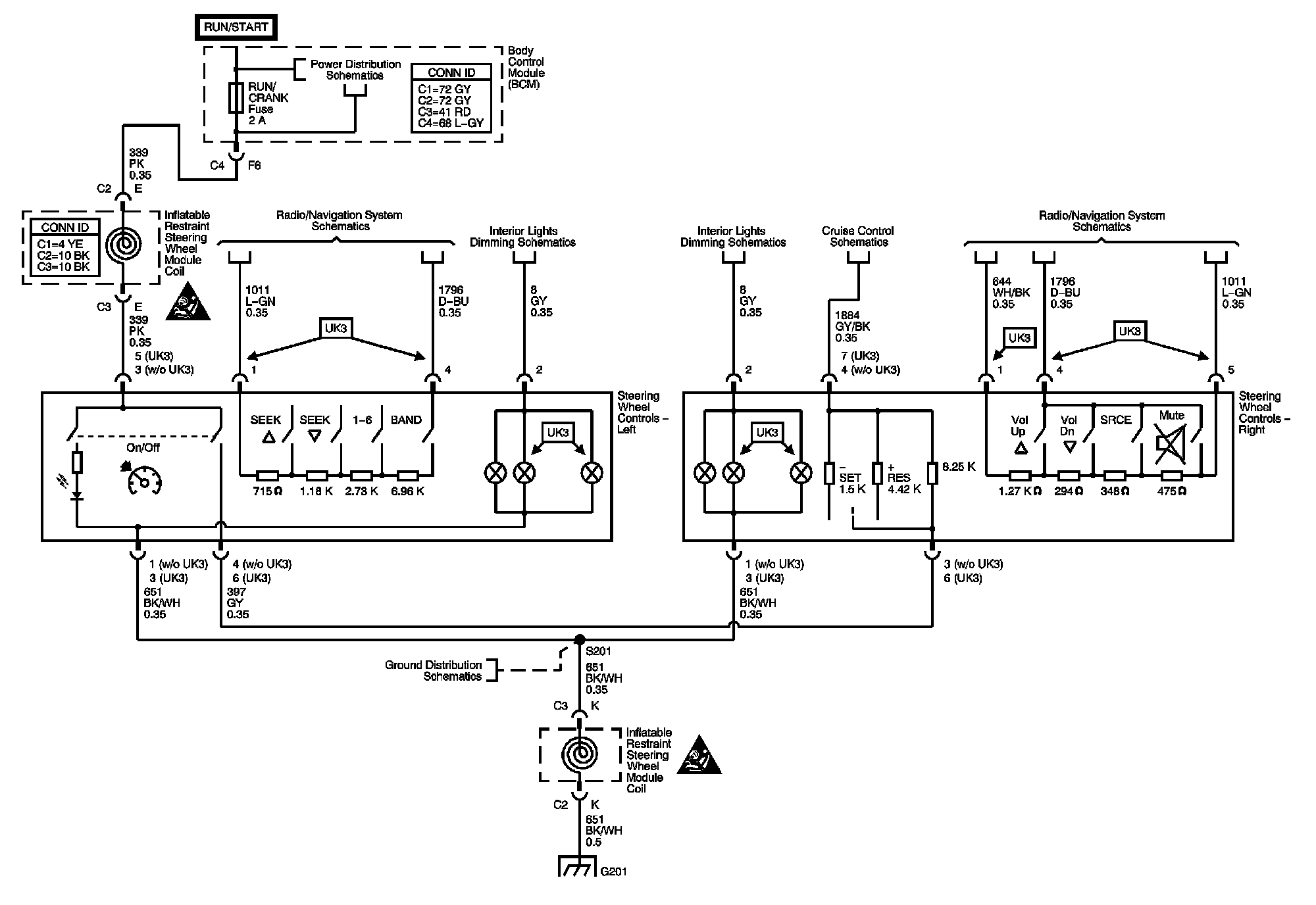

3-Spoke

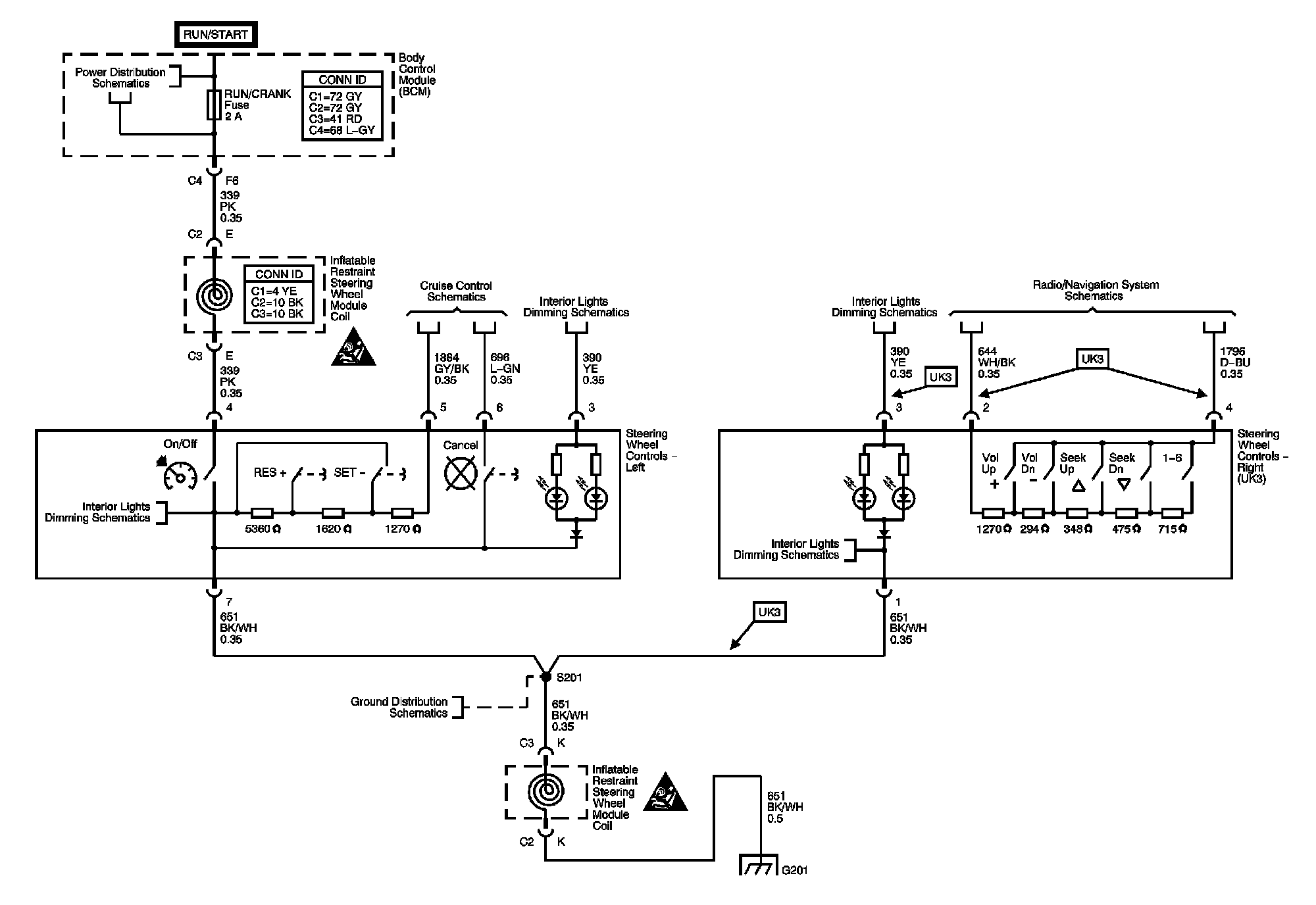

4-Spoke






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
