Home >> Pontiac >> 2007 >> G6 L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Pedal Positioning Motor

Pedal Positioning Motor

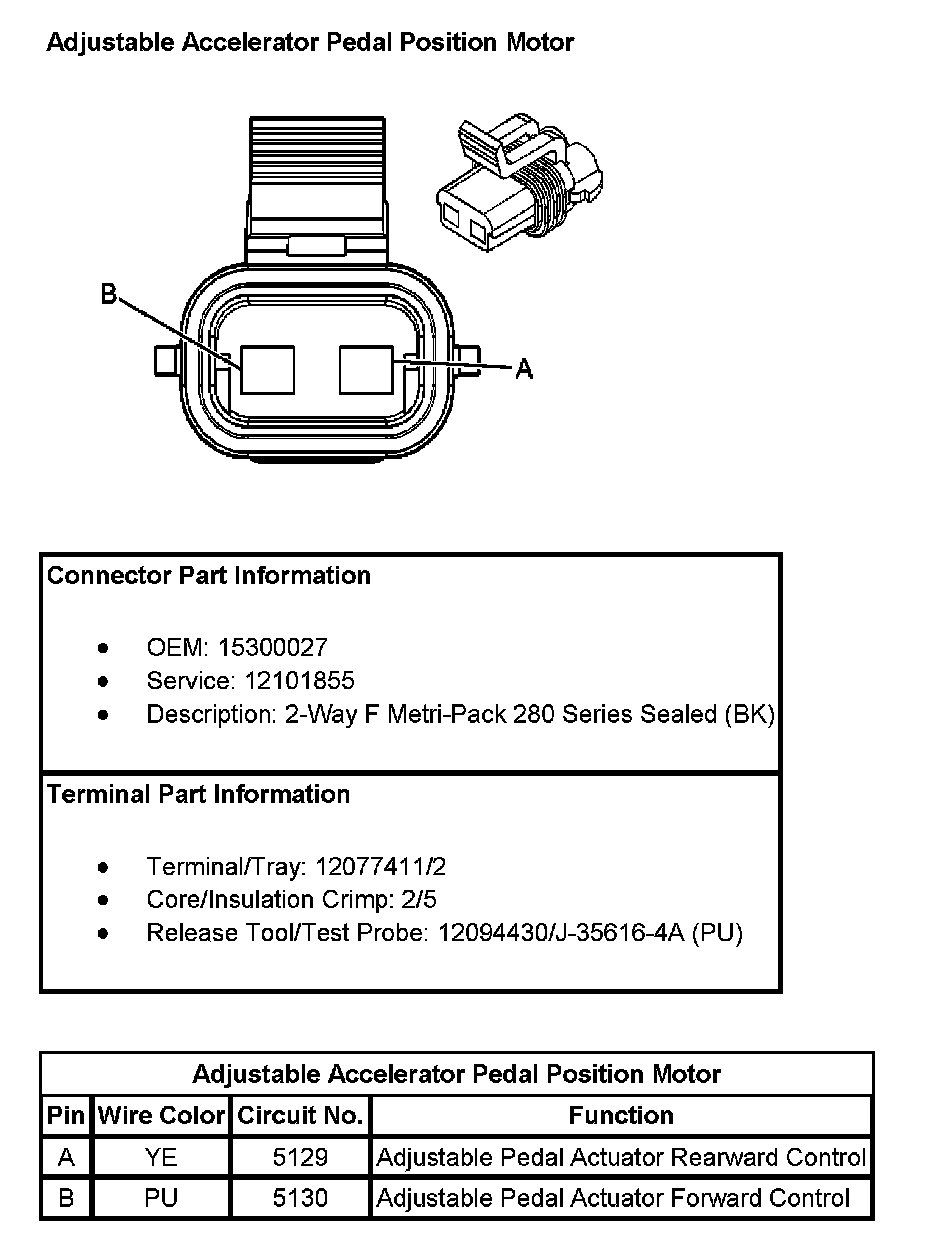

Adjustable Accelerator Pedal Position Motor:
