C601
C601

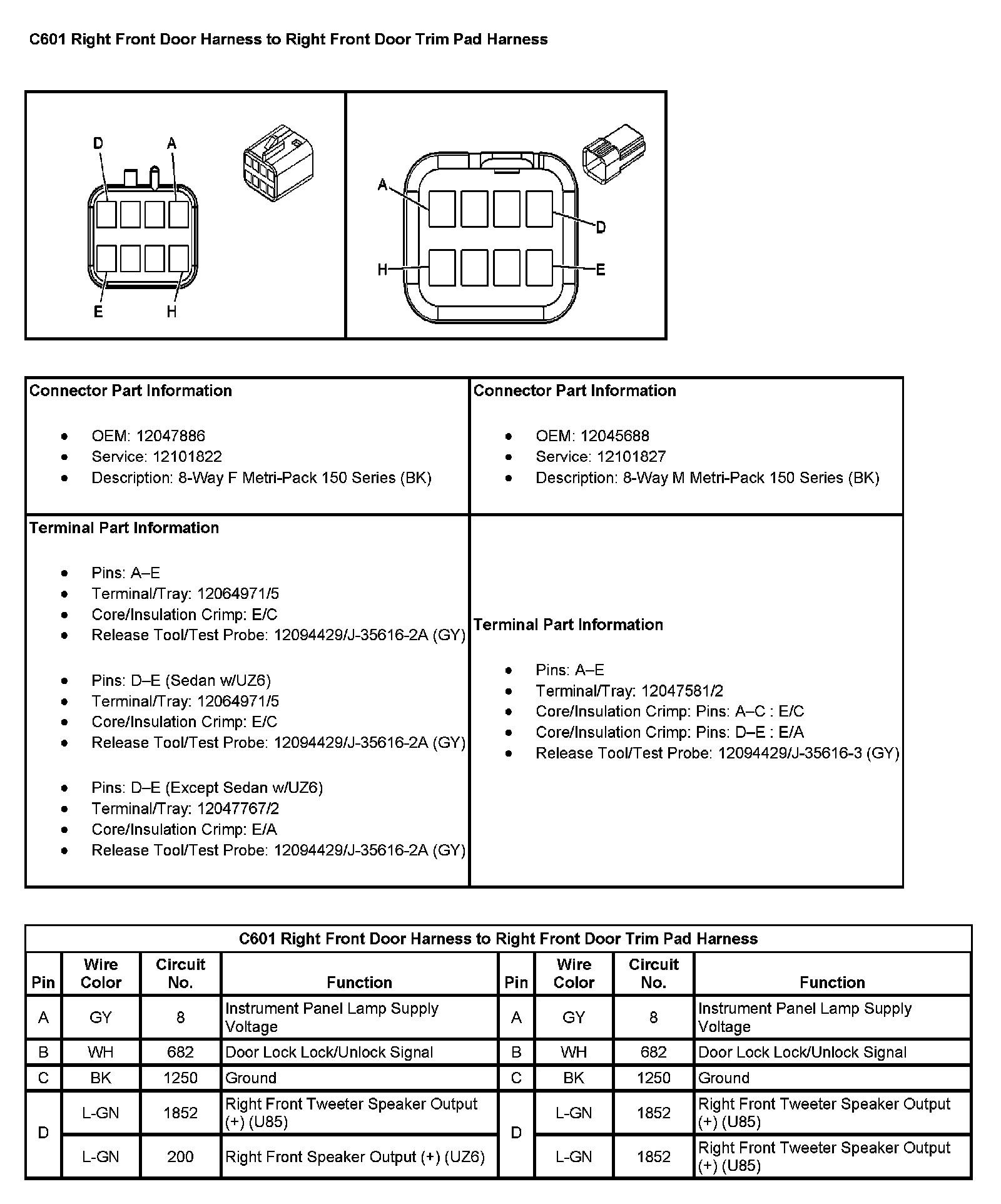

C601 Right Front Door Harness To Right Front Door Trim Pad Harness (Pin A To D):
C601 Right Front Door Harness To Right Front Door Trim Pad Harness (Pin E To H):
