C600
C600

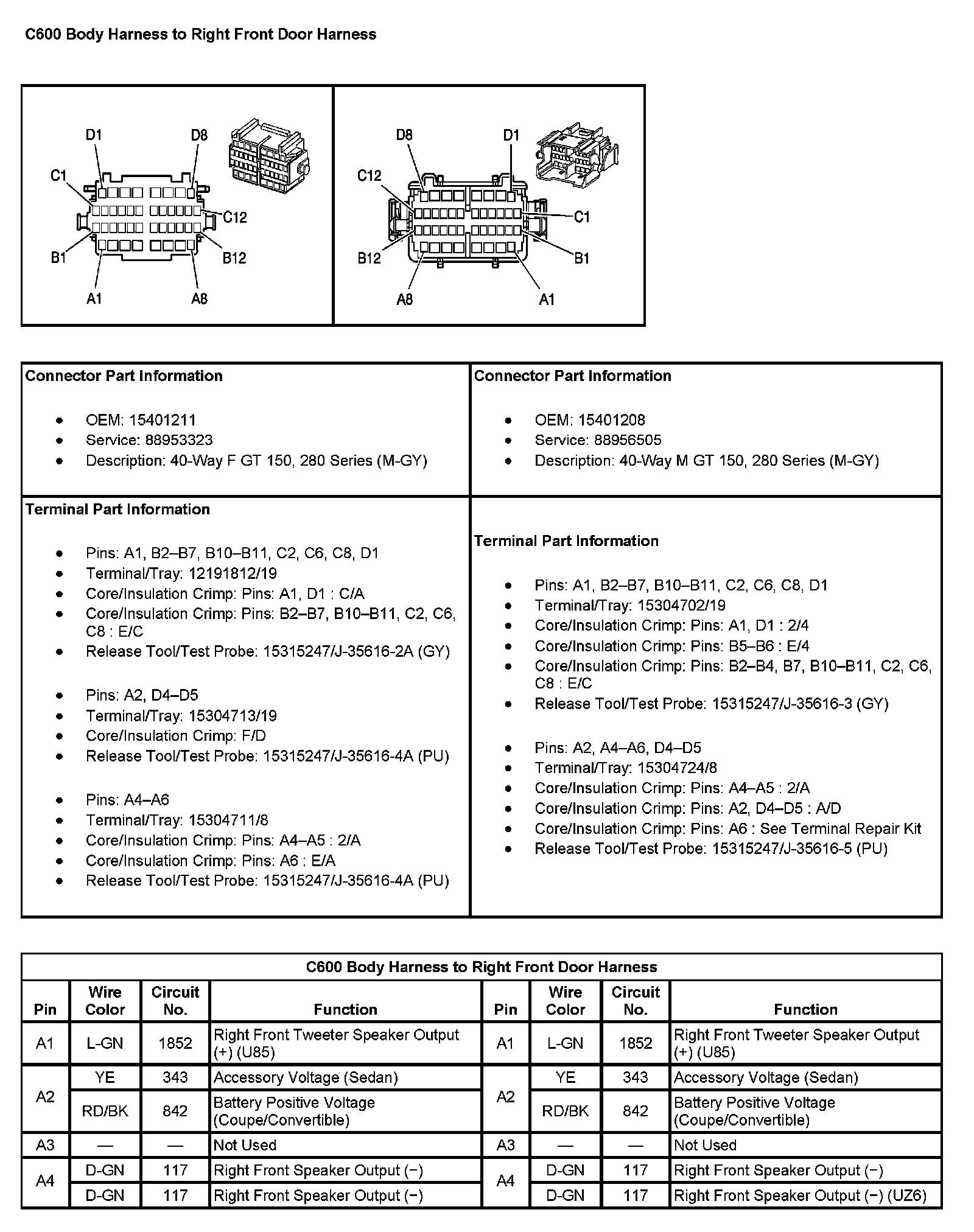

C600 Body Harness To Right Front Door Harness (Pin A1 To A4):

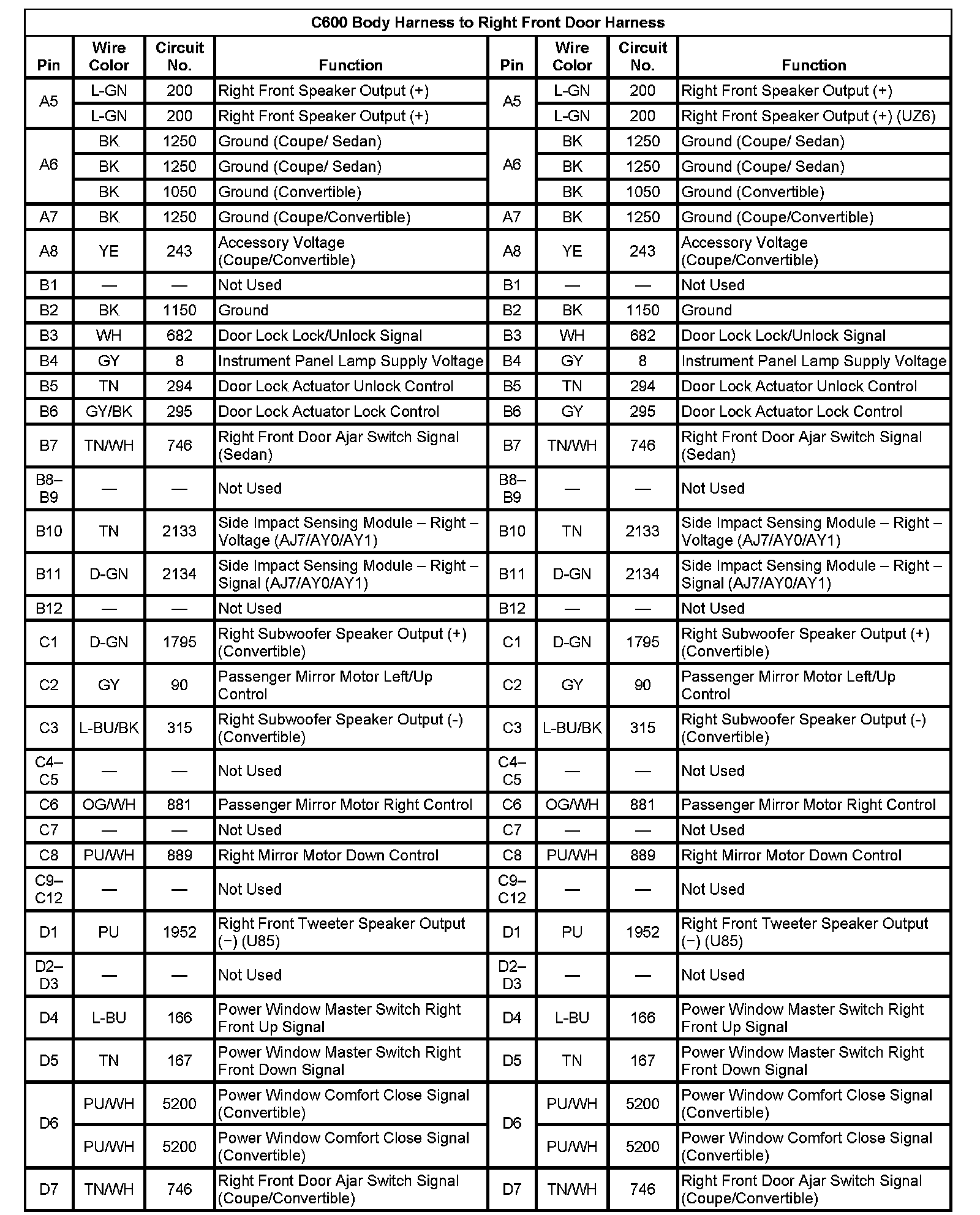

C600 Body Harness To Right Front Door Harness (Pin A5 To D7):
C600 Body Harness To Right Front Door Harness (Pin D8):
