C501
C501

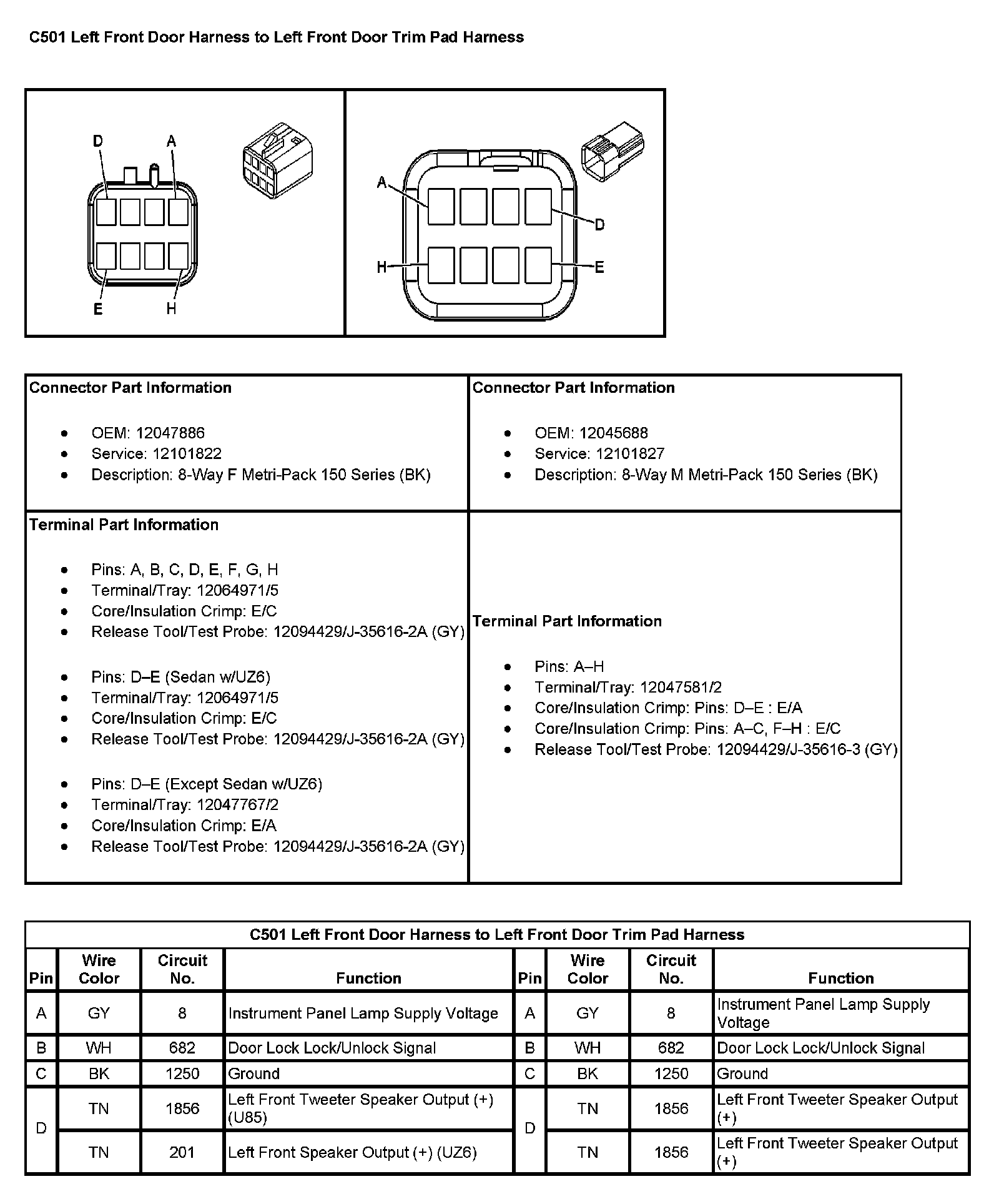

C501 Left Front Door Harness To Left Front Door Trim Pad Harness (Pin A To D):
C501 Left Front Door Harness To Left Front Door Trim Pad Harness (Pin E To H):
