Multiple Junction Connector
>>
C400 - C499
>>
C401
C401

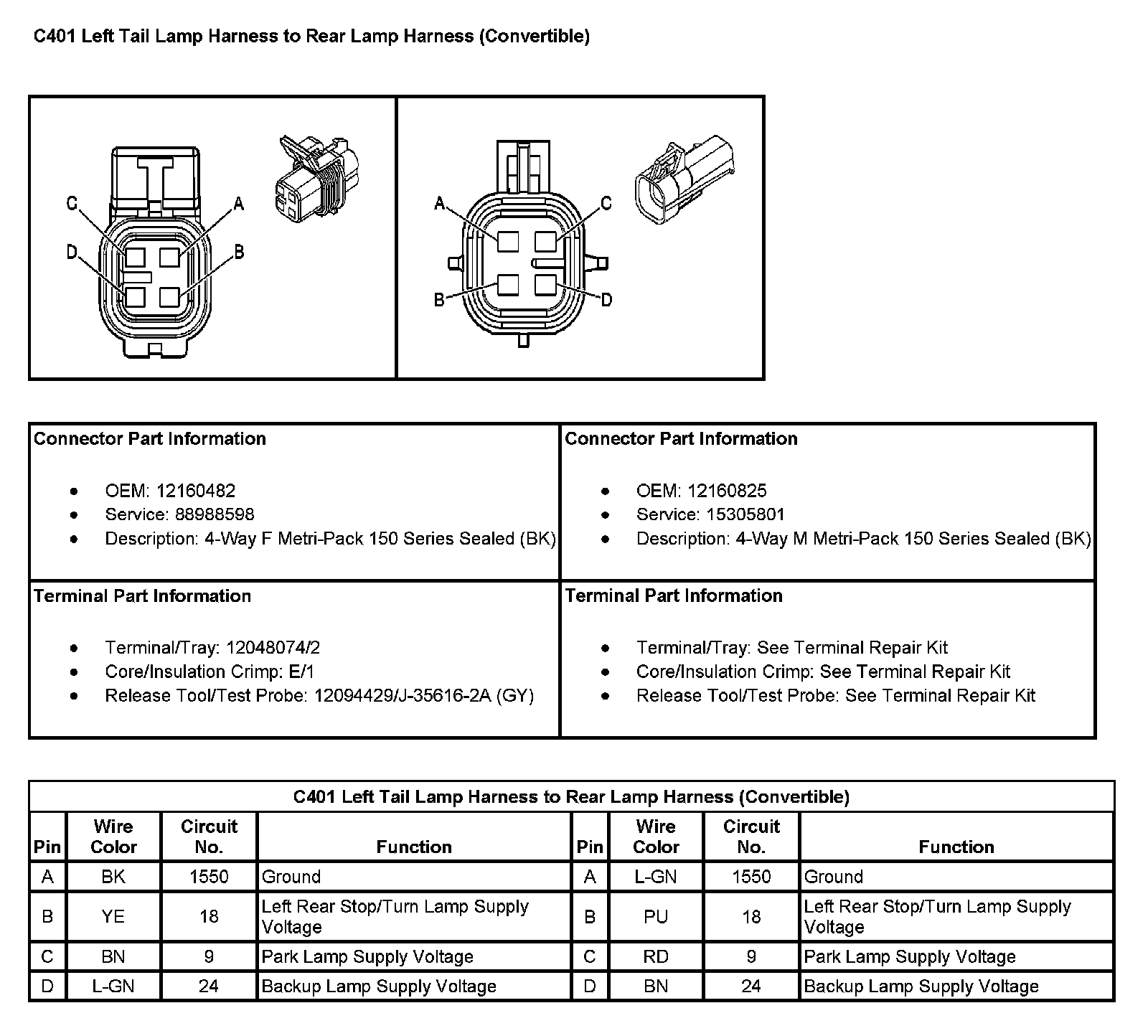

C401 Left Tail Lamp Harness To Rear Lamp Harness (Convertible) (Pin A To D):

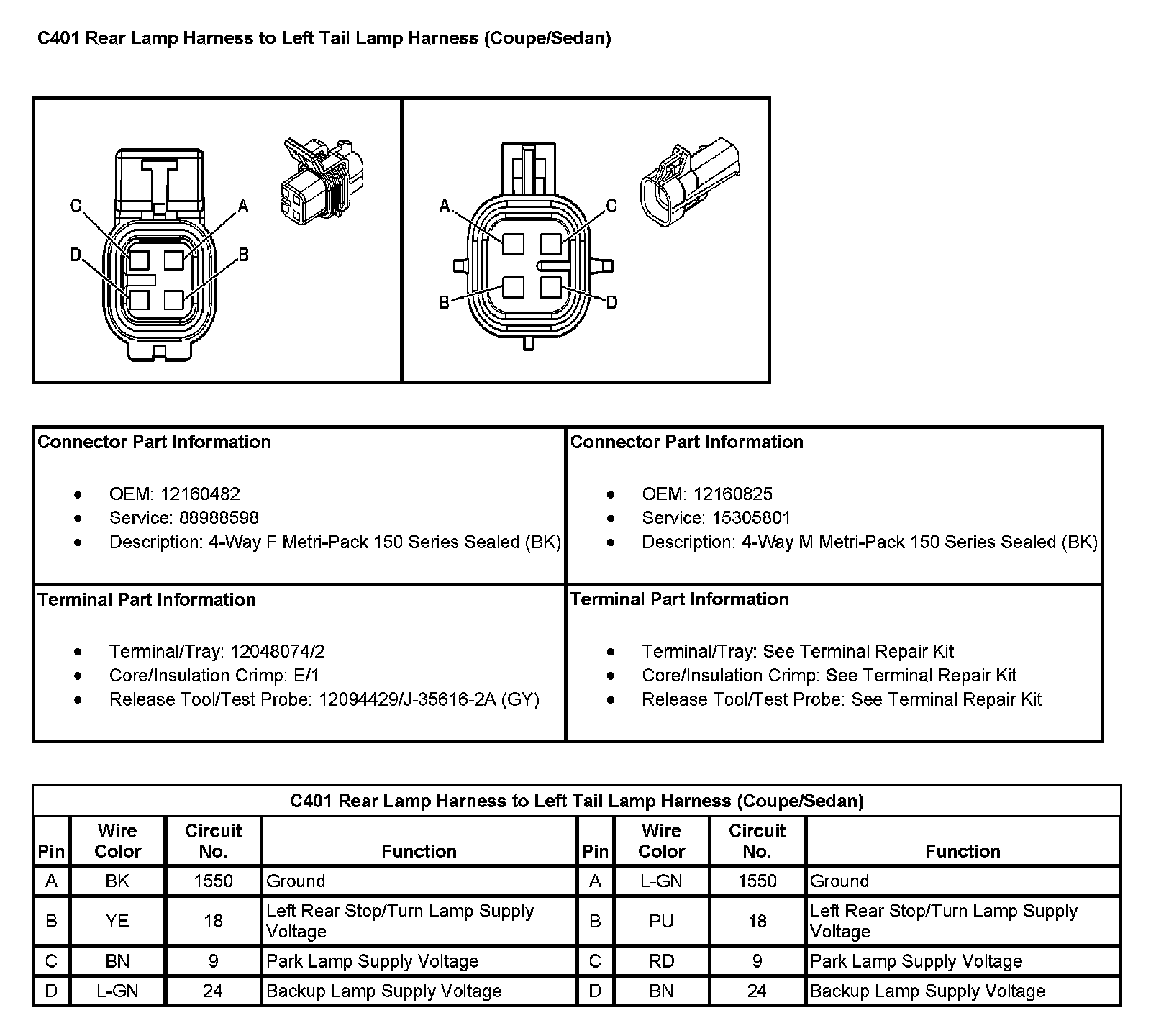

C401 Rear Lamp Harness To Left Tail Lamp Harness (Coupe/Sedan) (pin A To D):
