Home >> Pontiac >> 2007 >> G6 L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Multiple Junction Connector >> C300 - C399 >> C319

C319

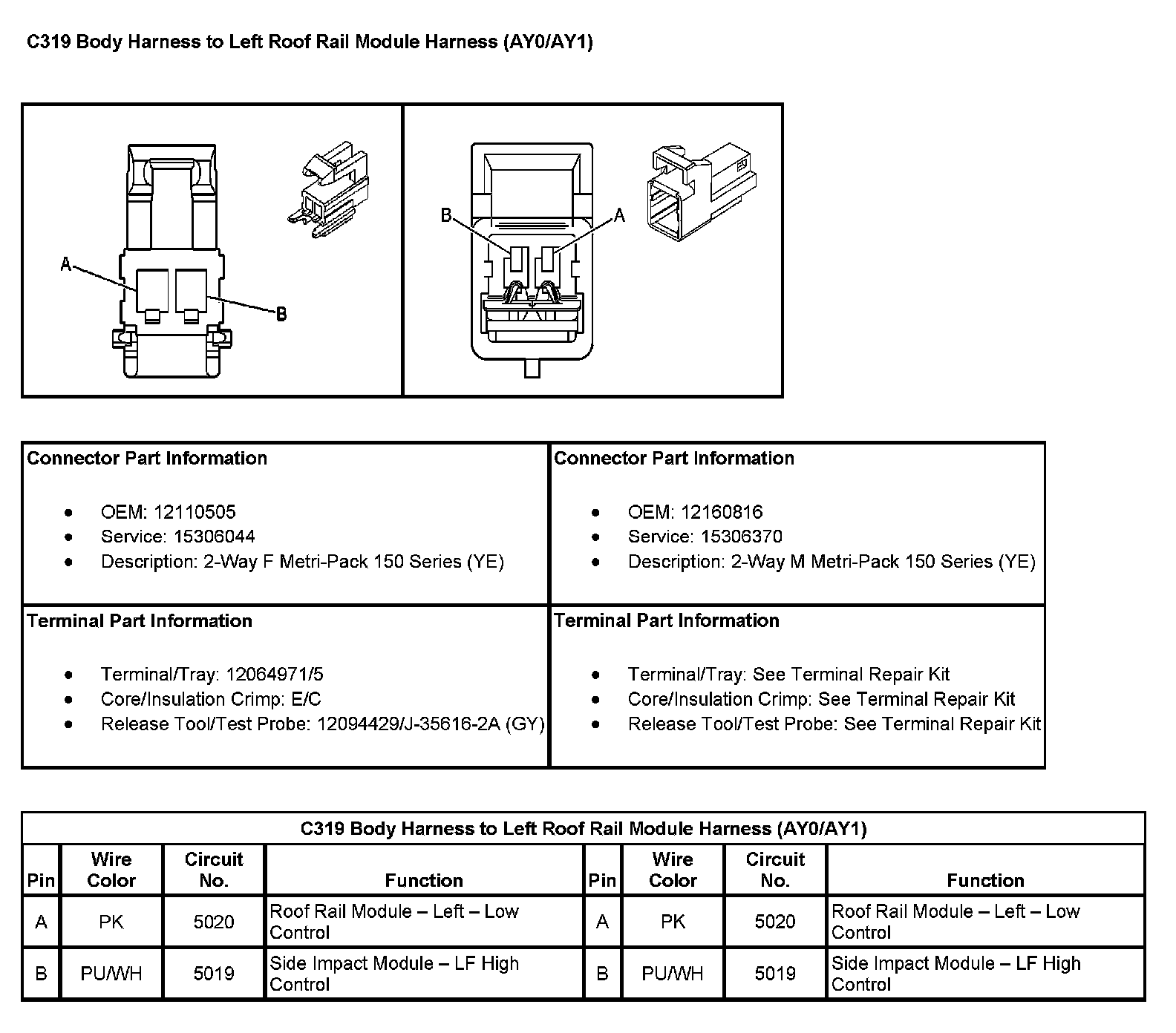

C319 Body Harness To Left Roof Rail Module Harness (With RPO Codes AY0/AY1) (Pin A To B):
