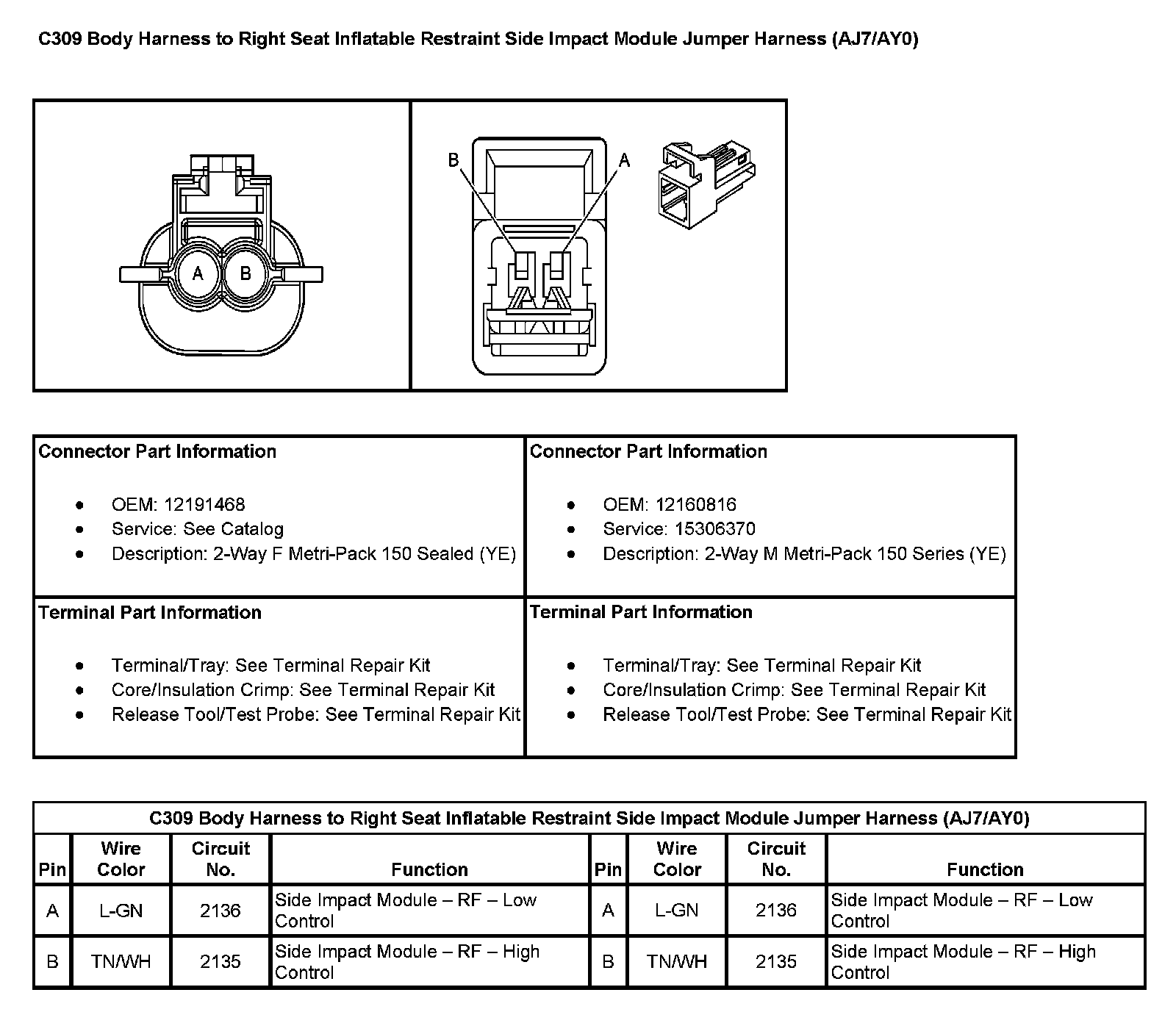

C309 Body Harness To Right Seat Inflatable Restraint Side Impact Module Jumper Harness (With RPO Codes AJ7/AY0) (Pin A To B):
