Pontiac
>>
2007
>>
G6 L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C300 - C399
>>
C308
C308

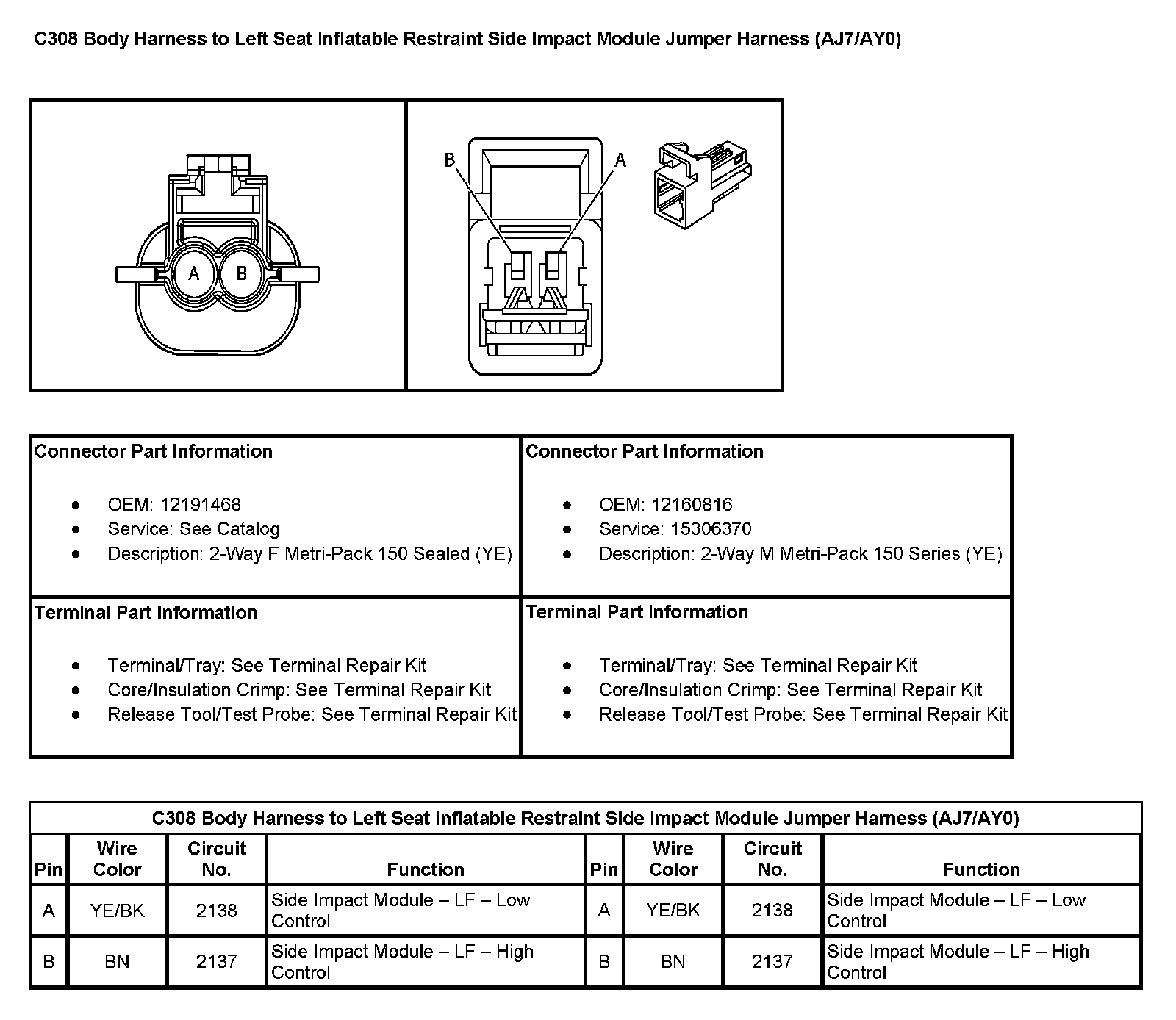

C308 Body Harness To Left Seat Inflatable Restraint Side Impact Module Jumper Harness (With RPO Codes AJ7/AY0) (Pin A To B):
